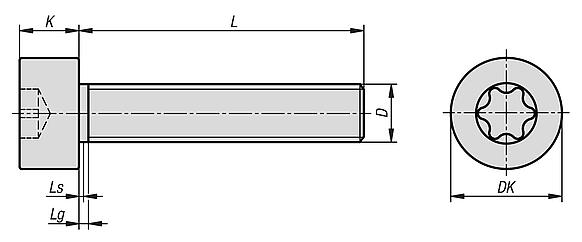

K2546Socket head screws with hexalobular socket DIN EN ISO 14579 |
go back |
|

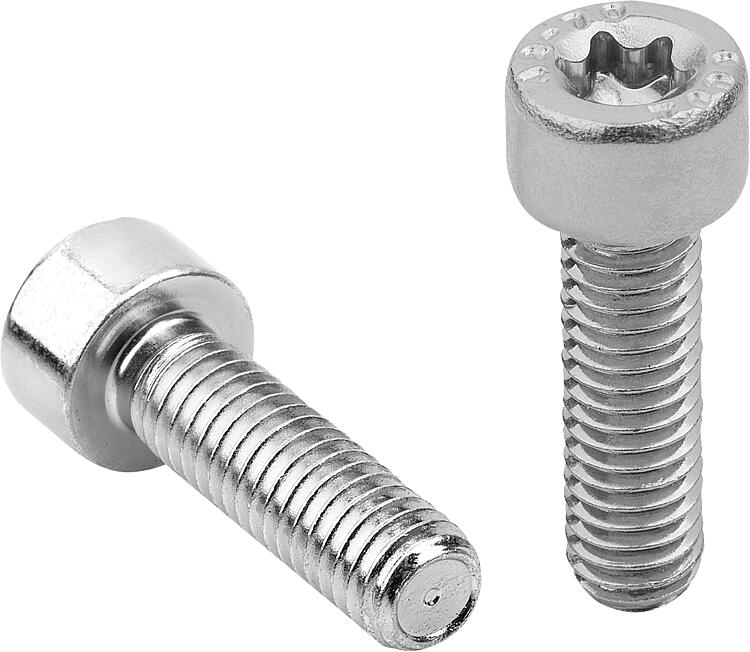

Item description/product images |
|
|
DescriptionMaterial:Steel or stainless steel A2.Version:Steel grade 8.8, electro zinc-plated.
Stainless steel A2-70, brightSpecial features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

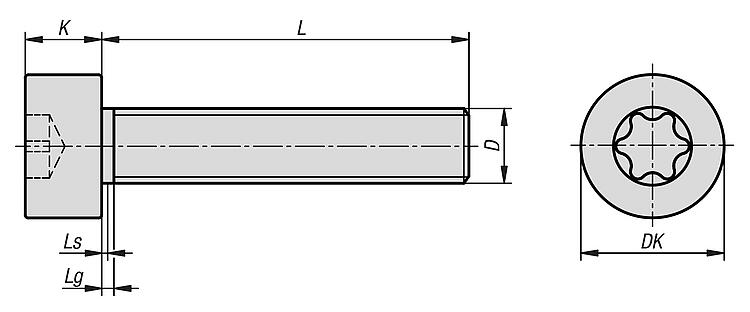

| Order No. | Main
material | D | DK | Grade | K | L | Lg
max. | Ls
min. | TX=Internal drive | CAD | Acc. | Price | Order |
|---|
| K2546.404X10 | steel | M4 | 7 | 8.8 | 4 | 10 | 2,1 | 0 | 20 |  | | on request | | | K2546.404X12 | steel | M4 | 7 | 8.8 | 4 | 12 | 2,1 | 0 | 20 | | | on request | | | K2546.404X16 | steel | M4 | 7 | 8.8 | 4 | 16 | 2,1 | 0 | 20 | | | on request | | | K2546.404X20 | steel | M4 | 7 | 8.8 | 4 | 20 | 2,1 | 0 | 20 | | | on request | | | K2546.404X25 | steel | M4 | 7 | 8.8 | 4 | 25 | 2,1 | 0 | 20 | | | on request | | | K2546.405X10 | steel | M5 | 8,5 | 8.8 | 5 | 10 | 2,4 | 0 | 25 | | | on request | | | K2546.405X12 | steel | M5 | 8,5 | 8.8 | 5 | 12 | 2,4 | 0 | 25 | | | on request | | | K2546.405X16 | steel | M5 | 8,5 | 8.8 | 5 | 16 | 2,4 | 0 | 25 | | | on request | | | K2546.405X20 | steel | M5 | 8,5 | 8.8 | 5 | 20 | 2,4 | 0 | 25 | | | on request | | | K2546.405X25 | steel | M5 | 8,5 | 8.8 | 5 | 25 | 2,4 | 0 | 25 | | | on request | | | K2546.406X16 | steel | M6 | 10 | 8.8 | 6 | 16 | 3 | 0 | 30 | | | on request | | | K2546.406X20 | steel | M6 | 10 | 8.8 | 6 | 20 | 3 | 0 | 30 | | | on request | | | K2546.104X10 | stainless steel A2 | M4 | 7 | 70 | 4 | 10 | 2,1 | 0 | 20 | | | on request | | | K2546.104X12 | stainless steel A2 | M4 | 7 | 70 | 4 | 12 | 2,1 | 0 | 20 | | | on request | | | K2546.104X16 | stainless steel A2 | M4 | 7 | 70 | 4 | 16 | 2,1 | 0 | 20 | | | on request | | | K2546.104X20 | stainless steel A2 | M4 | 7 | 70 | 4 | 20 | 2,1 | 0 | 20 | | | on request | | | K2546.104X25 | stainless steel A2 | M4 | 7 | 70 | 4 | 25 | 2,1 | 0 | 20 | | | on request | | | K2546.105X10 | stainless steel A2 | M5 | 8,5 | 70 | 5 | 10 | 2,4 | 0 | 25 | | | on request | | | K2546.105X12 | stainless steel A2 | M5 | 8,5 | 70 | 5 | 12 | 2,4 | 0 | 25 | | | on request | | | K2546.105X16 | stainless steel A2 | M5 | 8,5 | 70 | 5 | 16 | 2,4 | 0 | 25 | | | on request | | | K2546.105X20 | stainless steel A2 | M5 | 8,5 | 70 | 5 | 20 | 2,4 | 0 | 25 | | | on request | | | K2546.105X25 | stainless steel A2 | M5 | 8,5 | 70 | 5 | 25 | 2,4 | 0 | 25 | | | on request | | | K2546.106X10 | stainless steel A2 | M6 | 10 | 70 | 6 | 10 | 3 | 0 | 30 | | | on request | | | K2546.106X12 | stainless steel A2 | M6 | 10 | 70 | 6 | 12 | 3 | 0 | 30 | | | on request | | | K2546.106X16 | stainless steel A2 | M6 | 10 | 70 | 6 | 16 | 3 | 0 | 30 | | | on request | | | K2546.106X20 | stainless steel A2 | M6 | 10 | 70 | 6 | 20 | 3 | 0 | 30 | | | on request | | | K2546.106X25 | stainless steel A2 | M6 | 10 | 70 | 6 | 25 | 3 | 0 | 30 | | | on request | |
