Grub screws with flat point hexagon socket DIN 913
K0707

Grub screws with flat point hexagon socket DIN 913

go back

Item description/product images

Show/filter all items
DescriptionMaterial:Steel or stainless steel (A 2).

LONG-LOK thread lock nylon.
Version:Steel class 45 H, black.
Stainless steel A 2-70, bright.
Drawing reference:
L2 = approx. 2x thread pitch
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0707 Grub screws with flat point hexagon socket DIN 913 170 kB
 Technical information Spring plungers with LONG-LOK thread lock 2 MB

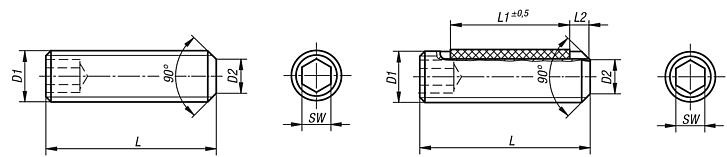

Drawings (total overview)

Grub screws with flat point hexagon socket DIN 913

Grub screws with hexagon socket and flat point
DIN 913 without LONG-LOK

More information

Drawings

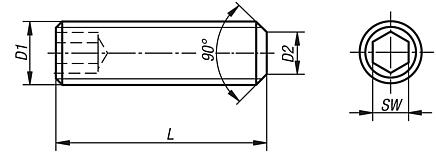

Grub screws with hexagon socket and flat point DIN 913 without LONG-LOK

Item selection/filter

Order No.Main
material
DLD1SWCADAcc.PriceOrder
K0707.03X5SteelM3521,5 on request
K0707.03X6SteelM3621,5 on request
K0707.03X8SteelM3821,5 on request
K0707.03X10SteelM31021,5 on request
K0707.03X12SteelM31221,5 on request
K0707.03X16SteelM31621,5 on request
K0707.03X20SteelM32021,5 on request
K0707.04X5SteelM452,52 on request
K0707.04X6SteelM462,52 on request
K0707.04X8SteelM482,52 on request
K0707.04X10SteelM4102,52 on request
K0707.04X12SteelM4122,52 on request
K0707.04X16SteelM4162,52 on request
K0707.04X20SteelM4202,52 on request
K0707.04X25SteelM4252,52 on request
K0707.05X5SteelM553,52,5 on request
K0707.05X6SteelM563,52,5 on request
K0707.05X8SteelM583,52,5 on request
K0707.05X10SteelM5103,52,5 on request
K0707.05X12SteelM5123,52,5 on request
K0707.05X16SteelM5163,52,5 on request
K0707.05X20SteelM5203,52,5 on request
K0707.05X25SteelM5253,52,5 on request
K0707.05X30SteelM5303,52,5 on request
K0707.06X6SteelM6643 on request
K0707.06X8SteelM6843 on request
K0707.06X10SteelM61043 on request
K0707.06X12SteelM61243 on request
K0707.06X16SteelM61643 on request
K0707.06X20SteelM62043 on request
K0707.06X25SteelM62543 on request
K0707.06X30SteelM63043 on request
K0707.06X35SteelM63543 on request
K0707.06X40SteelM64043 on request
K0707.06X45SteelM64543 on request
K0707.06X50SteelM65043 on request
K0707.06X60SteelM66043 on request
K0707.08X8SteelM885,54 on request
K0707.08X10SteelM8105,54 on request
K0707.08X12SteelM8125,54 on request
K0707.08X16SteelM8165,54 on request
K0707.08X20SteelM8205,54 on request
K0707.08X25SteelM8255,54 on request
K0707.08X30SteelM8305,54 on request
K0707.08X35SteelM8355,54 on request
K0707.08X40SteelM8405,54 on request
K0707.08X45SteelM8455,54 on request
K0707.08X50SteelM8505,54 on request
K0707.08X60SteelM8605,54 on request
K0707.08X70SteelM8705,54 on request
K0707.08X80SteelM8805,54 on request
K0707.10X10SteelM101075 on request
K0707.10X12SteelM101275 on request
K0707.10X16SteelM101675 on request
K0707.10X20SteelM102075 on request
K0707.10X25SteelM102575 on request
K0707.10X30SteelM103075 on request
K0707.10X35SteelM103575 on request
K0707.10X40SteelM104075 on request
K0707.10X45SteelM104575 on request
K0707.10X50SteelM105075 on request
K0707.10X60SteelM106075 on request
K0707.10X70SteelM107075 on request
K0707.10X80SteelM108075 on request
K0707.10X90SteelM109075 on request
K0707.10X100SteelM1010075 on request
K0707.103X5Stainless steelM3521,5 on request
K0707.103X6Stainless steelM3621,5 on request
K0707.103X8Stainless steelM3821,5 on request
K0707.103X10Stainless steelM31021,5 on request
K0707.103X12Stainless steelM31221,5 on request
K0707.104X5Stainless steelM452,52 on request
K0707.104X6Stainless steelM462,52 on request
K0707.104X8Stainless steelM482,52 on request
K0707.104X10Stainless steelM4102,52 on request
K0707.104X12Stainless steelM4122,52 on request
K0707.104X16Stainless steelM4162,52 on request
K0707.104X20Stainless steelM4202,52 on request
K0707.105X5Stainless steelM553,52,5 on request
K0707.105X6Stainless steelM563,52,5 on request
K0707.105X8Stainless steelM583,52,5 on request
K0707.105X10Stainless steelM5103,52,5 on request
K0707.105X12Stainless steelM5123,52,5 on request
K0707.105X16Stainless steelM5163,52,5 on request
K0707.105X20Stainless steelM5203,52,5 on request
K0707.105X25Stainless steelM5253,52,5 on request
K0707.105X30Stainless steelM5303,52,5 on request
K0707.106X6Stainless steelM6643 on request
K0707.106X8Stainless steelM6843 on request
K0707.106X10Stainless steelM61043 on request
K0707.106X12Stainless steelM61243 on request
K0707.106X16Stainless steelM61643 on request
K0707.106X20Stainless steelM62043 on request
K0707.106X25Stainless steelM62543 on request
K0707.106X30Stainless steelM63043 on request
K0707.106X35Stainless steelM63543 on request
K0707.106X40Stainless steelM64043 on request
K0707.108X8Stainless steelM885,54 on request
K0707.108X10Stainless steelM8105,54 on request
K0707.108X12Stainless steelM8125,54 on request
K0707.108X16Stainless steelM8165,54 on request
K0707.108X20Stainless steelM8205,54 on request
K0707.108X25Stainless steelM8255,54 on request
K0707.108X30Stainless steelM8305,54 on request
K0707.108X35Stainless steelM8355,54 on request
K0707.108X40Stainless steelM8405,54 on request
K0707.108X45Stainless steelM8455,54 on request
K0707.108X50Stainless steelM8505,54 on request
K0707.110X10Stainless steelM101075 on request
K0707.110X12Stainless steelM101275 on request
K0707.110X16Stainless steelM101675 on request
K0707.110X20Stainless steelM102075 on request
K0707.110X25Stainless steelM102575 on request
K0707.110X30Stainless steelM103075 on request
K0707.110X35Stainless steelM103575 on request
K0707.110X40Stainless steelM104075 on request
K0707.110X45Stainless steelM104575 on request
K0707.110X50Stainless steelM105075 on request

Grub screws with hexagon socket and flat point
DIN 913 with LONG-LOK

More information

Drawings

Grub screws with hexagon socket and flat point DIN 913 with LONG-LOK

Item selection/filter

Order No.Version

Main
material
DLL1D1

SWCADAcc.PriceOrder
K0707.203X5Long-LokSteelM35221,5 on request
K0707.203X6Long-LokSteelM36321,5 on request
K0707.203X8Long-LokSteelM38421,5 on request
K0707.203X10Long-LokSteelM310421,5 on request
K0707.203X12Long-LokSteelM312421,5 on request
K0707.204X5Long-LokSteelM4522,52 on request
K0707.204X6Long-LokSteelM462,52,52 on request
K0707.204X8Long-LokSteelM483,52,52 on request
K0707.204X10Long-LokSteelM41052,52 on request
K0707.204X12Long-LokSteelM41252,52 on request
K0707.204X16Long-LokSteelM41652,52 on request
K0707.205X5Long-LokSteelM5523,52,5 on request
K0707.205X6Long-LokSteelM5633,52,5 on request
K0707.205X8Long-LokSteelM583,53,52,5 on request
K0707.205X10Long-LokSteelM5103,53,52,5 on request
K0707.205X12Long-LokSteelM51253,52,5 on request
K0707.205X16Long-LokSteelM51663,52,5 on request
K0707.206X6Long-LokSteelM662,543 on request
K0707.206X8Long-LokSteelM68343 on request
K0707.206X10Long-LokSteelM6103,543 on request
K0707.206X12Long-LokSteelM612543 on request
K0707.206X16Long-LokSteelM616743 on request
K0707.206X20Long-LokSteelM620743 on request
K0707.208X8Long-LokSteelM8835,54 on request
K0707.208X10Long-LokSteelM8103,55,54 on request
K0707.208X12Long-LokSteelM81255,54 on request
K0707.208X16Long-LokSteelM81685,54 on request
K0707.208X20Long-LokSteelM82085,54 on request
K0707.210X10Long-LokSteelM1010575 on request
K0707.210X12Long-LokSteelM1012575 on request
K0707.210X16Long-LokSteelM1016975 on request
K0707.210X20Long-LokSteelM1020975 on request
K0707.303X5Long-LokStainless steelM35221,5 on request
K0707.303X6Long-LokStainless steelM36321,5 on request
K0707.303X8Long-LokStainless steelM38421,5 on request
K0707.303X10Long-LokStainless steelM310421,5 on request
K0707.303X12Long-LokStainless steelM312421,5 on request
K0707.304X5Long-LokStainless steelM4522,52 on request
K0707.304X6Long-LokStainless steelM462,52,52 on request
K0707.304X8Long-LokStainless steelM483,52,52 on request
K0707.304X10Long-LokStainless steelM41052,52 on request
K0707.304X12Long-LokStainless steelM41252,52 on request
K0707.304X16Long-LokStainless steelM41652,52 on request
K0707.305X5Long-LokStainless steelM5523,52,5 on request
K0707.305X6Long-LokStainless steelM5633,52,5 on request
K0707.305X8Long-LokStainless steelM583,53,52,5 on request
K0707.305X10Long-LokStainless steelM5103,53,52,5 on request
K0707.305X12Long-LokStainless steelM51253,52,5 on request
K0707.305X16Long-LokStainless steelM51663,52,5 on request
K0707.306X6Long-LokStainless steelM662,543 on request
K0707.306X8Long-LokStainless steelM68343 on request
K0707.306X10Long-LokStainless steelM6103,543 on request
K0707.306X12Long-LokStainless steelM612543 on request
K0707.306X16Long-LokStainless steelM616743 on request
K0707.308X8Long-LokStainless steelM8835,54 on request
K0707.306X20Long-LokStainless steelM620743 on request
K0707.308X10Long-LokStainless steelM8103,55,54 on request
K0707.308X12Long-LokStainless steelM81255,54 on request
K0707.308X16Long-LokStainless steelM81685,54 on request
K0707.308X20Long-LokStainless steelM82085,54 on request
K0707.310X10Long-LokStainless steelM1010575 on request
K0707.310X12Long-LokStainless steelM1012575 on request
K0707.310X16Long-LokStainless steelM1016975 on request
K0707.310X20Long-LokStainless steelM1020975 on request
