Ball head screw in Hygienic DESIGN
K1329

Ball head screw in Hygienic DESIGN

go back

Item description/product images

DescriptionMaterial:Stainless steel 1.4404.Version:Polished.Note:Ideal elements for fastening cladding panels, Plexiglas covers etc. The oversized flange and the thread undercut ensure a stress-free, uniform force distribution on the respective surfaces. Projecting edges are kept to a minimum by the head height being kept as low as possible. An open-end spanner is used to screw the fastener in.

The surface of the ball head screw is polished and, with regard to design optimised for the use in hygienic environments. The surface is polished to a surface finish of less than Ra 0.8 µm. Dirt and residue from products or cleaners seldom adheres and easy cleaning is ensured.
Accessory:For damage-free tightening and loosening of the screw we recommend the open-end spanners with protective cap, see article No. K1362 ... together with the protective caps K1362 ...Special features:
Hygienic DESIGN - the new standardRoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1329 Ball head screw in Hygienic DESIGN 148 kB

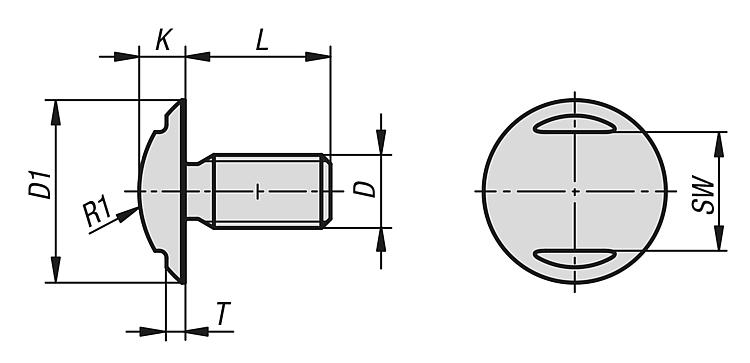

Drawings

Ball head screw in Hygienic DESIGN

Item selection/filter

Order No.D

D1KTSWRR1LCADAcc.PriceOrder
K1329.03X4M381,81,14,40,35,64 on request
K1329.03X5M381,81,14,40,35,65 on request
K1329.03X6M381,81,14,40,35,66 on request
K1329.03X8M381,81,14,40,35,68 on request
K1329.03X10M381,81,14,40,35,610 on request
K1329.04X5M4112,91,960,36,75 on request
K1329.04X6M4112,91,960,36,76 on request
K1329.04X8M4112,91,960,36,78 on request
K1329.04X10M4112,91,960,36,710 on request
K1329.04X12M4112,91,960,36,712 on request
K1329.05X6M51442,380,48,56 on request
K1329.05X8M51442,380,48,58 on request
K1329.05X10M51442,380,48,510 on request
K1329.05X12M51442,380,48,512 on request
K1329.05X16M51442,380,48,516 on request
K1329.06X8M61753,5100,6108 on request
K1329.06X10M61753,5100,61010 on request
K1329.06X12M61753,5100,61012 on request
K1329.06X16M61753,5100,61016 on request
K1329.06X20M61753,5100,61020 on request
K1329.08X10M82053130,81310 on request
K1329.08X12M82053130,81312 on request
K1329.08X16M82053130,81316 on request
K1329.08X20M82053130,81320 on request
K1329.08X25M82053130,81325 on request
K1329.10X12M10226,44,4150,913,512 on request
K1329.10X16M10226,44,4150,913,516 on request
K1329.10X20M10226,44,4150,913,520 on request
K1329.10X25M10226,44,4150,913,525 on request
K1329.10X30M10226,44,4150,913,530 on request
K1329.10X37M10226,44,4150,913,537 on request
K1329.12X16M12277,5519117,516 on request
K1329.12X20M12277,5519117,520 on request
K1329.12X25M12277,5519117,525 on request
K1329.12X30M12277,5519117,530 on request
K1329.12X35M12277,5519117,535 on request
K1329.16X20M163697241,12320 on request
K1329.16X25M163697241,12325 on request
K1329.16X30M163697241,12330 on request
K1329.16X35M163697241,12335 on request
K1329.16X40M163697241,12340 on request
