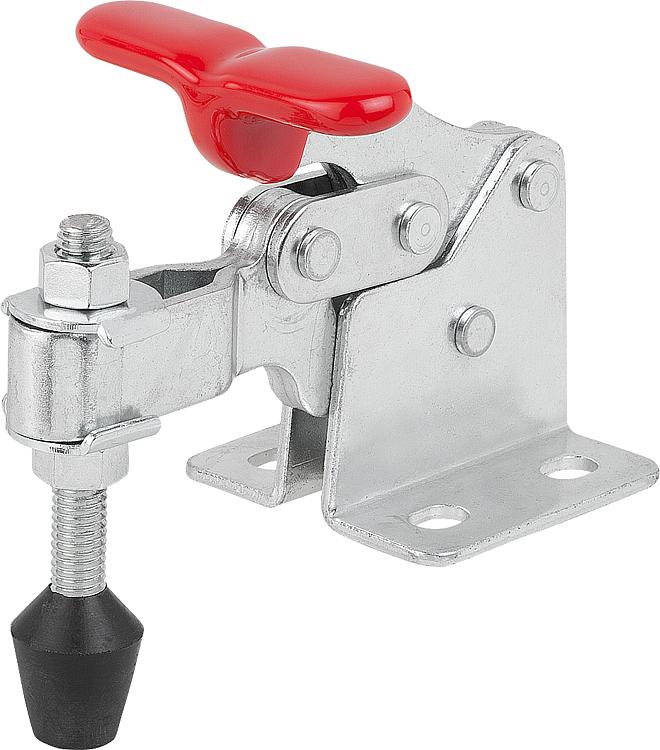

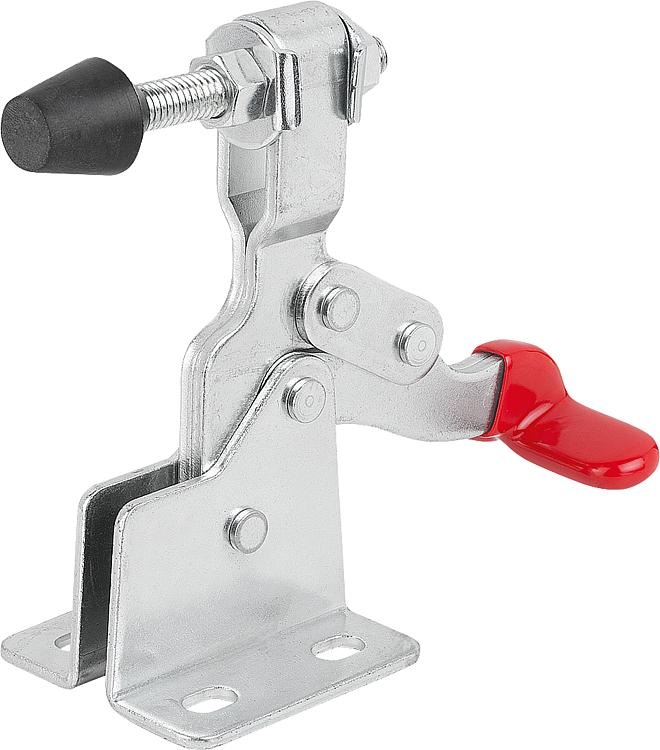

Toggle clamps vertical with flat foot and adjustable clamping spindle
K1257

Toggle clamps vertical with flat foot and adjustable clamping...

go back

Item description/product images

DescriptionMaterial:Steel or stainless steel.Version:Electro zinc-plated steel.

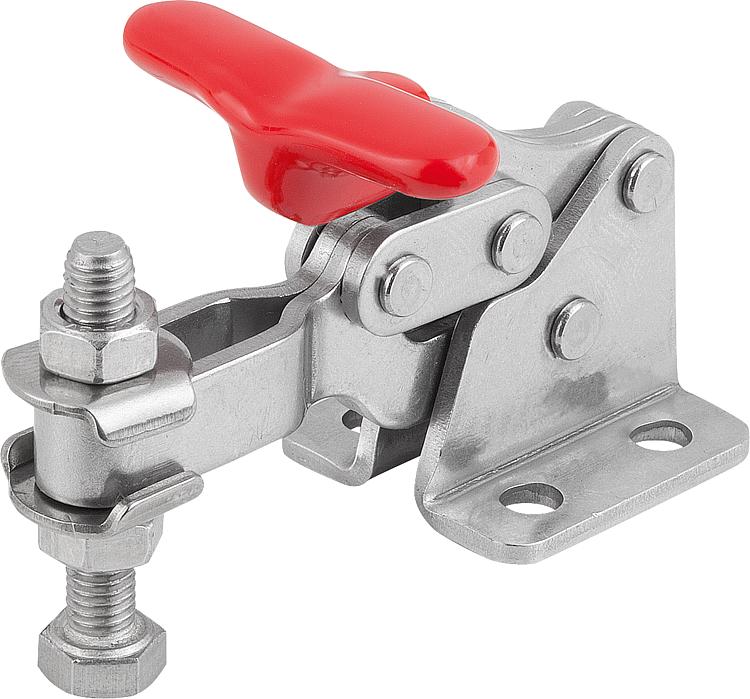

Bright stainless steel.
Plastic handle, oil-resistant.
Note:A neoprene thrust pad is supplied with versions K1257.011200 and K1257.023400.Accessory:K0688
K0689
K0690
K0101
K1442
K0102
K0103
K1443
K0104
K0106
K1441
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1257 Toggle clamps vertical with flat foot and adjustable clamping spindle 506 kB
 Technical information 1,7 MB

Drawings

Toggle clamps vertical with flat foot and adjustable clamping spindle

Item selection/filter

Order No.Main
material
hole
arrangement
Opening
angle of
holding arm
Opening
angle of
handle
Hand
force
FH N
Retaining
force
F1 N
Retaining
force
F2 N
Clamping
force
F3 N
Clamping
force
F4 N
CADAcc.PriceOrder
K1257.011200steel190°170°508001200500700 on request
K1257.023400steel490°170°200140034008001800 on request
K1257.111200stainless steel190°170°508001200500700 on request
Order No.Main
material
A

A1A3BB1B2B3B5B6CC1DHLL1L2MCADAcc.PriceOrder
K1257.011200steel13,526,2-15,925,49523412,77,94,4365730,812,7M5x37 on request
K1257.023400steel3964,33138,162,718,310,337033,3197,991131,867,528M10x80 on request
K1257.111200stainless steel13,526,2-15,925,49523412,77,94,4365730,812,7M5x30 on request
