K0061

Toggle clamps vertical with flat foot and full holding arm

Products
- Operating parts | standard elements
  - Toggle clamps, power clamps
    - Toggle clamps vertical with flat foot and full holding arm

Item description/product images

DescriptionMaterial:Steel.Version:Trivalent passivated.
Plastic grip oil-resistant.Note:The opening angle between the holding arm and the handle can be reduced or increased by repositioning or removing the stop pin.
Spindle bracket is weldable.Accessory:K0098
K0100
K0101
K0102
K0103

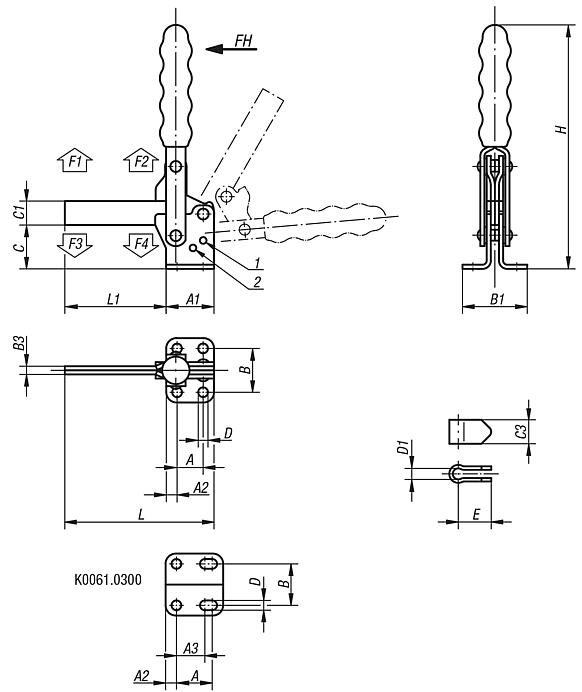

K0106Drawing reference:

1) stop pin position 1
2) stop pin position 2

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0061 Toggle clamps vertical with flat foot and full holding arm

225 kB

Technical information

2,8 MB

Drawings

Overview of items (compressed)

Item selection/filter

Order No.	Opening angle holding arm position 1	Opening angle holding arm position 2	Opening angle holding arm stop pin removed	Opening angle handle position 1	Opening angle handle position 2	Opening angle handle stop pin removed	Order No. Angle bracket	Matching plastic grip	Price
K0061.0250	95°	125°	160°	70°	85°	100°	K0098.04	K0100.28	on request
K0061.0300	105°	-	160°	65°	-	90°	-	K0100.28	on request
K0061.0350	90°	120°	180°	70°	80°	110°	K0098.06	K0100.30	on request
K0061.0450	90°	125°	180°	70°	85°	110°	K0098.06	K0100.34	on request
K0061.0550	90°	120°	180°	65°	80°	110°	-	K0100.35	on request

Order No.	A	A1	A2	A3	B	B1	B3	C	C1	C3	D	D1	E	H	L	L1	M=clamping spindle	Hand force FH N	Retaining force F1 N	Retaining force F2 N	Clamping force F3 N	Clamping force F4 N	Price
K0061.0250	19	35	8	-	32	47	6	31	17,5	17,5	7,1	8,3	24	175	112	77	M8x60	190	1000	2800	900	1700	on request
K0061.0300	25	43	9	19	34,5	52	6	34	19	17,5	8	8,3	24	186	143	100	M8x60	130	2000	3700	900	1850	on request
K0061.0350	32	50	9	-	45	64	8	42	22	22	8,3	10,3	30	220	149	99	M10x80	230	2200	4500	1400	3000	on request
K0061.0450	32	53	10	-	45	64	10	51	25	26	8,7	12,3	32	228	180	127	M12x100	260	3200	7000	1400	3000	on request
K0061.0550	51	76	12,5	-	70	95	10	84	32	32	12,3	16,3	35	312	236	160	M16x150	290	3000	8000	1800	3900	on request
