Toggle clamps mini horizontal with flat right foot and adjustable clamping spindle
K0267

Toggle clamps mini horizontal with flat right foot and...

go back

Item description/product images

DescriptionMaterial:Steel.Version:Trivalent passivated.
Clamping spindle and nuts phosphated.
Plastic grip oil-resistant.
Accessory:K0101
K0102
K0103
K0106
K0107
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0267 Toggle clamps mini horizontal with flat right foot and adjustable clamping spindle 163 kB
 Technical information 2,8 MB

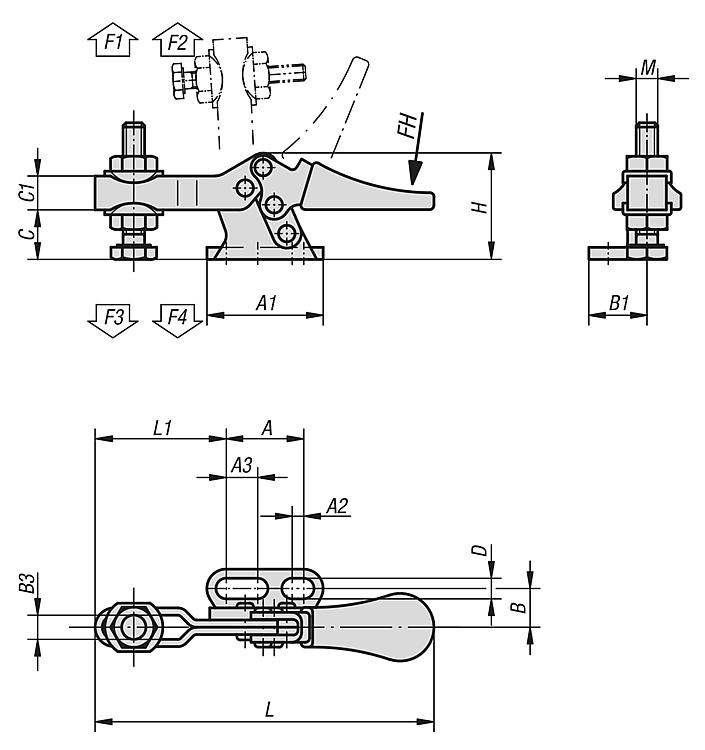

Drawings

Toggle clamps mini horizontal with flat right foot and adjustable clamping spindle

Overview of items (compressed)

Item selection/filter
Order No.

Opening
angle of
holding arm
Opening
angle of
handle
Hand
force
FH N
Retaining
force
F1 N
Retaining
force
F2 N
Clamping
force
F3 N
Clamping
force
F4 N
CADAcc.PriceOrder
K0267.005085°65°80250550170370  on request
Order No.

A1AA2A3BB1B3CC1DHLL1MCADAcc.PriceOrder
K0267.005024162,46,58125,29,574,2227027M5x20  on request
