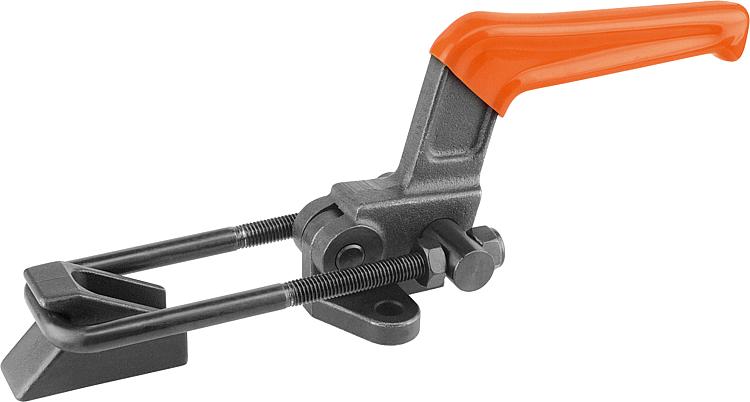

Toggle clamps latch horizontal heavy-duty with catch plate
K0081

Toggle clamps latch horizontal heavy-duty with catch plate

go back

Item description/product images

DescriptionMaterial:Steel. Body and catch plate cast steel.
Grip ductile iron (SGI).
Version:Body, catch plate and handle phosphated.
Plastic handle oil-resistant.
Note:Horizontal latch toggle clamps are especially suitable for quickly closing and locking covers and hatches.
The travel can be set by altering the hasp length.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0081 Toggle clamps latch horizontal heavy-duty with catch plate 163 kB
 Technical information 2,8 MB

Drawings

Toggle clamps latch horizontal heavy-duty with catch plate

Overview of items (compressed)

Item selection/filter
Order No.Opening
angle of
handle
Hand
force
FH N
Retaining
force
F2 N
Pull
force
F1 N
Travel
path
L min.
Travel
path
L max.
Travel
path
L1 min.
Travel
path
L1 max.
Clamping
travel
L2
CADAcc.PriceOrder
K0081.1650120°6002000016500270320388860 on request
K0081.1900120°60040000190003353955211270 on request
Order No.

AA1A2A3A4BB1B3DD1HSTCADAcc.PriceOrder
K0081.1650602437186574502810,3101151027 on request
K0081.1900823644227884563412,4121321233,5 on request
