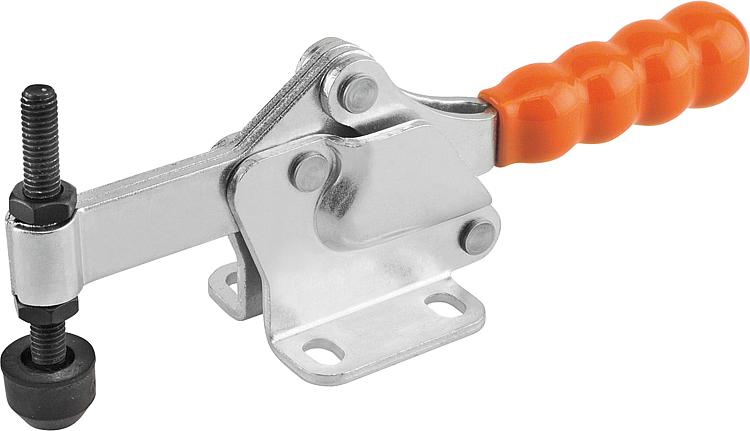

Toggle clamps horizontal with flat foot and fixed clamping spindle
K0075

Toggle clamps horizontal with flat foot and fixed clamping...

go back

Item description/product images

DescriptionMaterial:Steel.Version:Galvanised and passivated.
Clamping spindle and nuts phosphated.
Plastic grip oil-resistant.
Note:The clamping spindle is supplied with a neoprene thrust pad.Accessory:K0098
K0100
K0101
K0102
K0103
K0106
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0075 Toggle clamps horizontal with flat foot and fixed clamping spindle 219 kB
 Technical information 2,8 MB

Drawings

Toggle clamps horizontal with flat foot and fixed clamping spindle

Overview of items (compressed)

Item selection/filter
Order No.

Opening angle
of holding arm
Opening
angle of
handle
Hand
force
FH N
Retaining
force
F1 N
Clamping
force
F3 N
Matching
plastic grip
CADAcc.PriceOrder
K0075.007590°75°80750320K0100.16  on request
K0075.015090°80°1401500650K0100.20  on request
Order No.

AA1A2BB1B2B4CC1DHLL1MOrder No.

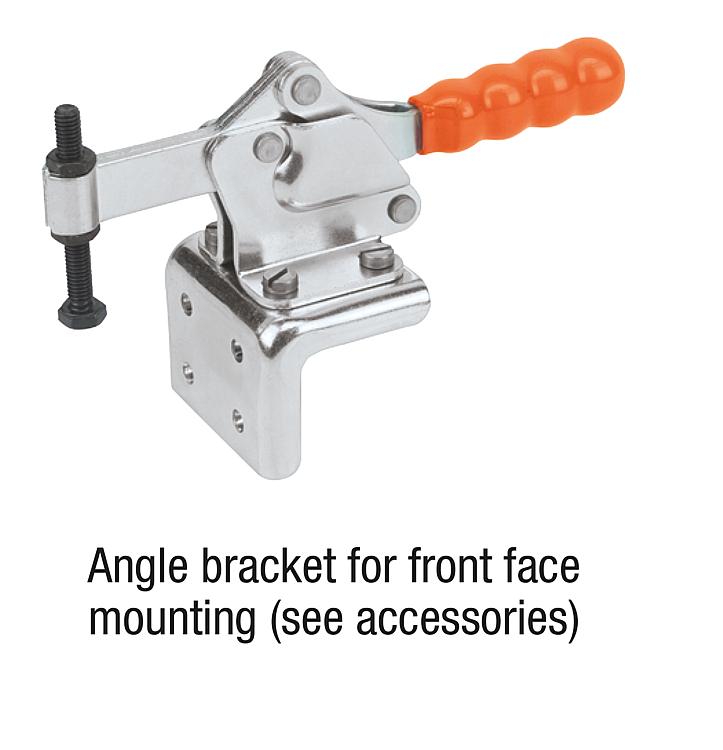

Angle bracket
CADAcc.PriceOrder
K0075.007513,5255,716,82716-199,55,23810824,5M5x35K0098.02  on request
K0075.0150263862840202225145,55315538M6x50K0098.04  on request
