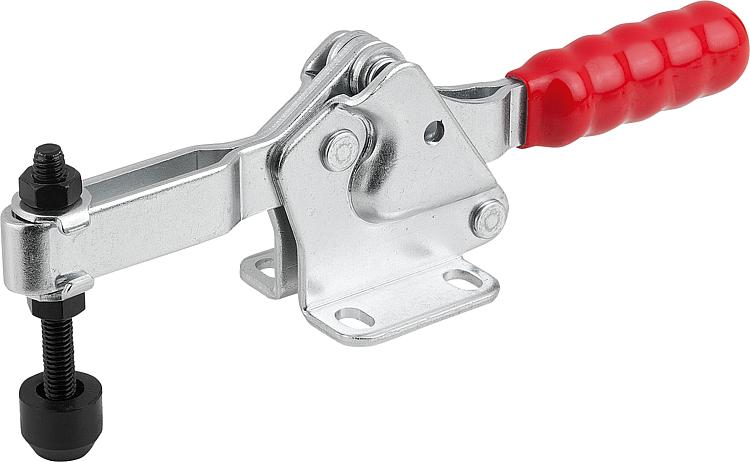

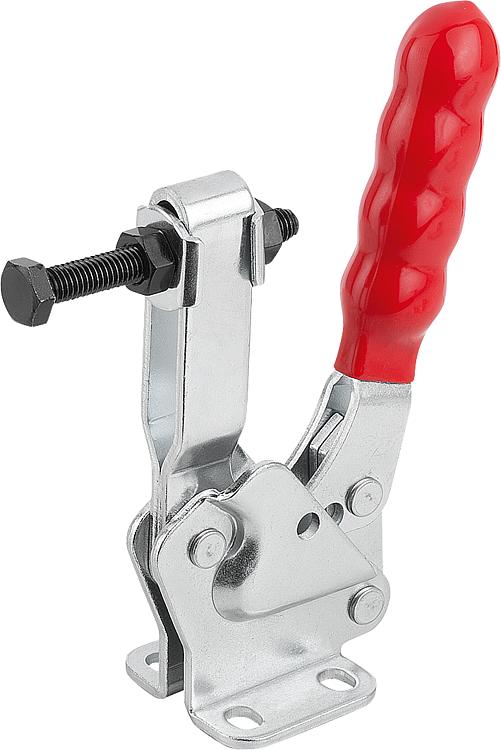

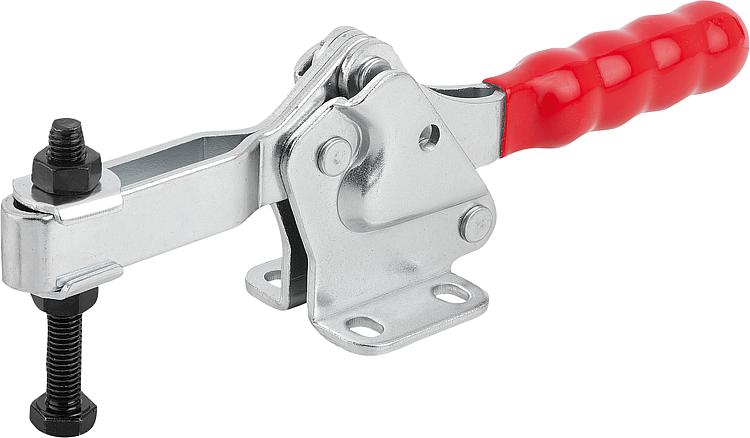

Toggle clamps horizontal with flat foot and adjustable clamping spindle
K1241

Toggle clamps horizontal with flat foot and adjustable clamping...

go back

Item description/product images

DescriptionMaterial:Steel or stainless steel.Version:Electro zinc-plated steel.
Bright stainless steel.
Plastic handle, oil-resistant.
Note:A neoprene thrust pad is supplied with versions K1241.02500 and K1241.12500.Accessory:K0688
K0689
K0690
K0101
K1442
K0102
K0103
K1443
K0104
K0106
K1441
K1431
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1241 Toggle clamps horizontal with flat foot and adjustable clamping spindle 433 kB
 Technical information 1,7 MB

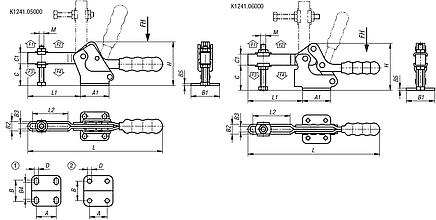

Drawings

Toggle clamps horizontal with flat foot and adjustable clamping spindle
Toggle clamps horizontal with flat foot and adjustable clamping spindle

Item selection/filter

Order No.Main
material
hole
arrangement
Opening
angle of
holding arm
Opening
angle of
handle
Hand
force
FH N
Retaining
force
F1 N
Retaining
force
F2 N
Clamping
force
F3 N
Clamping
force
F4 N
CADAcc.PriceOrder
K1241.01000steel296°78°805001000250500 on request
K1241.02500steel193°76°150120025004001000 on request
K1241.03400steel190°72°200140034008001900 on request
K1241.05000steel190°72°2502200500011003000 on request
K1241.06000steel294°80°2503000600012003200 on request
K1241.11000stainless steel296°78°805001000250500 on request
K1241.12500stainless steel193°76°150120025004001000 on request
Order No.Main
material
A

A1BB1B2B3B4B5CC1DHLL1L2MCADAcc.PriceOrder
K1241.01000steel13,52516,8279,35,3-2199,55,238,51123722,8M5x40 on request
K1241.02500steel2638284011,26,2222,525145,552,11736137,5M6x50 on request
K1241.03400steel264231471592633417,56,666,52257948,6M8x60 on request
K1241.05000steel41,259435919,411,439445238,790,127710872,9M10x80 on request
K1241.06000steel41,26641,36723,213,2-559268,7110,430812887,2M12x100 on request
K1241.11000stainless steel13,52516,8279,35,3-2199,55,238,51123722,8M5x40 on request
K1241.12500stainless steel2638284011,26,2222,525145,552,11736137,5M6x50 on request
