Toggle clamps push-pull without mounting bracket
K0086

Toggle clamps push-pull without mounting bracket

go back

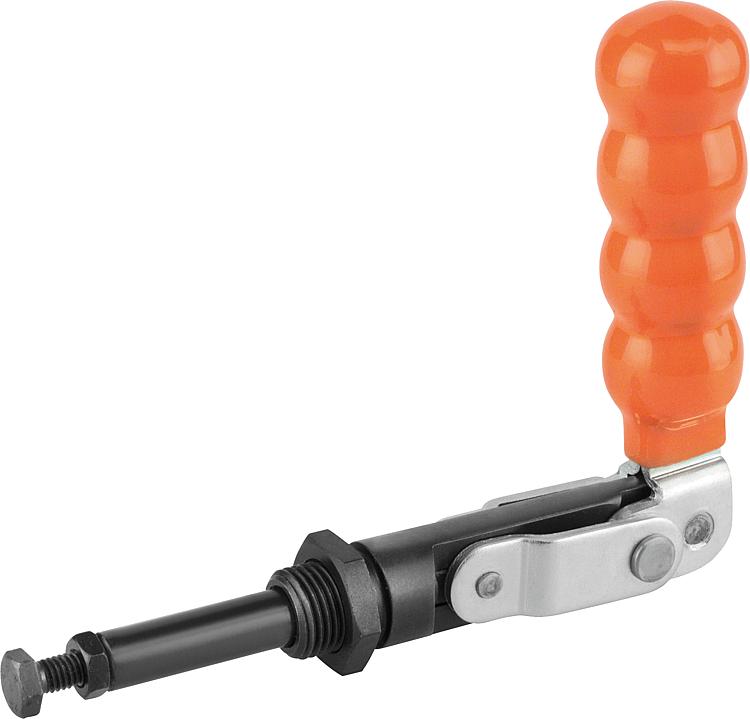

Item description/product images

DescriptionMaterial:Steel.Version:Galvanized and chromated,
connecting rod, guide body and contact pressure screw phosphated,
plastic handle oil-resistant
Note:As the push-pull toggle clamps lock in open and closed handle positions, they can be used to clamp when pushing or pulling.
The fastening nut supplied allows the clamps to be mounted in any desired position.
Accessory:K0100
K0101
K0102
K0103
K0106
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0086 Toggle clamps push-pull without mounting bracket 155 kB
 Technical information 2,8 MB

Drawings

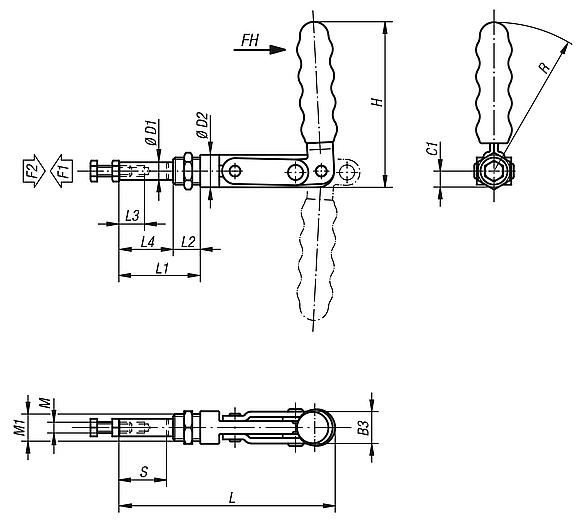

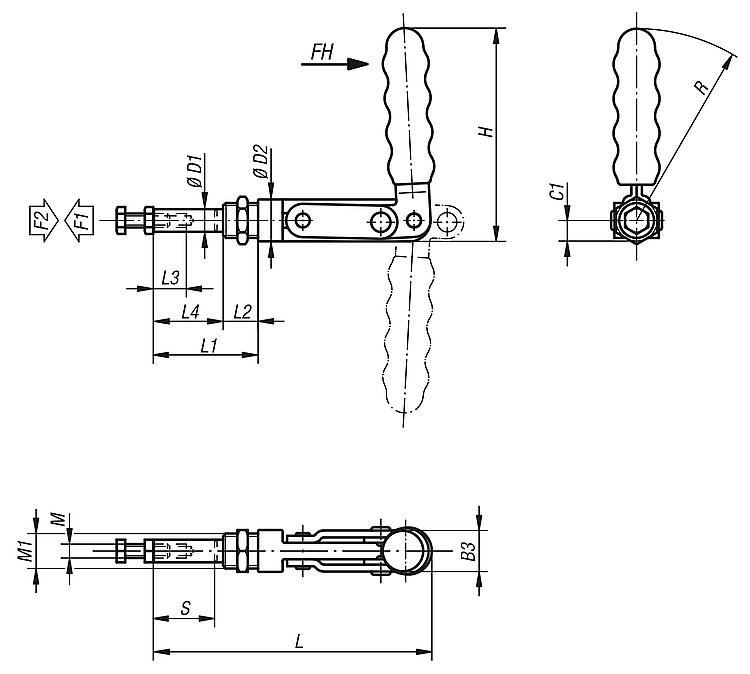

Toggle clamps push-pull without mounting bracket

Overview of items (compressed)

Item selection/filter
Order No.Opening
angle of
handle
Hand
force
FH N
Retaining
force
F2 N
Clamping
force
F1 N
Matching
plastic grip
CADAcc.PriceOrder
K0086.0350185°11035001500K0100.28  on request
K0086.0550185°14055001600K0100.30  on request
K0086.0750185°16075001600K0100.33  on request
Order No.

B3C1D1

D2HLL1L2L3L4MM1RC
(travel)
CADAcc.PriceOrder
K0086.035020,59,51019106,512349161833M6x25M16x1,59725  on request
K0086.055024,512132413015960203040M8x40M20x1,511838  on request
K0086.07503114,21628,514923593234070M10x50M24x1,513567  on request
