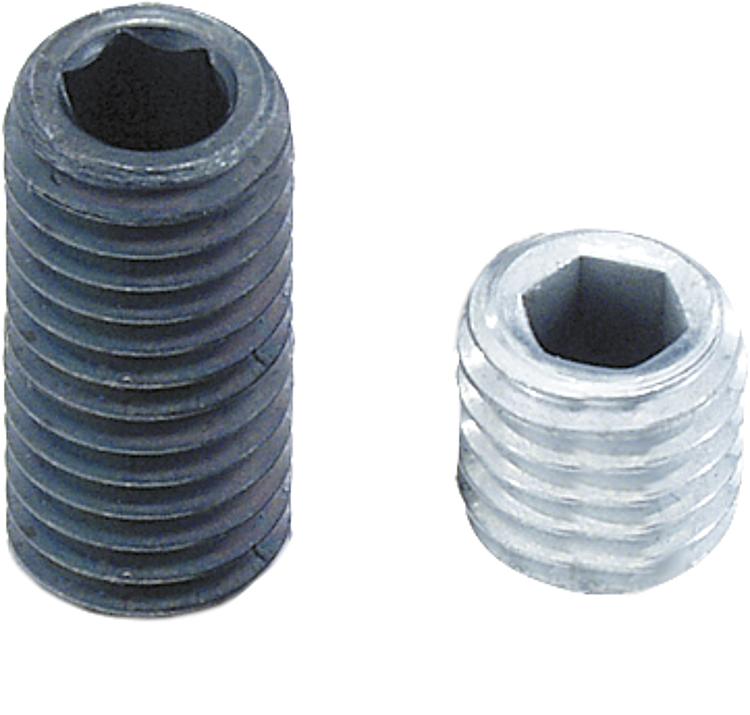

Grub screws with hex socket and flat point DIN EN ISO 4026, without thread lock
 K0707_O

Grub screws with hex socket and flat point DIN EN ISO 4026,...

 go back

Item description/product images
DescriptionMaterial:Steel or stainless steel A2.Version:Steel class 45 H, black.
Stainless steel A2-70, bright.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet K0707_O Grub screws with hex socket and flat point DIN EN ISO 4026, without thread lock 153 kB
Grades 39,9 kB
Overview of standards for fasteners 713 kB

Drawings

Grub screws with hex socket and flat point DIN EN ISO 4026, without thread lock

Item selection/filter
Order No.Main
material		LD1D2SWCADAcc.PriceOrder
K0707.03X5steel5M321,5 on request
K0707.03X6steel6M321,5 on request
K0707.03X8steel8M321,5 on request
K0707.03X10steel10M321,5 on request
K0707.03X12steel12M321,5 on request
K0707.03X16steel16M321,5 on request
K0707.03X20steel20M321,5 on request
K0707.04X5steel5M42,52 on request
K0707.04X6steel6M42,52 on request
K0707.04X8steel8M42,52 on request
K0707.04X10steel10M42,52 on request
K0707.04X12steel12M42,52 on request
K0707.04X16steel16M42,52 on request
K0707.04X20steel20M42,52 on request
K0707.04X25steel25M42,52 on request
K0707.05X5steel5M53,52,5 on request
K0707.05X6steel6M53,52,5 on request
K0707.05X8steel8M53,52,5 on request
K0707.05X10steel10M53,52,5 on request
K0707.05X12steel12M53,52,5 on request
K0707.05X16steel16M53,52,5 on request
K0707.05X20steel20M53,52,5 on request
K0707.05X25steel25M53,52,5 on request
K0707.05X30steel30M53,52,5 on request
K0707.06X6steel6M643 on request
K0707.06X8steel8M643 on request
K0707.06X10steel10M643 on request
K0707.06X12steel12M643 on request
K0707.06X16steel16M643 on request
K0707.06X20steel20M643 on request
K0707.06X25steel25M643 on request
K0707.06X30steel30M643 on request
K0707.06X35steel35M643 on request
K0707.06X40steel40M643 on request
K0707.06X45steel45M643 on request
K0707.06X50steel50M643 on request
K0707.06X60steel60M643 on request
K0707.08X8steel8M85,54 on request
K0707.08X10steel10M85,54 on request
K0707.08X12steel12M85,54 on request
K0707.08X16steel16M85,54 on request
K0707.08X20steel20M85,54 on request
K0707.08X25steel25M85,54 on request
K0707.08X30steel30M85,54 on request
K0707.08X35steel35M85,54 on request
K0707.08X40steel40M85,54 on request
K0707.08X45steel45M85,54 on request
K0707.08X50steel50M85,54 on request
K0707.08X60steel60M85,54 on request
K0707.08X70steel70M85,54 on request
K0707.08X80steel80M85,54 on request
K0707.10X10steel10M1075 on request
K0707.10X12steel12M1075 on request
K0707.10X16steel16M1075 on request
K0707.10X20steel20M1075 on request
K0707.10X25steel25M1075 on request
K0707.10X30steel30M1075 on request
K0707.10X35steel35M1075 on request
K0707.10X40steel40M1075 on request
K0707.10X45steel45M1075 on request
K0707.10X50steel50M1075 on request
K0707.10X60steel60M1075 on request
K0707.10X70steel70M1075 on request
K0707.10X80steel80M1075 on request
K0707.10X90steel90M1075 on request
K0707.10X100steel100M1075 on request
K0707.103X5stainless steel5M321,5 on request
K0707.103X6stainless steel6M321,5 on request
K0707.103X8stainless steel8M321,5 on request
K0707.103X10stainless steel10M321,5 on request
K0707.103X12stainless steel12M321,5 on request
K0707.104X5stainless steel5M42,52 on request
K0707.104X6stainless steel6M42,52 on request
K0707.104X8stainless steel8M42,52 on request
K0707.104X10stainless steel10M42,52 on request
K0707.104X12stainless steel12M42,52 on request
K0707.104X16stainless steel16M42,52 on request
K0707.104X20stainless steel20M42,52 on request
K0707.105X5stainless steel5M53,52,5 on request
K0707.105X6stainless steel6M53,52,5 on request
K0707.105X8stainless steel8M53,52,5 on request
K0707.105X10stainless steel10M53,52,5 on request
K0707.105X12stainless steel12M53,52,5 on request
K0707.105X16stainless steel16M53,52,5 on request
K0707.105X20stainless steel20M53,52,5 on request
K0707.105X25stainless steel25M53,52,5 on request
K0707.105X30stainless steel30M53,52,5 on request
K0707.106X6stainless steel6M643 on request
K0707.106X8stainless steel8M643 on request
K0707.106X10stainless steel10M643 on request
K0707.106X12stainless steel12M643 on request
K0707.106X16stainless steel16M643 on request
K0707.106X20stainless steel20M643 on request
K0707.106X25stainless steel25M643 on request
K0707.106X30stainless steel30M643 on request
K0707.106X35stainless steel35M643 on request
K0707.106X40stainless steel40M643 on request
K0707.108X8stainless steel8M85,54 on request
K0707.108X10stainless steel10M85,54 on request
K0707.108X12stainless steel12M85,54 on request
K0707.108X16stainless steel16M85,54 on request
K0707.108X20stainless steel20M85,54 on request
K0707.108X25stainless steel25M85,54 on request
K0707.108X30stainless steel30M85,54 on request
K0707.108X35stainless steel35M85,54 on request
K0707.108X40stainless steel40M85,54 on request
K0707.108X45stainless steel45M85,54 on request
K0707.108X50stainless steel50M85,54 on request
K0707.110X10stainless steel10M1075 on request
K0707.110X12stainless steel12M1075 on request
K0707.110X16stainless steel16M1075 on request
K0707.110X20stainless steel20M1075 on request
K0707.110X25stainless steel25M1075 on request
K0707.110X30stainless steel30M1075 on request
K0707.110X35stainless steel35M1075 on request
K0707.110X40stainless steel40M1075 on request
K0707.110X45stainless steel45M1075 on request
K0707.110X50stainless steel50M1075 on request
