Item description/product images

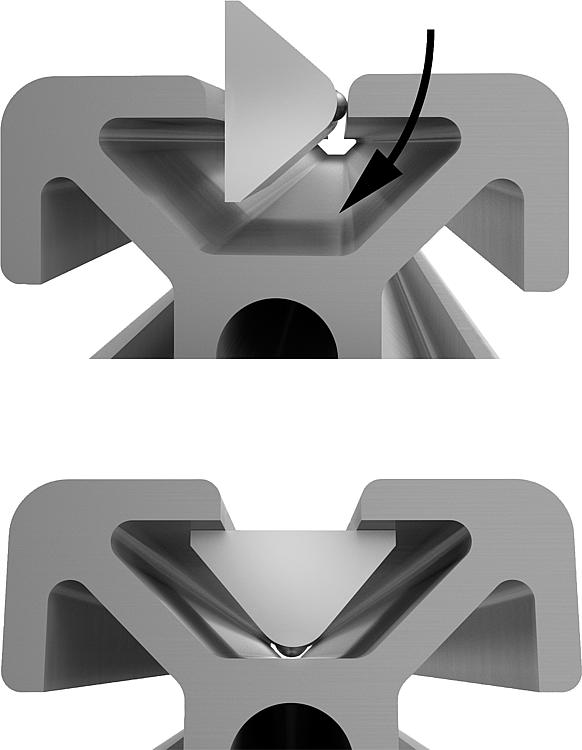

DescriptionMaterial:Steel.Version:galvanized.Note:The slot nut is twisted into the profile slot and so can be subsequently inserted into existing systems. The spring-loaded ball allows the nut to be fixated anywhere in the profile slot.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1023 Slot nuts twist-in Type I 215 kB

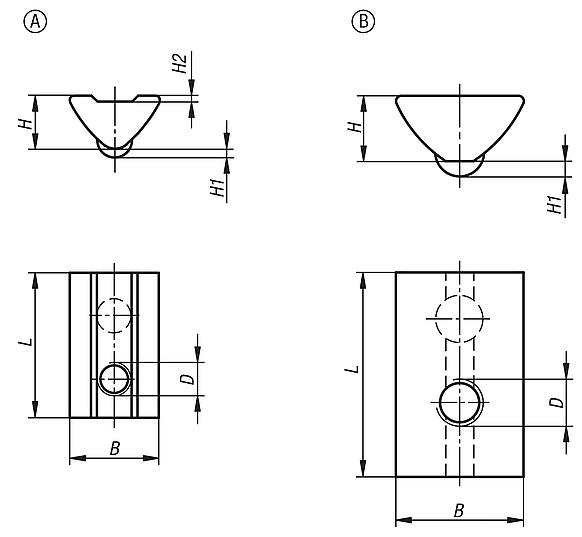

Drawings

Slot nuts twist-in Type I

Item selection/filter

Order No.TypeSlot
width
Form

D

BHH1LCADAcc.PriceOrder
K1023.0604I6AM410,56,3117 on request
K1023.0605I6AM510,56,3117 on request
K1023.0606I6AM610,56,3117 on request
K1023.0804I8BM413,771,722 on request
K1023.0805I8BM513,771,722 on request
K1023.0806I8BM613,771,722 on request
K1023.0808I8BM813,771,722 on request
