K1107Quarter-turn lock, lockable, stainless steel 1.4401, housing... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Stainless steel 1.4401. Version:Bright.Note:Lockable quarter-turn lock for right or left mounting with 90° closing. The quarter-turn lock can be installed pre-assembled. This lockable quarter-turn lock is supplied with 2 keys. The key can be removed in both the closed and open position. The cylinder locks have a single-key system i.e. the same key works in all locks (lock type 1333).
Please order required tongue separately. Every tongue can be combined with this housing.

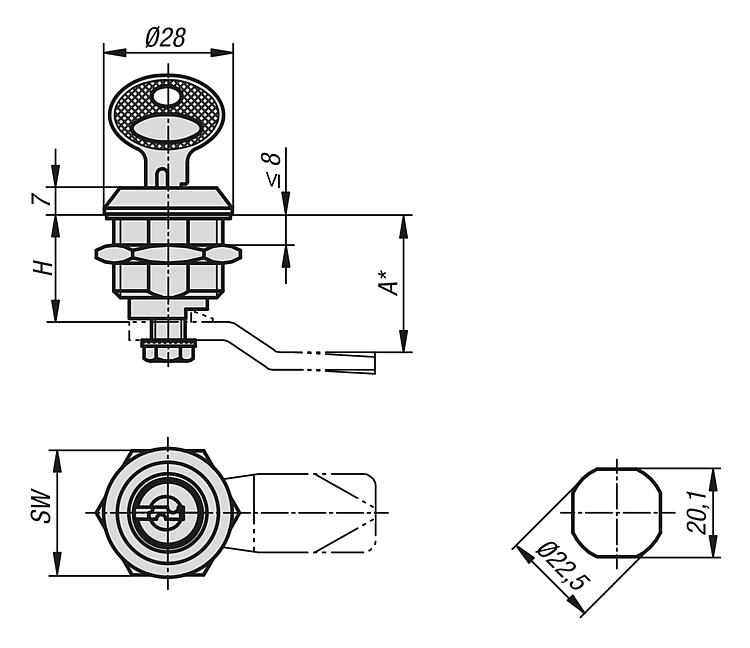

*Dimension A results from the combination of the quarter turn lock and the tongue and is specified with the matching tongues.Accessory:Tongue for stainless steel quarter-turn lock K1114.
Key for quarter-turn lock K1511.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Actuation | H
| SW | CAD | Acc. | Price | Order |
|---|
| K1107.186 | key single-key system | 18 | 27 |  | | on request | |
