K1359Quarter-turn locks with L-grip, stainless steel 1.4401,... |
go back |
|

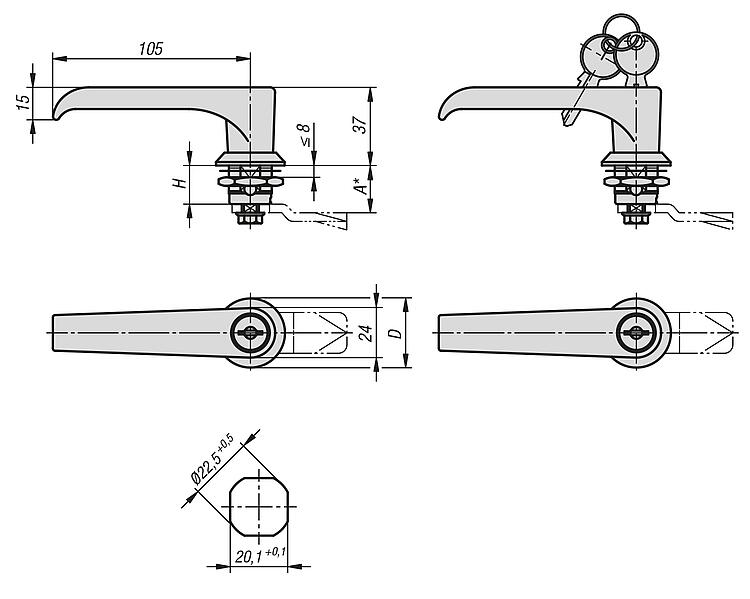

Item description/product images |
|
|
DescriptionMaterial:Stainless steel 1.4401. Version:Bright.
Grip polished.Note:Quarter-turn lock with L-grip. For right or left mounting with 90° closing. The quarter-turn lock can be installed pre-assembled. Rating IP65.
Please order required tongue version separately. Every tongue can be combined with this housing.
The lockable quarter-turn locks are each supplied with 2 keys. The cylinder locks have a single key system i.e. the same key works in all locks (cylinder lock 1333).
*Dimension A results from the combination of the quarter turn lock and the tongue and is specified with the matching tongues.On request:Available for door thickness 20 and 40 mm.Accessory:Key for quarter-turn lock K1511.
Tongue for stainless steel quarter-turn lock K1340.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Actuation | D
| H | CAD | Acc. | Price | Order |
|---|
| K1359.118 | L-grip | 32 | 18 |  | | on request | | | K1359.218 | lockable L-grip | 32 | 18 | | | on request | |
