K0523Tongue for quarter-turn lock, steel |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Electro zinc-plated.Accessory:Quarter-turn locks, zinc K0522.
Quarter-turn security locks K0524.
Quarter-turn locks with wing grip K0525.
Quarter-turn locks with T-grip K0526.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

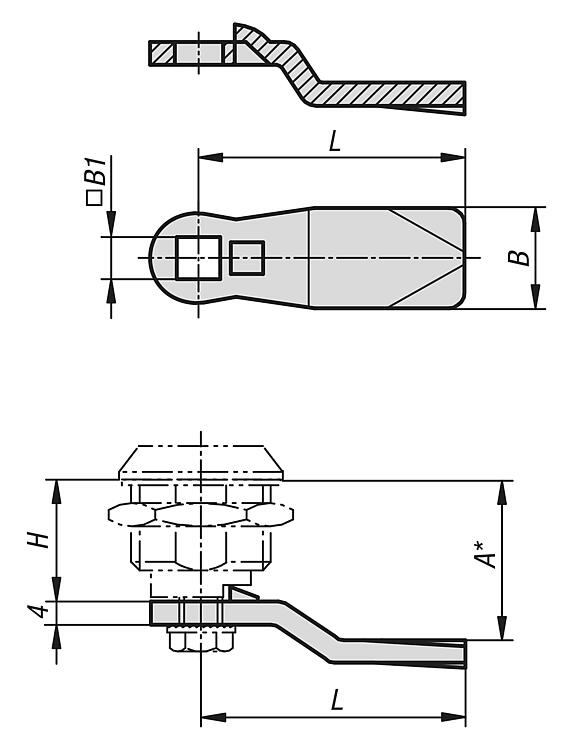

| Order No. | B
| B1 | A at H=18.5 | L | CAD | Acc. | Price | Order |
|---|
| K0523.135X165 | 19 | 8,1 | 16,5 | 35 |  | | on request | | | K0523.135X185 | 19 | 8,1 | 18,5 | 35 | | | on request | | | K0523.135X205 | 19 | 8,1 | 20,5 | 35 | | | on request | | | K0523.135X225 | 19 | 8,1 | 22,5 | 35 | | | on request | | | K0523.135X245 | 19 | 8,1 | 24,5 | 35 | | | on request | | | K0523.145X045 | 19 | 8,1 | 4,5 | 45 | | | on request | | | K0523.145X065 | 19 | 8,1 | 6,5 | 45 | | | on request | | | K0523.145X085 | 19 | 8,1 | 8,5 | 45 | | | on request | | | K0523.145X105 | 19 | 8,1 | 10,5 | 45 | | | on request | | | K0523.145X125 | 19 | 8,1 | 12,5 | 45 | | | on request | | | K0523.145X145 | 19 | 8,1 | 14,5 | 45 | | | on request | | | K0523.145X165 | 19 | 8,1 | 16,5 | 45 | | | on request | | | K0523.145X185 | 19 | 8,1 | 18,5 | 45 | | | on request | | | K0523.145X205 | 19 | 8,1 | 20,5 | 45 | | | on request | | | K0523.145X215 | 19 | 8,1 | 21,5 | 45 | | | on request | | | K0523.145X225 | 19 | 8,1 | 22,5 | 45 | | | on request | | | K0523.145X245 | 19 | 8,1 | 24,5 | 45 | | | on request | | | K0523.145X265 | 19 | 8,1 | 26,5 | 45 | | | on request | | | K0523.145X285 | 19 | 8,1 | 28,5 | 45 | | | on request | | | K0523.145X305 | 19 | 8,1 | 30,5 | 45 | | | on request | | | K0523.145X325 | 19 | 8,1 | 32,5 | 45 | | | on request | | | K0523.145X345 | 19 | 8,1 | 34,5 | 45 | | | on request | | | K0523.145X365 | 19 | 8,1 | 36,5 | 45 | | | on request | | | K0523.145X385 | 19 | 8,1 | 38,5 | 45 | | | on request | | | K0523.145X405 | 19 | 8,1 | 40,5 | 45 | | | on request | | | K0523.145X425 | 19 | 8,1 | 42,5 | 45 | | | on request | |
