K2142Guide rails, plastic for roller tracks, steel |
go back |
|
Item description/product images |
|
|

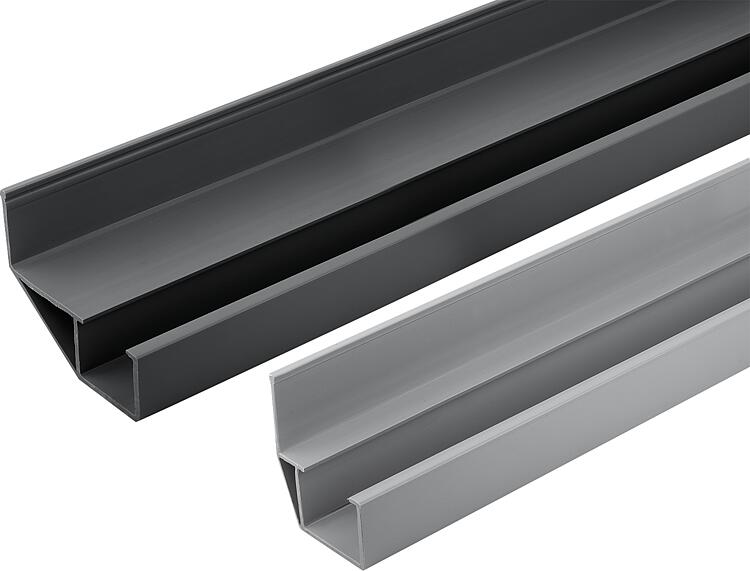

DescriptionMaterial:Plastic PVC.

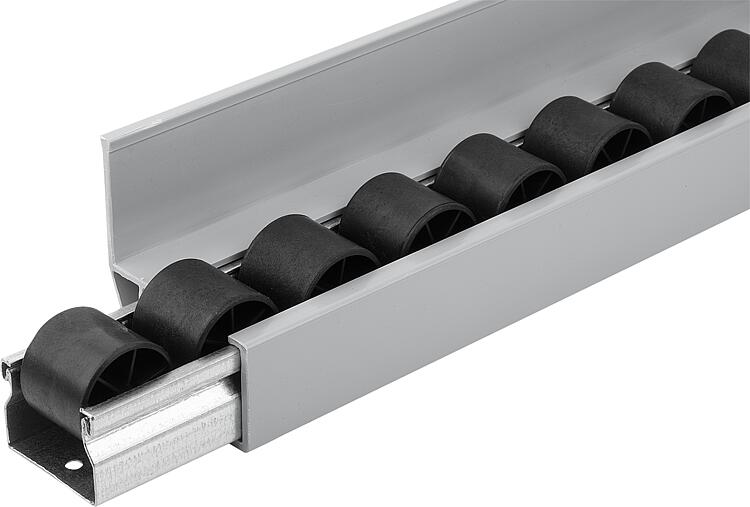

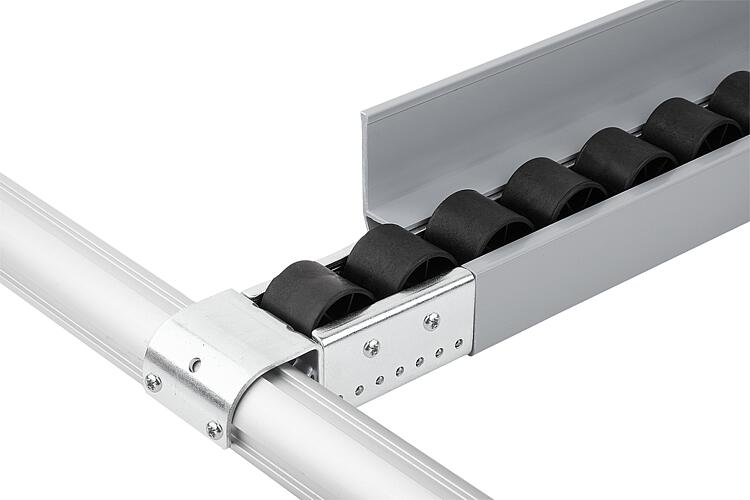

ESD version plastic PVC, carbon fibre reinforced.Version:black or grey similar to RAL 7042.Note:The guide rails hold the transport goods securely on the roller track. For installation, the guide rails are simply pushed over the roller tracks.
To protect sensitive products, the guide rails are also available in an electrostatically dissipative version (ESD).Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
