K0342Indexing plungers, steel or stainless steel with stainless steel... |
go back |
|
|

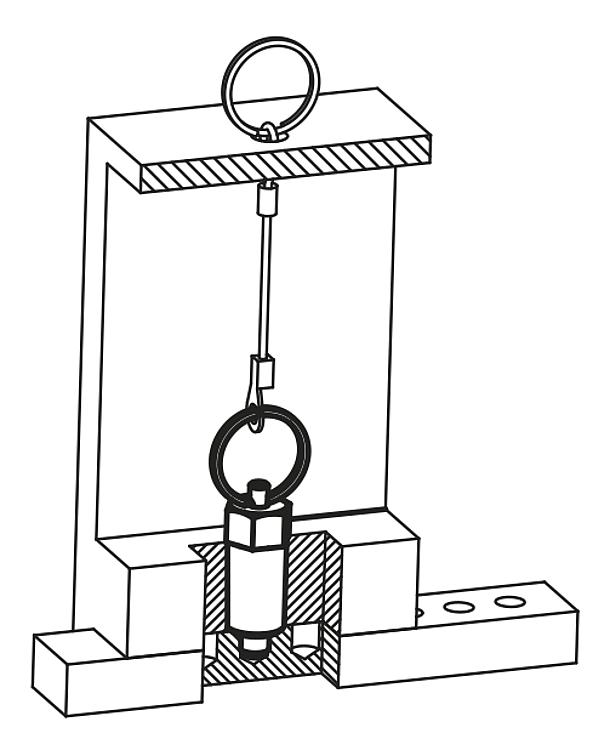

DescriptionProduct description:Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been disengaged. The key ring is also suitable for automatic actuation of the indexing plunger by e.g. program-controlled pneumatic cylinder or by remote control using bowden cables.Material:Version:Steel version:
Threaded sleeve black oxidized.
Indexing pin hardened, ground and black oxidized.
Stainless steel version:
Threaded sleeve bright.
Indexing pin hardened and ground, bright.
Indexing pin not hardened and ground, bright.

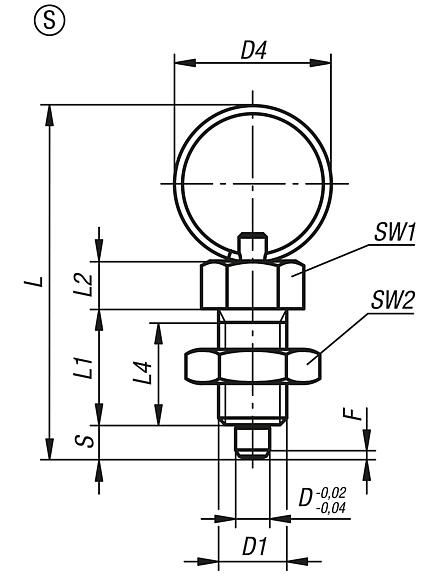

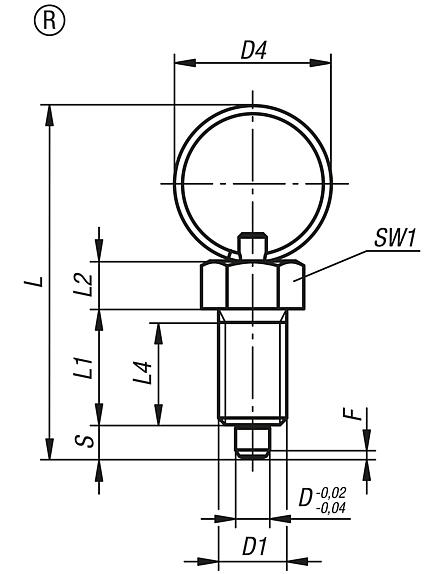

Key ring bright.On request:Special versions.Drawing reference:Form R: without locknut
Form S: with locknut DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
Indexing plungers, steel or stainless steel, with stainless steel pull ring, no locknut |
More information |
| Order No. | Form | Main
material | Locknut | Surface finish
body | D | D1 | D4 | L | L1 | L2 | L4 | Travel
S | SW1 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| K0342.3004 | R | steel | without locknut | hardened | 4 | M8x1 | 15 | 40 | 15 | 6 | 13 | 4 | 10 | 1 | 6 | 12 |  |  | on request | | | K0342.3105 | R | steel | without locknut | hardened | 5 | M10x1 | 23 | 52 | 17 | 7 | 15 | 5 | 13 | 1,3 | 5 | 12 | | | on request | | | K0342.3206 | R | steel | without locknut | hardened | 6 | M12x1,5 | 23 | 57 | 20 | 8 | 17 | 6 | 14 | 1,8 | 6 | 14 | | | on request | | | K0342.3308 | R | steel | without locknut | hardened | 8 | M16x1,5 | 28 | 72 | 26 | 10 | 23 | 8 | 19 | 2,3 | 15 | 35 | | | on request | | | K0342.3410 | R | steel | without locknut | hardened | 10 | M20x1,5 | 28 | 77 | 28 | 12 | 25 | 10 | 22 | 2,8 | 15 | 34 | | | on request | | | K0342.03004 | R | stainless steel | without locknut | hardened | 4 | M8x1 | 15 | 40 | 15 | 6 | 13 | 4 | 10 | 1 | 6 | 12 | | | on request | | | K0342.03105 | R | stainless steel | without locknut | hardened | 5 | M10x1 | 23 | 52 | 17 | 7 | 15 | 5 | 13 | 1,3 | 5 | 12 | | | on request | | | K0342.03206 | R | stainless steel | without locknut | hardened | 6 | M12x1,5 | 23 | 57 | 20 | 8 | 17 | 6 | 14 | 1,8 | 6 | 14 | | | on request | | | K0342.03308 | R | stainless steel | without locknut | hardened | 8 | M16x1,5 | 28 | 72 | 26 | 10 | 23 | 8 | 19 | 2,3 | 15 | 35 | | | on request | | | K0342.03410 | R | stainless steel | without locknut | hardened | 10 | M20x1,5 | 28 | 77 | 28 | 12 | 25 | 10 | 22 | 2,8 | 15 | 34 | | | on request | | | K0342.13004 | R | stainless steel | without locknut | not hardened | 4 | M8x1 | 15 | 40 | 15 | 6 | 13 | 4 | 10 | 1 | 6 | 12 | | | on request | | | K0342.13105 | R | stainless steel | without locknut | not hardened | 5 | M10x1 | 23 | 52 | 17 | 7 | 15 | 5 | 13 | 1,3 | 5 | 12 | | | on request | | | K0342.13206 | R | stainless steel | without locknut | not hardened | 6 | M12x1,5 | 23 | 57 | 20 | 8 | 17 | 6 | 14 | 1,8 | 6 | 14 | | | on request | | | K0342.13308 | R | stainless steel | without locknut | not hardened | 8 | M16x1,5 | 28 | 72 | 26 | 10 | 23 | 8 | 19 | 2,3 | 15 | 35 | | | on request | | | K0342.13410 | R | stainless steel | without locknut | not hardened | 10 | M20x1,5 | 28 | 77 | 28 | 12 | 25 | 10 | 22 | 2,8 | 15 | 34 | | | on request | |
|
Indexing plungers, steel or stainless steel with stainless steel pull ring and locknut |
More information |
| Order No. | Form | Main
material | Locknut | Surface finish
body | D | D1 | D4 | L | L1 | L2 | L4 | Travel
S | SW1 | SW2 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| K0342.4004 | S | steel | with locknut | hardened | 4 | M8x1 | 15 | 40 | 15 | 6 | 13 | 4 | 10 | 13 | 1 | 6 | 12 | | | on request | | | K0342.4105 | S | steel | with locknut | hardened | 5 | M10x1 | 23 | 52 | 17 | 7 | 15 | 5 | 13 | 17 | 1,3 | 5 | 12 | | | on request | | | K0342.4206 | S | steel | with locknut | hardened | 6 | M12x1,5 | 23 | 57 | 20 | 8 | 17 | 6 | 14 | 19 | 1,8 | 6 | 14 | | | on request | | | K0342.4308 | S | steel | with locknut | hardened | 8 | M16x1,5 | 28 | 72 | 26 | 10 | 23 | 8 | 19 | 24 | 2,3 | 15 | 35 | | | on request | | | K0342.4410 | S | steel | with locknut | hardened | 10 | M20x1,5 | 28 | 77 | 28 | 12 | 25 | 10 | 22 | 30 | 2,8 | 15 | 34 | | | on request | | | K0342.04004 | S | stainless steel | with locknut | hardened | 4 | M8x1 | 15 | 40 | 15 | 6 | 13 | 4 | 10 | 13 | 1 | 6 | 12 | | | on request | | | K0342.04105 | S | stainless steel | with locknut | hardened | 5 | M10x1 | 23 | 52 | 17 | 7 | 15 | 5 | 13 | 17 | 1,3 | 5 | 12 | | | on request | | | K0342.04206 | S | stainless steel | with locknut | hardened | 6 | M12x1,5 | 23 | 57 | 20 | 8 | 17 | 6 | 14 | 19 | 1,8 | 6 | 14 | | | on request | | | K0342.04308 | S | stainless steel | with locknut | hardened | 8 | M16x1,5 | 28 | 72 | 26 | 10 | 23 | 8 | 19 | 24 | 2,3 | 15 | 35 | | | on request | | | K0342.04410 | S | stainless steel | with locknut | hardened | 10 | M20x1,5 | 28 | 77 | 28 | 12 | 25 | 10 | 22 | 30 | 2,8 | 15 | 34 | | | on request | | | K0342.14004 | S | stainless steel | with locknut | not hardened | 4 | M8x1 | 15 | 40 | 15 | 6 | 13 | 4 | 10 | 13 | 1 | 6 | 12 | | | on request | | | K0342.14105 | S | stainless steel | with locknut | not hardened | 5 | M10x1 | 23 | 52 | 17 | 7 | 15 | 5 | 13 | 17 | 1,3 | 5 | 12 | | | on request | | | K0342.14206 | S | stainless steel | with locknut | not hardened | 6 | M12x1,5 | 23 | 57 | 20 | 8 | 17 | 6 | 14 | 19 | 1,8 | 6 | 14 | | | on request | | | K0342.14308 | S | stainless steel | with locknut | not hardened | 8 | M16x1,5 | 28 | 72 | 26 | 10 | 23 | 8 | 19 | 24 | 2,3 | 15 | 35 | | | on request | | | K0342.14410 | S | stainless steel | with locknut | not hardened | 10 | M20x1,5 | 28 | 77 | 28 | 12 | 25 | 10 | 22 | 30 | 2,8 | 15 | 34 | | | on request | |
|
