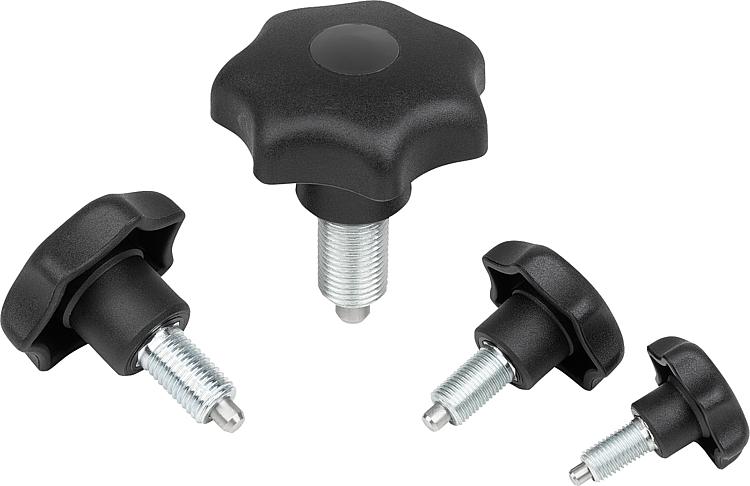

Item description/product images

DescriptionProduct description:The indexing and clamping grips enable the positioning, securing and clamping of diverse positioning elements with just one product. Indexing is carried out using the indexing pin and the item is clamped using the end face of the sleeve.Material:

Threaded sleeve free-cutting steel.
Indexing pin stainless steel 1.4305

Star grip thermoplastic.

Version:Threaded sleeve electro zinc-plated.
Indexing pin bright.

Star grip black grey RAL7021.Advantages:Indexing and clamping with one product.
Ergonomic operation via star grip.On request:Special versions.Accessory:Hex nuts K0700.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1582 Indexing and clamping grips, steel with plastic star grip

261 kB

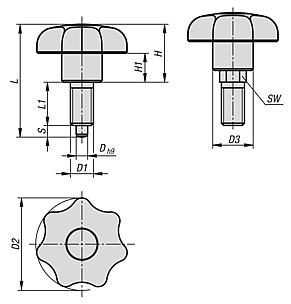

Drawings

Item selection/filter

Order No.	D	D1	D2	D3	H	H1	L	L1	Travel S	SW	Price
K1582.108040	4	M8	32	14	20	10	39	15	4	8	on request
K1582.210050	5	M10	40	18	24,9	13	46,9	17	5	10	on request
K1582.312060	6	M12	50	22	31,8	17	57,8	20	6	12	on request
K1582.416080	8	M16	63	26	40	21	74	26	8	16	on request
K1582.108041	4	M8x1	32	14	20	10	39	15	4	8	on request
K1582.210051	5	M10x1	40	18	24,9	13	46,9	17	5	10	on request
K1582.312061	6	M12x1,5	50	22	31,8	17	57,8	20	6	12	on request
K1582.416081	8	M16x1,5	63	26	40	21	74	26	8	16	on request
