K0748Indexing plungers ECO, steel or stainless steel, short version... |
go back |
|
|
DescriptionProduct description:Indexing plungers are used where any change in locking position due to lateral forces should be prevented. A new indexed position can be only be moved to after the pin has been manually retracted. Form C and D are recommended for applications where the indexing pin should remain disengaged for an extended period and be prevented from springing back.
The thread lock allows the fitting depth to be coordinated exactly with the existing components, so that no stops are required.
Indexing plungers with regular threads and not ground or hardened indexing pins are a cost-effective alternative to existing indexing plungers. However, the precision offered is still sufficient for many applications. The tighter machining tolerances also make these products less sensitive to the alignment errors that can occur when aligning indexing plungers with the hole in the opposite component.
Material:Steel version:
Threaded sleeve free-cutting steel.
Indexing pin 1.4305.
Stainless steel version:
Threaded sleeve and indexing pin 1.4305.
Mushroom grip thermoplastic. Version:Steel version:
Threaded sleeve blue passivated.
Indexing pin not hardened, bright.
Stainless steel version:
Threaded sleeve bright.
Indexing pin not hardened, bright.
Mushroom grip black grey RAL7021.

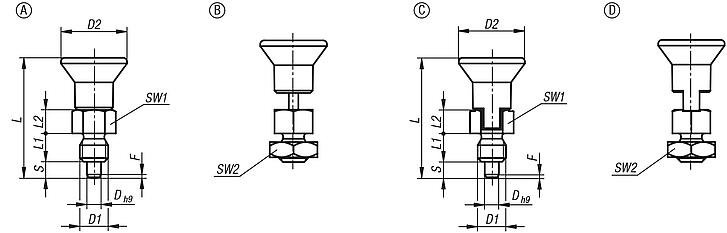

Note:Pay attention to the max. tightening torque when assembling.On request:Special versions.Drawing reference:Form A: non-lockout type, without locknut
Form B: non-lockout type, with locknut
Form C: lockout type, without locknut
Form D: lockout type, with locknut DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
Indexing plungers ECO, steel or stainless steel, short version with plastic mushroom grip, no locking slot or locknut |
More information |
| Order No. | Form | Main
material | D | D1 | D2 | L | L1 | L2 | Travel
S | SW1 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Tightening
torque
max. Nm | CAD | Acc. | Price | Order |
|---|
| K0748.01004060 | A | steel | 4 | M6 | 18 | 29,5 | 6 | 6 | 4 | 10 | 1 | 3,5 | 9 | 2 |  | | on request | | | K0748.01004061 | A | steel | 4 | M6x0,75 | 18 | 29,5 | 6 | 6 | 4 | 10 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.01004080 | A | steel | 4 | M8 | 18 | 29,5 | 6 | 6 | 4 | 10 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.01004081 | A | steel | 4 | M8x1 | 18 | 29,5 | 6 | 6 | 4 | 10 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.01105080 | A | steel | 5 | M8 | 21 | 34,5 | 8 | 7 | 5 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.01105081 | A | steel | 5 | M8x1 | 21 | 34,5 | 8 | 7 | 5 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.01105100 | A | steel | 5 | M10 | 21 | 34,5 | 8 | 7 | 5 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.01105101 | A | steel | 5 | M10x1 | 21 | 34,5 | 8 | 7 | 5 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.01206100 | A | steel | 6 | M10 | 25 | 41,7 | 10 | 8 | 6 | 14 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.01206101 | A | steel | 6 | M10x1 | 25 | 41,7 | 10 | 8 | 6 | 14 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.01206120 | A | steel | 6 | M12 | 25 | 41,7 | 10 | 8 | 6 | 14 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.01206121 | A | steel | 6 | M12x1,5 | 25 | 41,7 | 10 | 8 | 6 | 14 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.01308120 | A | steel | 8 | M12 | 33 | 54 | 12 | 10 | 8 | 19 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.01308121 | A | steel | 8 | M12x1,5 | 33 | 54 | 12 | 10 | 8 | 19 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.01308160 | A | steel | 8 | M16 | 33 | 54 | 12 | 10 | 8 | 19 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.01308161 | A | steel | 8 | M16x1,5 | 33 | 54 | 12 | 10 | 8 | 19 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.01903060 | A | steel | 3 | M6 | 14 | 25,5 | 6 | 5 | 3,5 | 8 | 0,8 | 3,5 | 8 | 2 | | | on request | | | K0748.01903061 | A | steel | 3 | M6x0,75 | 14 | 25,5 | 6 | 5 | 3,5 | 8 | 0,8 | 3,5 | 8 | 2 | | | on request | | | K0748.11004060 | A | stainless steel | 4 | M6 | 18 | 29,5 | 6 | 6 | 4 | 10 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.11004061 | A | stainless steel | 4 | M6x0,75 | 18 | 29,5 | 6 | 6 | 4 | 10 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.11004080 | A | stainless steel | 4 | M8 | 18 | 29,5 | 6 | 6 | 4 | 10 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.11004081 | A | stainless steel | 4 | M8x1 | 18 | 29,5 | 6 | 6 | 4 | 10 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.11105080 | A | stainless steel | 5 | M8 | 21 | 34,5 | 8 | 7 | 5 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.11105081 | A | stainless steel | 5 | M8x1 | 21 | 34,5 | 8 | 7 | 5 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.11105100 | A | stainless steel | 5 | M10 | 21 | 34,5 | 8 | 7 | 5 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.11105101 | A | stainless steel | 5 | M10x1 | 21 | 34,5 | 8 | 7 | 5 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.11206100 | A | stainless steel | 6 | M10 | 25 | 41,7 | 10 | 8 | 6 | 14 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.11206101 | A | stainless steel | 6 | M10x1 | 25 | 41,7 | 10 | 8 | 6 | 14 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.11206120 | A | stainless steel | 6 | M12 | 25 | 41,7 | 10 | 8 | 6 | 14 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.11206121 | A | stainless steel | 6 | M12x1,5 | 25 | 41,7 | 10 | 8 | 6 | 14 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.11308120 | A | stainless steel | 8 | M12 | 33 | 54 | 12 | 10 | 8 | 19 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.11308121 | A | stainless steel | 8 | M12x1,5 | 33 | 54 | 12 | 10 | 8 | 19 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.11308160 | A | stainless steel | 8 | M16 | 33 | 54 | 12 | 10 | 8 | 19 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.11308161 | A | stainless steel | 8 | M16x1,5 | 33 | 54 | 12 | 10 | 8 | 19 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.11903060 | A | stainless steel | 3 | M6 | 14 | 25,5 | 6 | 5 | 3,5 | 8 | 0,8 | 3,5 | 8 | 2 | | | on request | | | K0748.11903061 | A | stainless steel | 3 | M6x0,75 | 14 | 25,5 | 6 | 5 | 3,5 | 8 | 0,8 | 3,5 | 8 | 2 | | | on request | |
|
Indexing plungers ECO, steel or stainless steel, short version with plastic mushroom grip and locknut |
More information |
| Order No. | Form | Main
material | D | D1 | D2 | L | L1 | L2 | Travel
S | SW1 | SW2 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Tightening
torque
max. Nm | CAD | Acc. | Price | Order |
|---|
| K0748.02004060 | B | steel | 4 | M6 | 18 | 29,5 | 6 | 6 | 4 | 10 | 10 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.02004061 | B | steel | 4 | M6x0,75 | 18 | 29,5 | 6 | 6 | 4 | 10 | 10 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.02004080 | B | steel | 4 | M8 | 18 | 29,5 | 6 | 6 | 4 | 10 | 13 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.02004081 | B | steel | 4 | M8x1 | 18 | 29,5 | 6 | 6 | 4 | 10 | 13 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.02105080 | B | steel | 5 | M8 | 21 | 34,5 | 8 | 7 | 5 | 13 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.02105081 | B | steel | 5 | M8x1 | 21 | 34,5 | 8 | 7 | 5 | 13 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.02105100 | B | steel | 5 | M10 | 21 | 34,5 | 8 | 7 | 5 | 13 | 17 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.02105101 | B | steel | 5 | M10x1 | 21 | 34,5 | 8 | 7 | 5 | 13 | 17 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.02206100 | B | steel | 6 | M10 | 25 | 41,7 | 10 | 8 | 6 | 14 | 17 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.02206101 | B | steel | 6 | M10x1 | 25 | 41,7 | 10 | 8 | 6 | 14 | 17 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.02206120 | B | steel | 6 | M12 | 25 | 41,7 | 10 | 8 | 6 | 14 | 19 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.02206121 | B | steel | 6 | M12x1,5 | 25 | 41,7 | 10 | 8 | 6 | 14 | 19 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.02308120 | B | steel | 8 | M12 | 33 | 54 | 12 | 10 | 8 | 19 | 19 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.02308121 | B | steel | 8 | M12x1,5 | 33 | 54 | 12 | 10 | 8 | 19 | 19 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.02308160 | B | steel | 8 | M16 | 33 | 54 | 12 | 10 | 8 | 19 | 24 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.02308161 | B | steel | 8 | M16x1,5 | 33 | 54 | 12 | 10 | 8 | 19 | 24 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.02903060 | B | steel | 3 | M6 | 14 | 25,5 | 6 | 5 | 3,5 | 8 | 10 | 0,8 | 3,5 | 8 | 2 | | | on request | | | K0748.02903061 | B | steel | 3 | M6x0,75 | 14 | 25,5 | 6 | 5 | 3,5 | 8 | 10 | 0,8 | 3,5 | 8 | 2 | | | on request | | | K0748.12004060 | B | stainless steel | 4 | M6 | 18 | 29,5 | 6 | 6 | 4 | 10 | 10 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.12004061 | B | stainless steel | 4 | M6x0,75 | 18 | 29,5 | 6 | 6 | 4 | 10 | 10 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.12004080 | B | stainless steel | 4 | M8 | 18 | 29,5 | 6 | 6 | 4 | 10 | 13 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.12004081 | B | stainless steel | 4 | M8x1 | 18 | 29,5 | 6 | 6 | 4 | 10 | 13 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.12105080 | B | stainless steel | 5 | M8 | 21 | 34,5 | 8 | 7 | 5 | 13 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.12105081 | B | stainless steel | 5 | M8x1 | 21 | 34,5 | 8 | 7 | 5 | 13 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.12105100 | B | stainless steel | 5 | M10 | 21 | 34,5 | 8 | 7 | 5 | 13 | 17 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.12105101 | B | stainless steel | 5 | M10x1 | 21 | 34,5 | 8 | 7 | 5 | 13 | 17 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.12206100 | B | stainless steel | 6 | M10 | 25 | 41,7 | 10 | 8 | 6 | 14 | 17 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.12206101 | B | stainless steel | 6 | M10x1 | 25 | 41,7 | 10 | 8 | 6 | 14 | 17 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.12206120 | B | stainless steel | 6 | M12 | 25 | 41,7 | 10 | 8 | 6 | 14 | 19 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.12206121 | B | stainless steel | 6 | M12x1,5 | 25 | 41,7 | 10 | 8 | 6 | 14 | 19 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.12308120 | B | stainless steel | 8 | M12 | 33 | 54 | 12 | 10 | 8 | 19 | 19 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.12308121 | B | stainless steel | 8 | M12x1,5 | 33 | 54 | 12 | 10 | 8 | 19 | 19 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.12308160 | B | stainless steel | 8 | M16 | 33 | 54 | 12 | 10 | 8 | 19 | 24 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.12308161 | B | stainless steel | 8 | M16x1,5 | 33 | 54 | 12 | 10 | 8 | 19 | 24 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.12903060 | B | stainless steel | 3 | M6 | 14 | 25,5 | 6 | 5 | 3,5 | 8 | 10 | 0,8 | 3,5 | 8 | 2 | | | on request | | | K0748.12903061 | B | stainless steel | 3 | M6x0,75 | 14 | 25,5 | 6 | 5 | 3,5 | 8 | 10 | 0,8 | 3,5 | 8 | 2 | | | on request | |
|
Indexing plungers ECO, steel or stainless steel, short version with plastic mushroom grip and locking slot |
More information |
| Order No. | Form | Main
material | D | D1 | D2 | L | L1 | L2 | Travel
S | SW1 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Tightening
torque
max. Nm | CAD | Acc. | Price | Order |
|---|
| K0748.03004060 | C | steel | 4 | M6 | 18 | 29,5 | 6 | 6 | 4 | 10 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.03004061 | C | steel | 4 | M6x0,75 | 18 | 29,5 | 6 | 6 | 4 | 10 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.03004080 | C | steel | 4 | M8 | 18 | 29,5 | 6 | 6 | 4 | 10 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.03004081 | C | steel | 4 | M8x1 | 18 | 29,5 | 6 | 6 | 4 | 10 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.03105080 | C | steel | 5 | M8 | 21 | 34,5 | 8 | 7 | 5 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.03105081 | C | steel | 5 | M8x1 | 21 | 34,5 | 8 | 7 | 5 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.03105100 | C | steel | 5 | M10 | 21 | 34,5 | 8 | 7 | 5 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.03105101 | C | steel | 5 | M10x1 | 21 | 34,5 | 8 | 7 | 5 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.03206100 | C | steel | 6 | M10 | 25 | 41,7 | 10 | 8 | 6 | 14 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.03206101 | C | steel | 6 | M10x1 | 25 | 41,7 | 10 | 8 | 6 | 14 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.03206120 | C | steel | 6 | M12 | 25 | 41,7 | 10 | 8 | 6 | 14 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.03206121 | C | steel | 6 | M12x1,5 | 25 | 41,7 | 10 | 8 | 6 | 14 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.03308120 | C | steel | 8 | M12 | 33 | 54 | 12 | 10 | 8 | 19 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.03308121 | C | steel | 8 | M12x1,5 | 33 | 54 | 12 | 10 | 8 | 19 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.03308160 | C | steel | 8 | M16 | 33 | 54 | 12 | 10 | 8 | 19 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.03308161 | C | steel | 8 | M16x1,5 | 33 | 54 | 12 | 10 | 8 | 19 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.03903060 | C | steel | 3 | M6 | 14 | 25,5 | 6 | 5 | 3,5 | 8 | 0,8 | 3,5 | 8 | 2 | | | on request | | | K0748.03903061 | C | steel | 3 | M6x0,75 | 14 | 25,5 | 6 | 5 | 3,5 | 8 | 0,8 | 3,5 | 8 | 2 | | | on request | | | K0748.13004060 | C | stainless steel | 4 | M6 | 18 | 29,5 | 6 | 6 | 4 | 10 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.13004061 | C | stainless steel | 4 | M6x0,75 | 18 | 29,5 | 6 | 6 | 4 | 10 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.13004080 | C | stainless steel | 4 | M8 | 18 | 29,5 | 6 | 6 | 4 | 10 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.13004081 | C | stainless steel | 4 | M8x1 | 18 | 29,5 | 6 | 6 | 4 | 10 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.13105080 | C | stainless steel | 5 | M8 | 21 | 34,5 | 8 | 7 | 5 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.13105081 | C | stainless steel | 5 | M8x1 | 21 | 34,5 | 8 | 7 | 5 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.13105100 | C | stainless steel | 5 | M10 | 21 | 34,5 | 8 | 7 | 5 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.13105101 | C | stainless steel | 5 | M10x1 | 21 | 34,5 | 8 | 7 | 5 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.13206100 | C | stainless steel | 6 | M10 | 25 | 41,7 | 10 | 8 | 6 | 14 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.13206101 | C | stainless steel | 6 | M10x1 | 25 | 41,7 | 10 | 8 | 6 | 14 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.13206120 | C | stainless steel | 6 | M12 | 25 | 41,7 | 10 | 8 | 6 | 14 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.13206121 | C | stainless steel | 6 | M12x1,5 | 25 | 41,7 | 10 | 8 | 6 | 14 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.13308120 | C | stainless steel | 8 | M12 | 33 | 54 | 12 | 10 | 8 | 19 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.13308121 | C | stainless steel | 8 | M12x1,5 | 33 | 54 | 12 | 10 | 8 | 19 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.13308160 | C | stainless steel | 8 | M16 | 33 | 54 | 12 | 10 | 8 | 19 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.13308161 | C | stainless steel | 8 | M16x1,5 | 33 | 54 | 12 | 10 | 8 | 19 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.13903060 | C | stainless steel | 3 | M6 | 14 | 25,5 | 6 | 5 | 3,5 | 8 | 0,8 | 3,5 | 8 | 2 | | | on request | | | K0748.13903061 | C | stainless steel | 3 | M6x0,75 | 14 | 25,5 | 6 | 5 | 3,5 | 8 | 0,8 | 3,5 | 8 | 2 | | | on request | |
|
Indexing plungers ECO, steel or stainless steel, short version with plastic mushroom grip, locking slot and locknut |
More information |
| Order No. | Form | Main
material | D | D1 | D2 | L | L1 | L2 | Travel
S | SW1 | SW2 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Tightening
torque
max. Nm | CAD | Acc. | Price | Order |
|---|
| K0748.04004060 | D | steel | 4 | M6 | 18 | 29,5 | 6 | 6 | 4 | 10 | 10 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.04004061 | D | steel | 4 | M6x0,75 | 18 | 29,5 | 6 | 6 | 4 | 10 | 10 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.04004080 | D | steel | 4 | M8 | 18 | 29,5 | 6 | 6 | 4 | 10 | 13 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.04004081 | D | steel | 4 | M8x1 | 18 | 29,5 | 6 | 6 | 4 | 10 | 13 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.04105080 | D | steel | 5 | M8 | 21 | 34,5 | 8 | 7 | 5 | 13 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.04105081 | D | steel | 5 | M8x1 | 21 | 34,5 | 8 | 7 | 5 | 13 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.04105100 | D | steel | 5 | M10 | 21 | 34,5 | 8 | 7 | 5 | 13 | 17 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.04105101 | D | steel | 5 | M10x1 | 21 | 34,5 | 8 | 7 | 5 | 13 | 17 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.04206100 | D | steel | 6 | M10 | 25 | 41,7 | 10 | 8 | 6 | 14 | 17 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.04206101 | D | steel | 6 | M10x1 | 25 | 41,7 | 10 | 8 | 6 | 14 | 17 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.04206120 | D | steel | 6 | M12 | 25 | 41,7 | 10 | 8 | 6 | 14 | 19 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.04206121 | D | steel | 6 | M12x1,5 | 25 | 41,7 | 10 | 8 | 6 | 14 | 19 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.04308120 | D | steel | 8 | M12 | 33 | 54 | 12 | 10 | 8 | 19 | 19 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.04308121 | D | steel | 8 | M12x1,5 | 33 | 54 | 12 | 10 | 8 | 19 | 19 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.04308160 | D | steel | 8 | M16 | 33 | 54 | 12 | 10 | 8 | 19 | 24 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.04308161 | D | steel | 8 | M16x1,5 | 33 | 54 | 12 | 10 | 8 | 19 | 24 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.04903060 | D | steel | 3 | M6 | 14 | 25,5 | 6 | 5 | 3,5 | 8 | 10 | 0,8 | 3,5 | 8 | 2 | | | on request | | | K0748.04903061 | D | steel | 3 | M6x0,75 | 14 | 25,5 | 6 | 5 | 3,5 | 8 | 10 | 0,8 | 3,5 | 8 | 2 | | | on request | | | K0748.14004060 | D | stainless steel | 4 | M6 | 18 | 29,5 | 6 | 6 | 4 | 10 | 10 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.14004061 | D | stainless steel | 4 | M6x0,75 | 18 | 29,5 | 6 | 6 | 4 | 10 | 10 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.14004080 | D | stainless steel | 4 | M8 | 18 | 29,5 | 6 | 6 | 4 | 10 | 13 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.14004081 | D | stainless steel | 4 | M8x1 | 18 | 29,5 | 6 | 6 | 4 | 10 | 13 | 1 | 3,5 | 9 | 2 | | | on request | | | K0748.14105080 | D | stainless steel | 5 | M8 | 21 | 34,5 | 8 | 7 | 5 | 13 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.14105081 | D | stainless steel | 5 | M8x1 | 21 | 34,5 | 8 | 7 | 5 | 13 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.14105100 | D | stainless steel | 5 | M10 | 21 | 34,5 | 8 | 7 | 5 | 13 | 17 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.14105101 | D | stainless steel | 5 | M10x1 | 21 | 34,5 | 8 | 7 | 5 | 13 | 17 | 1,3 | 6 | 12 | 7 | | | on request | | | K0748.14206100 | D | stainless steel | 6 | M10 | 25 | 41,7 | 10 | 8 | 6 | 14 | 17 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.14206101 | D | stainless steel | 6 | M10x1 | 25 | 41,7 | 10 | 8 | 6 | 14 | 17 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.14206120 | D | stainless steel | 6 | M12 | 25 | 41,7 | 10 | 8 | 6 | 14 | 19 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.14206121 | D | stainless steel | 6 | M12x1,5 | 25 | 41,7 | 10 | 8 | 6 | 14 | 19 | 1,8 | 6 | 12 | 15 | | | on request | | | K0748.14308120 | D | stainless steel | 8 | M12 | 33 | 54 | 12 | 10 | 8 | 19 | 19 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.14308121 | D | stainless steel | 8 | M12x1,5 | 33 | 54 | 12 | 10 | 8 | 19 | 19 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.14308160 | D | stainless steel | 8 | M16 | 33 | 54 | 12 | 10 | 8 | 19 | 24 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.14308161 | D | stainless steel | 8 | M16x1,5 | 33 | 54 | 12 | 10 | 8 | 19 | 24 | 2,3 | 6 | 13 | 20 | | | on request | | | K0748.14903060 | D | stainless steel | 3 | M6 | 14 | 25,5 | 6 | 5 | 3,5 | 8 | 10 | 0,8 | 3,5 | 8 | 2 | | | on request | | | K0748.14903061 | D | stainless steel | 3 | M6x0,75 | 14 | 25,5 | 6 | 5 | 3,5 | 8 | 10 | 0,8 | 3,5 | 8 | 2 | | | on request | |
|
