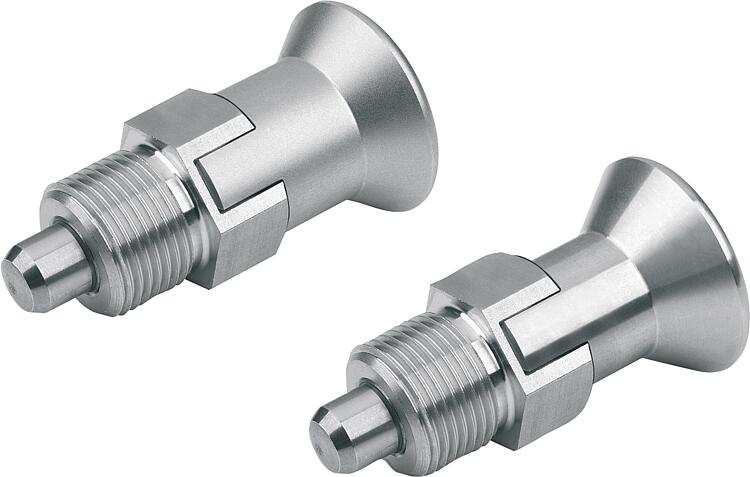

        Indexing plungers, stainless steel, short version with stainless steel mushroom grip and locking slot

Item description/product images

DescriptionProduct description:Indexing plungers are used where it is necessary to prevent changes of position due to lateral forces.
Some examples of this are for length, height and position indexing in machines, equipment, furniture and special vehicle construction.

A new indexed position can be only be moved to after the pin has been manually retracted. Form C and D are recommended for applications where the indexing pin should remain disengaged for an extended period and be prevented from springing back.Material:

Stainless steel version A1:
Threaded sleeve, mushroom grip and unhardened indexing pin 1.4305.
Hardened indexing pin 1.4034.
Spring 1.4310.

Stainless steel version A4:
Threaded sleeve, mushroom grip and indexing pin 1.4404.
Spring 1.4401.

Version:Stainless steel A1 version:
threaded sleeve bright.
Mushroom grip bright.
Indexing pin hardened or not hardened, ground and bright.

Stainless steel A4 version:
threaded sleeve bright.
Mushroom grip bright or abrasive blasted.
Indexing pin ground, chemically nickel-plated or bright.Note:The materials used enable a wide range of applications.
Indexing plungers made from A4 stainless steel are recommended for applications with very high corrosion resistance requirements.
On request:Special versions.Accessory:Positioning bushes K1290.
Spacer rings K0665.
Fastening set stainless steel for thin-walled parts K2146.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K2194_C Indexing plungers, stainless steel, short version with stainless steel mushroom grip and locking slot

287 kB

Drawings

Item selection/filter

Order No.	Form	Main material	Steel code	Mushroom grip	locating pin	D	D1	D2	L	L1	L2	Travel S	SW1	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price
K2194.117903	C	stainless steel	1.4305	bright	not hardened	3	M6x0,75	14	25,5	6	5	3,5	8	0,8	3	10	on request
K2194.117004	C	stainless steel	1.4305	bright	not hardened	4	M8x1	18	29,5	6	6	4	10	1	4	12	on request
K2194.117105	C	stainless steel	1.4305	bright	not hardened	5	M10x1	21	34,5	8	7	5	13	1,3	5	12	on request
K2194.117206	C	stainless steel	1.4305	bright	not hardened	6	M12x1,5	25	41,7	10	8	6	14	1,8	6	14	on request
K2194.117308	C	stainless steel	1.4305	bright	not hardened	8	M16x1,5	33	54	12	10	8	19	2,3	14	28	on request
K2194.117410	C	stainless steel	1.4305	bright	not hardened	10	M20x1,5	33	61	15	12	10	22	2,8	15	32	on request
K2194.007903	C	stainless steel	1.4034	bright	hardened	3	M6x0,75	14	25,5	6	5	3,5	8	0,8	3	10	on request
K2194.007004	C	stainless steel	1.4034	bright	hardened	4	M8x1	18	29,5	6	6	4	10	1	4	12	on request
K2194.007105	C	stainless steel	1.4034	bright	hardened	5	M10x1	21	34,5	8	7	5	13	1,3	5	12	on request
K2194.007206	C	stainless steel	1.4034	bright	hardened	6	M12x1,5	25	41,7	10	8	6	14	1,8	6	14	on request
K2194.007308	C	stainless steel	1.4034	bright	hardened	8	M16x1,5	33	54	12	10	8	19	2,3	14	28	on request
K2194.007410	C	stainless steel	1.4034	bright	hardened	10	M20x1,5	33	61	15	12	10	22	2,8	15	32	on request
K2194.067903	C	stainless steel	1.4404	bright	nickel-plated	3	M6x0,75	14	25,5	6	5	3,5	8	0,8	3	10	on request
K2194.067004	C	stainless steel	1.4404	bright	nickel-plated	4	M8x1	18	29,5	6	6	4	10	1	4	12	on request
K2194.067105	C	stainless steel	1.4404	bright	nickel-plated	5	M10x1	21	34,5	8	7	5	13	1,3	5	12	on request
K2194.067206	C	stainless steel	1.4404	bright	nickel-plated	6	M12x1,5	25	41,7	10	8	6	14	1,8	6	14	on request
K2194.067308	C	stainless steel	1.4404	bright	nickel-plated	8	M16x1,5	33	54	12	10	8	19	2,3	14	28	on request
K2194.067410	C	stainless steel	1.4404	bright	nickel-plated	10	M20x1,5	33	61	15	12	10	22	2,8	15	32	on request
K2194.177903	C	stainless steel	1.4404	bright	bright	3	M6x0,75	14	25,5	6	5	3,5	8	0,8	3	10	on request
K2194.177004	C	stainless steel	1.4404	bright	bright	4	M8x1	18	29,5	6	6	4	10	1	4	12	on request
K2194.177105	C	stainless steel	1.4404	bright	bright	5	M10x1	21	34,5	8	7	5	13	1,3	5	12	on request
K2194.177206	C	stainless steel	1.4404	bright	bright	6	M12x1,5	25	41,7	10	8	6	14	1,8	6	14	on request
K2194.177308	C	stainless steel	1.4404	bright	bright	8	M16x1,5	33	54	12	10	8	19	2,3	14	28	on request
K2194.177410	C	stainless steel	1.4404	bright	bright	10	M20x1,5	33	61	15	12	10	22	2,8	15	32	on request
K2194.0679031	C	stainless steel	1.4404	blasted	nickel-plated	3	M6x0,75	14	25,5	6	5	3,5	8	0,8	3	10	on request
K2194.0670041	C	stainless steel	1.4404	blasted	nickel-plated	4	M8x1	18	29,5	6	6	4	10	1	4	12	on request
K2194.0671051	C	stainless steel	1.4404	blasted	nickel-plated	5	M10x1	21	34,5	8	7	5	13	1,3	5	12	on request
K2194.0672061	C	stainless steel	1.4404	blasted	nickel-plated	6	M12x1,5	25	41,7	10	8	6	14	1,8	6	14	on request
K2194.0673081	C	stainless steel	1.4404	blasted	nickel-plated	8	M16x1,5	33	54	12	10	8	19	2,3	14	28	on request
K2194.0674101	C	stainless steel	1.4404	blasted	nickel-plated	10	M20x1,5	33	61	15	12	10	22	2,8	15	32	on request
K2194.1779031	C	stainless steel	1.4404	blasted	bright	3	M6x0,75	14	25,5	6	5	3,5	8	0,8	3	10	on request
K2194.1770041	C	stainless steel	1.4404	blasted	bright	4	M8x1	18	29,5	6	6	4	10	1	4	12	on request
K2194.1771051	C	stainless steel	1.4404	blasted	bright	5	M10x1	21	34,5	8	7	5	13	1,3	5	12	on request
K2194.1772061	C	stainless steel	1.4404	blasted	bright	6	M12x1,5	25	41,7	10	8	6	14	1,8	6	14	on request
K2194.1773081	C	stainless steel	1.4404	blasted	bright	8	M16x1,5	33	54	12	10	8	19	2,3	14	28	on request
K2194.1774101	C	stainless steel	1.4404	blasted	bright	10	M20x1,5	33	61	15	12	10	22	2,8	15	32	on request
