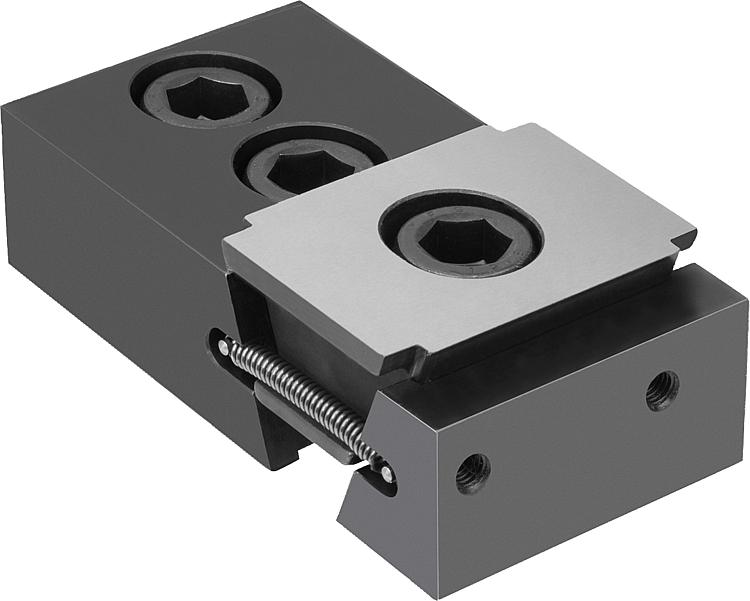

K1745_DWedge clamps with fixed jaw, Form D, with machining allowance |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:The functioning principle make the wedge clamps ideal for multi-clamping.
The wedge shape creates high clamping forces.
These wedge clamps set into a T-slot for clamping.
Tightening the clamping screw moves the clamping segments outwards and presses the workpiece against the fixed jaws of the machining fixture.
The wedge has a slightly elongated hole allowing for movement to compensate for tolerances.
Displacement: M12 = ±1.0 mm, M16 = ±1.5 mm.Material:Double wedge and clamping segments mild steel.Version:Double wedge and clamping segments hardened, phosphated.Note:The two screw-on holes in the clamping faces also enable seating ledges to be mounted so as to optimise the clamping depth of the workpieces.Supplied withWedge clamps
Fastening screws. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | L
min. | L
max. | B
| H | B1 | H1 | H3 | D
Internal
thread | G
cap screw
DIN 912 | Z
cap screw
DIN 912 | Clamping
force
max. kN | Tightening
torque
max. Nm | CAD | Acc. | Price | Order |
|---|
| K1745.0500412 | D | 98,5 | 104,5 | 50 | 25 | 30 | 12,5 | 3,5 | M5 | M12x30 | M12x25 | 30 | 85 |  | | on request | | | K1745.0720412 | D | 123,3 | 130,7 | 72 | 39,7 | 44 | 21,3 | 3,5 | M6 | M12X50 | M12X40 | 30 | 85 | | | on request | | | K1745.0720416 | D | 123,3 | 130,7 | 72 | 39,7 | 44 | 21,3 | 3,5 | M6 | M16x50 | M16X40 | 50 | 150 | | | on request | | | K1745.1000416 | D | 131,3 | 141,2 | 100 | 42,6 | 64 | 21,6 | 5 | M8 | M16x50 | M16X40 | 50 | 150 | | | on request | |
