Wedge clampsmachinable

Wedge clamps machinable

go back

Item description/product images

DescriptionMaterial:Wedge and jaw segments carbon steel.Version:Wedge and jaw segments tempered, black.Note:These wedge clamps have extra long jaws. This extra material allows the jaws to machined to suit the form of the workpiece.
The functioning principle make the wedge clamps ideal for series clamping. The wedge form can exert high clamping forces.
These wedge clamps can be mounted in grid holes or T-slots. Tightening the socket screw moves the wedge down and the jaws out pressing the workpieces against the fixtures fixed stops.
The wedge has a slightly elongated hole allowing for movement to compensate for tolerances.

Spread width:
M8 = ±0.5 mm
M10 = ±1.0 mm
M12 = ±1.0 mm
M16 = ±1.5 mm

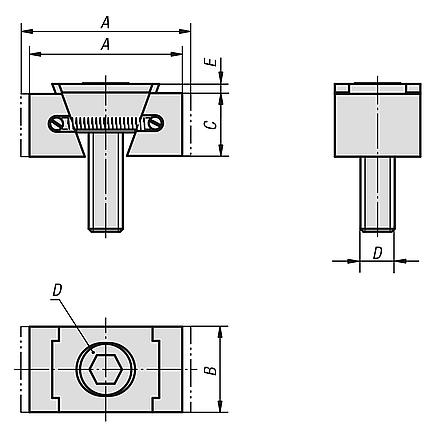

Note:These wedge clamps have a machining allowance per jaw of 3 mm for version M8 and 5 mm for versions M10, M12 and M16.Drawing reference:
D) DIN 6912 cap screw

1) wedge clamps
2) workpiece
3) fixed stop
4) base plate
5) hydraulic/pneumatic cylinder
Special features:
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0649 Wedge clampsmachinable 200 kB


Wedge clampsmachinable

Item selection/filter

Order No.


max. kN
max. Nm
K0649.3108narrow36,539,52415M8X2521119 on request
K0649.3110narrow42472819M10X253,51537 on request
K0649.3112narrow5459,53022M12X403,52365 on request
K0649.3116narrow65724029M16X60438160 on request
K0649.3208wide36,539,53015M8X2521119 on request
K0649.3210wide42473819M10X253,51537 on request
K0649.3212wide5459,54822M12X403,52365 on request
K0649.3216wide65724829M16X60438160 on request
