        Hexagon head bolts DIN 933/ISO 4017, stainless steel

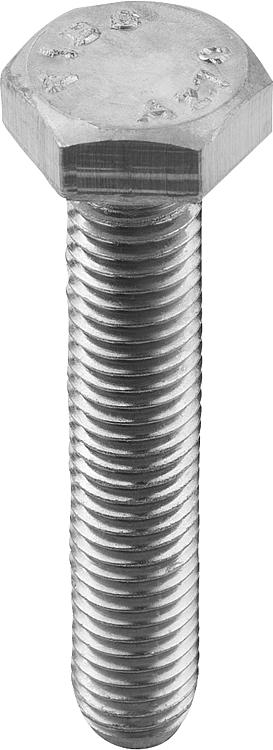

Item description/product images

DescriptionMaterial:Stainless steel A2 or stainless steel A4.Version:Stainless steel A2-70, bright.
Stainless steel A4-70, bright.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0871_ES Hexagon head bolts DIN 933/ISO 4017, stainless steel

160 kB

Overview of standards for fasteners

713 kB

Screw surface finishes

121 kB

Drawings

Item selection/filter

Order No.	Main material	Grade	Surface finish body	D	L	K	SW	E	DIN	ISO	Price
K0871.104X10	stainless steel A2	70	bright	M4	10	2,8	7	7,66	DIN 933	-	on request
K0871.104X12	stainless steel A2	70	bright	M4	12	2,8	7	7,66	DIN 933	-	on request
K0871.104X16	stainless steel A2	70	bright	M4	16	2,8	7	7,66	DIN 933	-	on request
K0871.104X18	stainless steel A2	70	bright	M4	18	2,8	7	7,66	DIN 933	-	on request
K0871.104X20	stainless steel A2	70	bright	M4	20	2,8	7	7,66	DIN 933	-	on request
K0871.104X25	stainless steel A2	70	bright	M4	25	2,8	7	7,66	DIN 933	-	on request
K0871.105X10	stainless steel A2	70	bright	M5	10	3,5	8	8,79	DIN 933	-	on request
K0871.105X12	stainless steel A2	70	bright	M5	12	3,5	8	8,79	DIN 933	-	on request
K0871.105X16	stainless steel A2	70	bright	M5	16	3,5	8	8,79	DIN 933	-	on request
K0871.105X18	stainless steel A2	70	bright	M5	18	3,5	8	8,79	DIN 933	-	on request
K0871.105X20	stainless steel A2	70	bright	M5	20	3,5	8	8,79	DIN 933	-	on request
K0871.105X25	stainless steel A2	70	bright	M5	25	3,5	8	8,79	DIN 933	-	on request
K0871.105X30	stainless steel A2	70	bright	M5	30	3,5	8	8,79	DIN 933	-	on request
K0871.105X35	stainless steel A2	70	bright	M5	35	3,5	8	8,79	DIN 933	-	on request
K0871.105X40	stainless steel A2	70	bright	M5	40	3,5	8	8,79	DIN 933	-	on request
K0871.106X10	stainless steel A2	70	bright	M6	10	4	10	11,05	DIN 933	-	on request
K0871.106X12	stainless steel A2	70	bright	M6	12	4	10	11,05	DIN 933	-	on request
K0871.106X16	stainless steel A2	70	bright	M6	16	4	10	11,05	DIN 933	-	on request
K0871.106X18	stainless steel A2	70	bright	M6	18	4	10	11,05	DIN 933	-	on request
K0871.106X20	stainless steel A2	70	bright	M6	20	4	10	11,05	DIN 933	-	on request
K0871.106X25	stainless steel A2	70	bright	M6	25	4	10	11,05	DIN 933	-	on request
K0871.106X30	stainless steel A2	70	bright	M6	30	4	10	11,05	DIN 933	-	on request
K0871.106X35	stainless steel A2	70	bright	M6	35	4	10	11,05	DIN 933	-	on request
K0871.106X40	stainless steel A2	70	bright	M6	40	4	10	11,05	DIN 933	-	on request
K0871.106X45	stainless steel A2	70	bright	M6	45	4	10	11,05	DIN 933	-	on request
K0871.106X50	stainless steel A2	70	bright	M6	50	4	10	11,05	DIN 933	-	on request
K0871.106X55	stainless steel A2	70	bright	M6	55	4	10	11,05	DIN 933	-	on request
K0871.106X60	stainless steel A2	70	bright	M6	60	4	10	11,05	DIN 933	-	on request
K0871.108X16	stainless steel A2	70	bright	M8	16	5,3	13	14,38	DIN 933	-	on request
K0871.108X18	stainless steel A2	70	bright	M8	18	5,3	13	14,38	DIN 933	-	on request
K0871.108X20	stainless steel A2	70	bright	M8	20	5,3	13	14,38	DIN 933	-	on request
K0871.108X25	stainless steel A2	70	bright	M8	25	5,3	13	14,38	DIN 933	-	on request
K0871.108X30	stainless steel A2	70	bright	M8	30	5,3	13	14,38	DIN 933	-	on request
K0871.108X35	stainless steel A2	70	bright	M8	35	5,3	13	14,38	DIN 933	-	on request
K0871.108X40	stainless steel A2	70	bright	M8	40	5,3	13	14,38	DIN 933	-	on request
K0871.108X45	stainless steel A2	70	bright	M8	45	5,3	13	14,38	DIN 933	-	on request
K0871.108X50	stainless steel A2	70	bright	M8	50	5,3	13	14,38	DIN 933	-	on request
K0871.108X60	stainless steel A2	70	bright	M8	60	5,3	13	14,38	DIN 933	-	on request
K0871.108X70	stainless steel A2	70	bright	M8	70	5,3	13	14,38	DIN 933	-	on request
K0871.108X80	stainless steel A2	70	bright	M8	80	5,3	13	14,38	DIN 933	-	on request
K0871.108X90	stainless steel A2	70	bright	M8	90	5,3	13	14,38	DIN 933	-	on request
K0871.108X100	stainless steel A2	70	bright	M8	100	5,3	13	14,38	DIN 933	-	on request
K0871.110X16	stainless steel A2	70	bright	M10	16	6,4	17	18,9	DIN 933	-	on request
K0871.110X18	stainless steel A2	70	bright	M10	18	6,4	17	18,9	DIN 933	-	on request
K0871.110X20	stainless steel A2	70	bright	M10	20	6,4	17	18,9	DIN 933	-	on request
K0871.110X25	stainless steel A2	70	bright	M10	25	6,4	17	18,9	DIN 933	-	on request
K0871.110X30	stainless steel A2	70	bright	M10	30	6,4	17	18,9	DIN 933	-	on request
K0871.110X35	stainless steel A2	70	bright	M10	35	6,4	17	18,9	DIN 933	-	on request
K0871.110X40	stainless steel A2	70	bright	M10	40	6,4	17	18,9	DIN 933	-	on request
K0871.110X45	stainless steel A2	70	bright	M10	45	6,4	17	18,9	DIN 933	-	on request
K0871.110X50	stainless steel A2	70	bright	M10	50	6,4	17	18,9	DIN 933	-	on request
K0871.110X60	stainless steel A2	70	bright	M10	60	6,4	17	18,9	DIN 933	-	on request
K0871.110X70	stainless steel A2	70	bright	M10	70	6,4	17	18,9	DIN 933	-	on request
K0871.110X80	stainless steel A2	70	bright	M10	80	6,4	17	18,9	DIN 933	-	on request
K0871.110X90	stainless steel A2	70	bright	M10	90	6,4	17	18,9	DIN 933	-	on request
K0871.110X100	stainless steel A2	70	bright	M10	100	6,4	17	18,9	DIN 933	-	on request
K0871.112X20	stainless steel A2	70	bright	M12	20	7,5	19	21,1	DIN 933	-	on request
K0871.112X25	stainless steel A2	70	bright	M12	25	7,5	19	21,1	DIN 933	-	on request
K0871.112X30	stainless steel A2	70	bright	M12	30	7,5	19	21,1	DIN 933	-	on request
K0871.112X35	stainless steel A2	70	bright	M12	35	7,5	19	21,1	DIN 933	-	on request
K0871.112X40	stainless steel A2	70	bright	M12	40	7,5	19	21,1	DIN 933	-	on request
K0871.112X45	stainless steel A2	70	bright	M12	45	7,5	19	21,1	DIN 933	-	on request
K0871.112X50	stainless steel A2	70	bright	M12	50	7,5	19	21,1	DIN 933	-	on request
K0871.112X60	stainless steel A2	70	bright	M12	60	7,5	19	21,1	DIN 933	-	on request
K0871.112X70	stainless steel A2	70	bright	M12	70	7,5	19	21,1	DIN 933	-	on request
K0871.112X80	stainless steel A2	70	bright	M12	80	7,5	19	21,1	DIN 933	-	on request
K0871.112X90	stainless steel A2	70	bright	M12	90	7,5	19	21,1	DIN 933	-	on request
K0871.112X100	stainless steel A2	70	bright	M12	100	7,5	19	21,1	DIN 933	-	on request
K0871.112X110	stainless steel A2	70	bright	M12	110	7,5	19	21,1	DIN 933	-	on request
K0871.112X120	stainless steel A2	70	bright	M12	120	7,5	19	21,1	DIN 933	-	on request
K0871.116X30	stainless steel A2	70	bright	M16	30	10	24	26,75	DIN 933	-	on request
K0871.116X35	stainless steel A2	70	bright	M16	35	10	24	26,75	DIN 933	-	on request
K0871.116X40	stainless steel A2	70	bright	M16	40	10	24	26,75	DIN 933	-	on request
K0871.116X45	stainless steel A2	70	bright	M16	45	10	24	26,75	DIN 933	-	on request
K0871.116X50	stainless steel A2	70	bright	M16	50	10	24	26,75	DIN 933	-	on request
K0871.116X60	stainless steel A2	70	bright	M16	60	10	24	26,75	DIN 933	-	on request
K0871.116X70	stainless steel A2	70	bright	M16	70	10	24	26,75	DIN 933	-	on request
K0871.116X80	stainless steel A2	70	bright	M16	80	10	24	26,75	DIN 933	-	on request
K0871.116X90	stainless steel A2	70	bright	M16	90	10	24	26,75	DIN 933	-	on request
K0871.116X100	stainless steel A2	70	bright	M16	100	10	24	26,75	DIN 933	-	on request
K0871.116X110	stainless steel A2	70	bright	M16	110	10	24	26,75	DIN 933	-	on request
K0871.116X120	stainless steel A2	70	bright	M16	120	10	24	26,75	DIN 933	-	on request
K0871.120X40	stainless steel A2	70	bright	M20	40	12,5	30	33,53	DIN 933	-	on request
K0871.120X45	stainless steel A2	70	bright	M20	45	12,5	30	33,53	DIN 933	-	on request
K0871.120X50	stainless steel A2	70	bright	M20	50	12,5	30	33,53	DIN 933	-	on request
K0871.120X60	stainless steel A2	70	bright	M20	60	12,5	30	33,53	DIN 933	-	on request
K0871.120X70	stainless steel A2	70	bright	M20	70	12,5	30	33,53	DIN 933	-	on request
K0871.120X80	stainless steel A2	70	bright	M20	80	12,5	30	33,53	DIN 933	-	on request
K0871.120X90	stainless steel A2	70	bright	M20	90	12,5	30	33,53	DIN 933	-	on request
K0871.120X100	stainless steel A2	70	bright	M20	100	12,5	30	33,53	DIN 933	-	on request
K0871.120X110	stainless steel A2	70	bright	M20	110	12,5	30	33,53	DIN 933	-	on request
K0871.120X120	stainless steel A2	70	bright	M20	120	12,5	30	33,53	DIN 933	-	on request
K0871.603X06	stainless steel A4	70	bright	M3	6	2	5,5	6,01	DIN 933	-	on request
K0871.603X08	stainless steel A4	70	bright	M3	8	2	5,5	6,01	DIN 933	-	on request
K0871.603X10	stainless steel A4	70	bright	M3	10	2	5,5	6,01	DIN 933	-	on request
K0871.604X08	stainless steel A4	70	bright	M4	8	2,8	7	7,66	DIN 933	-	on request
K0871.604X10	stainless steel A4	70	bright	M4	10	2,8	7	7,66	DIN 933	-	on request
K0871.604X12	stainless steel A4	70	bright	M4	12	2,8	7	7,66	DIN 933	-	on request
K0871.604X16	stainless steel A4	70	bright	M4	16	2,8	7	7,66	DIN 933	-	on request
K0871.604X18	stainless steel A4	70	bright	M4	18	2,8	7	7,66	DIN 933	-	on request
K0871.604X20	stainless steel A4	70	bright	M4	20	2,8	7	7,66	DIN 933	-	on request
K0871.604X25	stainless steel A4	70	bright	M4	25	2,8	7	7,66	DIN 933	-	on request
K0871.605X10	stainless steel A4	70	bright	M5	10	3,5	8	8,79	DIN 933	-	on request
K0871.605X12	stainless steel A4	70	bright	M5	12	3,5	8	8,79	DIN 933	-	on request
K0871.605X16	stainless steel A4	70	bright	M5	16	3,5	8	8,79	DIN 933	-	on request
K0871.605X18	stainless steel A4	70	bright	M5	18	3,5	8	8,79	DIN 933	-	on request
K0871.605X20	stainless steel A4	70	bright	M5	20	3,5	8	8,79	DIN 933	-	on request
K0871.605X25	stainless steel A4	70	bright	M5	25	3,5	8	8,79	DIN 933	-	on request
K0871.605X30	stainless steel A4	70	bright	M5	30	3,5	8	8,79	DIN 933	-	on request
K0871.605X35	stainless steel A4	70	bright	M5	35	3,5	8	8,79	DIN 933	-	on request
K0871.605X40	stainless steel A4	70	bright	M5	40	3,5	8	8,79	DIN 933	-	on request
K0871.606X10	stainless steel A4	70	bright	M6	10	4	10	11,05	DIN 933	-	on request
K0871.606X12	stainless steel A4	70	bright	M6	12	4	10	11,05	DIN 933	-	on request
K0871.606X16	stainless steel A4	70	bright	M6	16	4	10	11,05	DIN 933	-	on request
K0871.606X20	stainless steel A4	70	bright	M6	20	4	10	11,05	DIN 933	-	on request
K0871.606X25	stainless steel A4	70	bright	M6	25	4	10	11,05	DIN 933	-	on request
K0871.606X30	stainless steel A4	70	bright	M6	30	4	10	11,05	DIN 933	-	on request
K0871.606X35	stainless steel A4	70	bright	M6	35	4	10	11,05	DIN 933	-	on request
K0871.606X40	stainless steel A4	70	bright	M6	40	4	10	11,05	DIN 933	-	on request
K0871.606X45	stainless steel A4	70	bright	M6	45	4	10	11,05	DIN 933	-	on request
K0871.606X50	stainless steel A4	70	bright	M6	50	4	10	11,05	DIN 933	-	on request
K0871.606X55	stainless steel A4	70	bright	M6	55	4	10	11,05	DIN 933	-	on request
K0871.606X60	stainless steel A4	70	bright	M6	60	4	10	11,05	DIN 933	-	on request
K0871.608X16	stainless steel A4	70	bright	M8	16	5,3	13	14,38	DIN 933	-	on request
K0871.608X18	stainless steel A4	70	bright	M8	18	5,3	13	14,38	DIN 933	-	on request
K0871.608X20	stainless steel A4	70	bright	M8	20	5,3	13	14,38	DIN 933	-	on request
K0871.608X25	stainless steel A4	70	bright	M8	25	5,3	13	14,38	DIN 933	-	on request
K0871.608X30	stainless steel A4	70	bright	M8	30	5,3	13	14,38	DIN 933	-	on request
K0871.608X35	stainless steel A4	70	bright	M8	35	5,3	13	14,38	DIN 933	-	on request
K0871.608X40	stainless steel A4	70	bright	M8	40	5,3	13	14,38	DIN 933	-	on request
K0871.608X45	stainless steel A4	70	bright	M8	45	5,3	13	14,38	DIN 933	-	on request
K0871.608X50	stainless steel A4	70	bright	M8	50	5,3	13	14,38	DIN 933	-	on request
K0871.608X60	stainless steel A4	70	bright	M8	60	5,3	13	14,38	DIN 933	-	on request
K0871.608X70	stainless steel A4	70	bright	M8	70	5,3	13	14,38	DIN 933	-	on request
K0871.608X80	stainless steel A4	70	bright	M8	80	5,3	13	14,38	DIN 933	-	on request
K0871.608X90	stainless steel A4	70	bright	M8	90	5,3	13	14,38	DIN 933	-	on request
K0871.608X100	stainless steel A4	70	bright	M8	100	5,3	13	14,38	DIN 933	-	on request
K0871.610X16	stainless steel A4	70	bright	M10	16	6,4	17	18,9	DIN 933	-	on request
K0871.610X20	stainless steel A4	70	bright	M10	20	6,4	17	18,9	DIN 933	-	on request
K0871.610X25	stainless steel A4	70	bright	M10	25	6,4	17	18,9	DIN 933	-	on request
K0871.610X30	stainless steel A4	70	bright	M10	30	6,4	17	18,9	DIN 933	-	on request
K0871.610X35	stainless steel A4	70	bright	M10	35	6,4	17	18,9	DIN 933	-	on request
K0871.610X40	stainless steel A4	70	bright	M10	40	6,4	17	18,9	DIN 933	-	on request
K0871.610X45	stainless steel A4	70	bright	M10	45	6,4	17	18,9	DIN 933	-	on request
K0871.610X50	stainless steel A4	70	bright	M10	50	6,4	17	18,9	DIN 933	-	on request
K0871.610X60	stainless steel A4	70	bright	M10	60	6,4	17	18,9	DIN 933	-	on request
K0871.610X70	stainless steel A4	70	bright	M10	70	6,4	17	18,9	DIN 933	-	on request
K0871.610X80	stainless steel A4	70	bright	M10	80	6,4	17	18,9	DIN 933	-	on request
K0871.610X90	stainless steel A4	70	bright	M10	90	6,4	17	18,9	DIN 933	-	on request
K0871.610X100	stainless steel A4	70	bright	M10	100	6,4	17	18,9	DIN 933	-	on request
K0871.612X20	stainless steel A4	70	bright	M12	20	7,5	19	21,1	DIN 933	-	on request
K0871.612X25	stainless steel A4	70	bright	M12	25	7,5	19	21,1	DIN 933	-	on request
K0871.612X30	stainless steel A4	70	bright	M12	30	7,5	19	21,1	DIN 933	-	on request
K0871.612X35	stainless steel A4	70	bright	M12	35	7,5	19	21,1	DIN 933	-	on request
K0871.612X40	stainless steel A4	70	bright	M12	40	7,5	19	21,1	DIN 933	-	on request
K0871.612X45	stainless steel A4	70	bright	M12	45	7,5	19	21,1	DIN 933	-	on request
K0871.612X50	stainless steel A4	70	bright	M12	50	7,5	19	21,1	DIN 933	-	on request
K0871.612X60	stainless steel A4	70	bright	M12	60	7,5	19	21,1	DIN 933	-	on request
K0871.612X70	stainless steel A4	70	bright	M12	70	7,5	19	21,1	DIN 933	-	on request
K0871.612X80	stainless steel A4	70	bright	M12	80	7,5	19	21,1	DIN 933	-	on request
K0871.612X90	stainless steel A4	70	bright	M12	90	7,5	19	21,1	DIN 933	-	on request
K0871.612X100	stainless steel A4	70	bright	M12	100	7,5	19	21,1	DIN 933	-	on request
K0871.612X110	stainless steel A4	70	bright	M12	110	7,5	19	21,1	DIN 933	-	on request
K0871.612X120	stainless steel A4	70	bright	M12	120	7,5	19	21,1	DIN 933	-	on request
K0871.616X30	stainless steel A4	70	bright	M16	30	10	24	26,75	DIN 933	-	on request
K0871.616X35	stainless steel A4	70	bright	M16	35	10	24	26,75	DIN 933	-	on request
K0871.616X40	stainless steel A4	70	bright	M16	40	10	24	26,75	DIN 933	-	on request
K0871.616X45	stainless steel A4	70	bright	M16	45	10	24	26,75	DIN 933	-	on request
K0871.616X50	stainless steel A4	70	bright	M16	50	10	24	26,75	DIN 933	-	on request
K0871.616X60	stainless steel A4	70	bright	M16	60	10	24	26,75	DIN 933	-	on request
K0871.616X70	stainless steel A4	70	bright	M16	70	10	24	26,75	DIN 933	-	on request
K0871.616X80	stainless steel A4	70	bright	M16	80	10	24	26,75	DIN 933	-	on request
K0871.616X90	stainless steel A4	70	bright	M16	90	10	24	26,75	DIN 933	-	on request
K0871.616X100	stainless steel A4	70	bright	M16	100	10	24	26,75	DIN 933	-	on request
K0871.616X110	stainless steel A4	70	bright	M16	110	10	24	26,75	DIN 933	-	on request
K0871.616X120	stainless steel A4	70	bright	M16	120	10	24	26,75	DIN 933	-	on request
K0871.620X40	stainless steel A4	70	bright	M20	40	12,5	30	33,53	DIN 933	-	on request
K0871.620X45	stainless steel A4	70	bright	M20	45	12,5	30	33,53	DIN 933	-	on request
K0871.620X50	stainless steel A4	70	bright	M20	50	12,5	30	33,53	DIN 933	-	on request
K0871.620X60	stainless steel A4	70	bright	M20	60	12,5	30	33,53	DIN 933	-	on request
K0871.620X70	stainless steel A4	70	bright	M20	70	12,5	30	33,53	DIN 933	-	on request
K0871.620X80	stainless steel A4	70	bright	M20	80	12,5	30	33,53	DIN 933	-	on request
K0871.620X90	stainless steel A4	70	bright	M20	90	12,5	30	33,53	DIN 933	-	on request
K0871.620X100	stainless steel A4	70	bright	M20	100	12,5	30	33,53	DIN 933	-	on request
K0871.620X110	stainless steel A4	70	bright	M20	110	12,5	30	33,53	DIN 933	-	on request
K0871.620X120	stainless steel A4	70	bright	M20	120	12,5	30	33,53	DIN 933	-	on request
