Wing nuts, Form AM, American style

go back

Products
- Operating parts | standard elements
  - Grips, knobs
    - Wing nuts
      - Wing nuts, Form AM, American style

Item description/product images

DescriptionMaterial:Steel or stainless steel A2.Version:Electro zinc-plated steel.
Bright stainless steel.Note:The wing nuts can be tightened and (generally) loosened tool-free.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K2344_AM Wing nuts, Form AM, American style

147 kB

Drawings

Item selection/filter

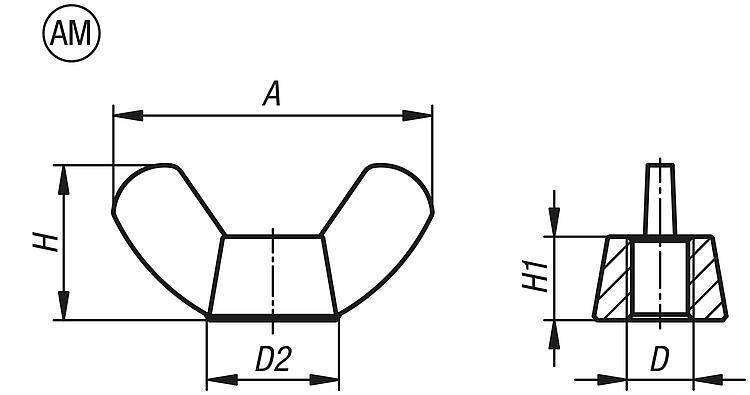

Order No.	Form	Main material	D	A max.	D2 max.	H	H1	Price
K2344.204	AM	steel	M4	18,5	8	8,8	3	on request
K2344.205	AM	steel	M5	22	11	10,5	4	on request
K2344.206	AM	steel	M6	26,8	13	12,9	4,9	on request
K2344.208	AM	steel	M8	30,3	14	14,8	5,4	on request
K2344.210	AM	steel	M10	35,3	16,5	17,3	6,3	on request
K2344.212	AM	steel	M12	47,5	22,5	22,5	7,9	on request
K2344.1204	AM	stainless steel A2	M4	18,5	8	8,8	3	on request
K2344.1205	AM	stainless steel A2	M5	22	11	10,5	4	on request
K2344.1206	AM	stainless steel A2	M6	26,8	13	12,9	4,9	on request
K2344.1208	AM	stainless steel A2	M8	30,3	14	14,8	5,4	on request
K2344.1210	AM	stainless steel A2	M10	35,3	16,5	17,3	6,3	on request
K2344.1212	AM	stainless steel A2	M12	47,5	22,5	22,5	7,9	on request
