Knurled knobs
 K0247

Knurled knobs

 go back

Item description/product images

 Show/filter all items
DescriptionMaterial:

Black thermoplastic.
Bush and screw 5.8 steel or 1.4305 stainless steel.

Version:Steel trivalent blue passivated, stainless steel bright.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet K0247 Knurled knobs 306 kB

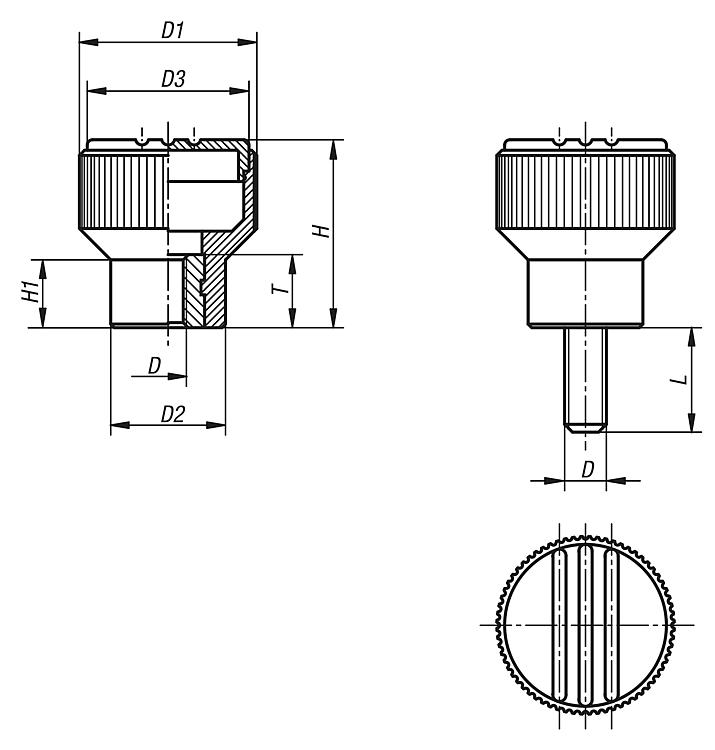

Drawings (total overview)

Knurled knobs

Knurled Knobs with internal thread

 More information

Drawings
Knurled Knobs with internal thread

Item selection/filter
Order No.Component
material		Colour
Cap
DD1D2D3HH1TCADAcc.PriceOrder
K0247.104steelblack grey RAL 7021M421141922810 on request
K0247.1041steelorange RAL 2004M421141922810 on request
K0247.1042steelsignal green RAL6032M421141922810 on request
K0247.1043steelblue RAL5017M421141922810 on request
K0247.1045steellight grey RAL 7035M421141922810 on request
K0247.1046steeltraffic red RAL 3020M421141922810 on request
K0247.1047steelcolza yellow RAL 1021M421141922810 on request
K0247.105steelblack grey RAL 7021M521141922810 on request
K0247.1051steelorange RAL 2004M521141922810 on request
K0247.1052steelsignal green RAL6032M521141922810 on request
K0247.1053steelblue RAL5017M521141922810 on request
K0247.1055steellight grey RAL 7035M521141922810 on request
K0247.1056steeltraffic red RAL 3020M521141922810 on request
K0247.1057steelcolza yellow RAL 1021M521141922810 on request
K0247.106steelblack grey RAL 7021M621141922810 on request
K0247.1061steelorange RAL 2004M621141922810 on request
K0247.1062steelsignal green RAL6032M621141922810 on request
K0247.1063steelblue RAL5017M621141922810 on request
K0247.1065steellight grey RAL 7035M621141922810 on request
K0247.1066steeltraffic red RAL 3020M621141922810 on request
K0247.1067steelcolza yellow RAL 1021M621141922810 on request
K0247.208steelblack grey RAL 7021M8261823269,514 on request
K0247.2081steelorange RAL 2004M8261823269,514 on request
K0247.2082steelsignal green RAL6032M8261823269,514 on request
K0247.2083steelblue RAL5017M8261823269,514 on request
K0247.2085steellight grey RAL 7035M8261823269,514 on request
K0247.2086steeltraffic red RAL 3020M8261823269,514 on request
K0247.2087steelcolza yellow RAL 1021M8261823269,514 on request
K0247.308steelblack grey RAL 7021M8342231361314 on request
K0247.3081steelorange RAL 2004M8342231361314 on request
K0247.3082steelsignal green RAL6032M8342231361314 on request
K0247.3083steelblue RAL5017M8342231361314 on request
K0247.3085steellight grey RAL 7035M8342231361314 on request
K0247.3086steeltraffic red RAL 3020M8342231361314 on request
K0247.3087steelcolza yellow RAL 1021M8342231361314 on request
K0247.310steelblack grey RAL 7021M10342231361314 on request
K0247.3101steelorange RAL 2004M10342231361314 on request
K0247.3102steelsignal green RAL6032M10342231361314 on request
K0247.3103steelblue RAL5017M10342231361314 on request
K0247.3105steellight grey RAL 7035M10342231361314 on request
K0247.3106steeltraffic red RAL 3020M10342231361314 on request
K0247.3107steelcolza yellow RAL 1021M10342231361314 on request
K0247.0104stainless steelblack grey RAL 7021M421141922810 on request
K0247.01041stainless steelorange RAL 2004M421141922810 on request
K0247.01042stainless steelsignal green RAL6032M421141922810 on request
K0247.01043stainless steelblue RAL5017M421141922810 on request
K0247.01045stainless steellight grey RAL 7035M421141922810 on request
K0247.01046stainless steeltraffic red RAL 3020M421141922810 on request
K0247.01047stainless steelcolza yellow RAL 1021M421141922810 on request
K0247.0105stainless steelblack grey RAL 7021M521141922810 on request
K0247.01051stainless steelorange RAL 2004M521141922810 on request
K0247.01052stainless steelsignal green RAL6032M521141922810 on request
K0247.01053stainless steelblue RAL5017M521141922810 on request
K0247.01055stainless steellight grey RAL 7035M521141922810 on request
K0247.01056stainless steeltraffic red RAL 3020M521141922810 on request
K0247.01057stainless steelcolza yellow RAL 1021M521141922810 on request
K0247.0106stainless steelblack grey RAL 7021M621141922810 on request
K0247.01061stainless steelorange RAL 2004M621141922810 on request
K0247.01062stainless steelsignal green RAL6032M621141922810 on request
K0247.01063stainless steelblue RAL5017M621141922810 on request
K0247.01065stainless steellight grey RAL 7035M621141922810 on request
K0247.01066stainless steeltraffic red RAL 3020M621141922810 on request
K0247.01067stainless steelcolza yellow RAL 1021M621141922810 on request
K0247.0208stainless steelblack grey RAL 7021M8261823269,514 on request
K0247.02081stainless steelorange RAL 2004M8261823269,514 on request
K0247.02082stainless steelsignal green RAL6032M8261823269,514 on request
K0247.02083stainless steelblue RAL5017M8261823269,514 on request
K0247.02085stainless steellight grey RAL 7035M8261823269,514 on request
K0247.02086stainless steeltraffic red RAL 3020M8261823269,514 on request
K0247.02087stainless steelcolza yellow RAL 1021M8261823269,514 on request
K0247.0308stainless steelblack grey RAL 7021M8342231361314 on request
K0247.03081stainless steelorange RAL 2004M8342231361314 on request
K0247.03082stainless steelsignal green RAL6032M8342231361314 on request
K0247.03083stainless steelblue RAL5017M8342231361314 on request
K0247.03085stainless steellight grey RAL 7035M8342231361314 on request
K0247.03086stainless steeltraffic red RAL 3020M8342231361314 on request
K0247.03087stainless steelcolza yellow RAL 1021M8342231361314 on request
K0247.0310stainless steelblack grey RAL 7021M10342231361314 on request
K0247.03101stainless steelorange RAL 2004M10342231361314 on request
K0247.03102stainless steelsignal green RAL6032M10342231361314 on request
K0247.03103stainless steelblue RAL5017M10342231361314 on request
K0247.03105stainless steellight grey RAL 7035M10342231361314 on request
K0247.03106stainless steeltraffic red RAL 3020M10342231361314 on request
K0247.03107stainless steelcolza yellow RAL 1021M10342231361314 on request

Knurled knobs with external thread

 More information

Drawings
Knurled knobs with external thread

Item selection/filter
Order No.Material

Colour
Cap
DD1D2D3HH1LCADAcc.PriceOrder
K0247.105X10steelblack grey RAL 7021M521141922810 on request
K0247.1051X10steelorange RAL 2004M521141922810 on request
K0247.1052X10steelsignal green RAL6032M521141922810 on request
K0247.1053X10steelblue RAL5017M521141922810 on request
K0247.1055X10steellight grey RAL 7035M521141922810 on request
K0247.1056X10steeltraffic red RAL 3020M521141922810 on request
K0247.1057X10steelcolza yellow RAL 1021M521141922810 on request
K0247.105X12steelblack grey RAL 7021M521141922812 on request
K0247.1051X12steelorange RAL 2004M521141922812 on request
K0247.1052X12steelsignal green RAL6032M521141922812 on request
K0247.1053X12steelblue RAL5017M521141922812 on request
K0247.1055X12steellight grey RAL 7035M521141922812 on request
K0247.1056X12steeltraffic red RAL 3020M521141922812 on request
K0247.1057X12steelcolza yellow RAL 1021M521141922812 on request
K0247.105X15steelblack grey RAL 7021M521141922815 on request
K0247.1051X15steelorange RAL 2004M521141922815 on request
K0247.1052X15steelsignal green RAL6032M521141922815 on request
K0247.1053X15steelblue RAL5017M521141922815 on request
K0247.1055X15steellight grey RAL 7035M521141922815 on request
K0247.1056X15steeltraffic red RAL 3020M521141922815 on request
K0247.1057X15steelcolza yellow RAL 1021M521141922815 on request
K0247.105X20steelblack grey RAL 7021M521141922820 on request
K0247.1051X20steelorange RAL 2004M521141922820 on request
K0247.1052X20steelsignal green RAL6032M521141922820 on request
K0247.1053X20steelblue RAL5017M521141922820 on request
K0247.1055X20steellight grey RAL 7035M521141922820 on request
K0247.1056X20steeltraffic red RAL 3020M521141922820 on request
K0247.1057X20steelcolza yellow RAL 1021M521141922820 on request
K0247.105X25steelblack grey RAL 7021M521141922825 on request
K0247.1051X25steelorange RAL 2004M521141922825 on request
K0247.1052X25steelsignal green RAL6032M521141922825 on request
K0247.1053X25steelblue RAL5017M521141922825 on request
K0247.1055X25steellight grey RAL 7035M521141922825 on request
K0247.1056X25steeltraffic red RAL 3020M521141922825 on request
K0247.1057X25steelcolza yellow RAL 1021M521141922825 on request
K0247.106X15steelblack grey RAL 7021M621141922815 on request
K0247.1061X15steelorange RAL 2004M621141922815 on request
K0247.1062X15steelsignal green RAL6032M621141922815 on request
K0247.1063X15steelblue RAL5017M621141922815 on request
K0247.1065X15steellight grey RAL 7035M621141922815 on request
K0247.1066X15steeltraffic red RAL 3020M621141922815 on request
K0247.1067X15steelcolza yellow RAL 1021M621141922815 on request
K0247.106X20steelblack grey RAL 7021M621141922820 on request
K0247.1061X20steelorange RAL 2004M621141922820 on request
K0247.1062X20steelsignal green RAL6032M621141922820 on request
K0247.1063X20steelblue RAL5017M621141922820 on request
K0247.1065X20steellight grey RAL 7035M621141922820 on request
K0247.1066X20steeltraffic red RAL 3020M621141922820 on request
K0247.1067X20steelcolza yellow RAL 1021M621141922820 on request
K0247.106X25steelblack grey RAL 7021M621141922825 on request
K0247.1061X25steelorange RAL 2004M621141922825 on request
K0247.1062X25steelsignal green RAL6032M621141922825 on request
K0247.1063X25steelblue RAL5017M621141922825 on request
K0247.1065X25steellight grey RAL 7035M621141922825 on request
K0247.1066X25steeltraffic red RAL 3020M621141922825 on request
K0247.1067X25steelcolza yellow RAL 1021M621141922825 on request
K0247.106X30steelblack grey RAL 7021M621141922830 on request
K0247.1061X30steelorange RAL 2004M621141922830 on request
K0247.1062X30steelsignal green RAL6032M621141922830 on request
K0247.1063X30steelblue RAL5017M621141922830 on request
K0247.1065X30steellight grey RAL 7035M621141922830 on request
K0247.1066X30steeltraffic red RAL 3020M621141922830 on request
K0247.1067X30steelcolza yellow RAL 1021M621141922830 on request
K0247.208X20steelblack grey RAL 7021M8261823269,520 on request
K0247.2081X20steelorange RAL 2004M8261823269,520 on request
K0247.2082X20steelsignal green RAL6032M8261823269,520 on request
K0247.2083X20steelblue RAL5017M8261823269,520 on request
K0247.2085X20steellight grey RAL 7035M8261823269,520 on request
K0247.2086X20steeltraffic red RAL 3020M8261823269,520 on request
K0247.2087X20steelcolza yellow RAL 1021M8261823269,520 on request
K0247.208X25steelblack grey RAL 7021M8261823269,525 on request
K0247.2081X25steelorange RAL 2004M8261823269,525 on request
K0247.2082X25steelsignal green RAL6032M8261823269,525 on request
K0247.2083X25steelblue RAL5017M8261823269,525 on request
K0247.2085X25steellight grey RAL 7035M8261823269,525 on request
K0247.2086X25steeltraffic red RAL 3020M8261823269,525 on request
K0247.2087X25steelcolza yellow RAL 1021M8261823269,525 on request
K0247.208X30steelblack grey RAL 7021M8261823269,530 on request
K0247.2081X30steelorange RAL 2004M8261823269,530 on request
K0247.2082X30steelsignal green RAL6032M8261823269,530 on request
K0247.2083X30steelblue RAL5017M8261823269,530 on request
K0247.2085X30steellight grey RAL 7035M8261823269,530 on request
K0247.2086X30steeltraffic red RAL 3020M8261823269,530 on request
K0247.2087X30steelcolza yellow RAL 1021M8261823269,530 on request
K0247.208X40steelblack grey RAL 7021M8261823269,540 on request
K0247.2081X40steelorange RAL 2004M8261823269,540 on request
K0247.2082X40steelsignal green RAL6032M8261823269,540 on request
K0247.2083X40steelblue RAL5017M8261823269,540 on request
K0247.2085X40steellight grey RAL 7035M8261823269,540 on request
K0247.2086X40steeltraffic red RAL 3020M8261823269,540 on request
K0247.2087X40steelcolza yellow RAL 1021M8261823269,540 on request
K0247.310X20steelblack grey RAL 7021M10342231361320 on request
K0247.3101X20steelorange RAL 2004M10342231361320 on request
K0247.3102X20steelsignal green RAL6032M10342231361320 on request
K0247.3103X20steelblue RAL5017M10342231361320 on request
K0247.3105X20steellight grey RAL 7035M10342231361320 on request
K0247.3106X20steeltraffic red RAL 3020M10342231361320 on request
K0247.3107X20steelcolza yellow RAL 1021M10342231361320 on request
K0247.310X30steelblack grey RAL 7021M10342231361330 on request
K0247.3101X30steelorange RAL 2004M10342231361330 on request
K0247.3102X30steelsignal green RAL6032M10342231361330 on request
K0247.3103X30steelblue RAL5017M10342231361330 on request
K0247.3105X30steellight grey RAL 7035M10342231361330 on request
K0247.3106X30steeltraffic red RAL 3020M10342231361330 on request
K0247.3107X30steelcolza yellow RAL 1021M10342231361330 on request
K0247.310X40steelblack grey RAL 7021M10342231361340 on request
K0247.3101X40steelorange RAL 2004M10342231361340 on request
K0247.3102X40steelsignal green RAL6032M10342231361340 on request
K0247.3103X40steelblue RAL5017M10342231361340 on request
K0247.3105X40steellight grey RAL 7035M10342231361340 on request
K0247.3106X40steeltraffic red RAL 3020M10342231361340 on request
K0247.3107X40steelcolza yellow RAL 1021M10342231361340 on request
K0247.0105X10stainless steelblack grey RAL 7021M521141922810 on request
K0247.01051X10stainless steelorange RAL 2004M521141922810 on request
K0247.01052X10stainless steelsignal green RAL6032M521141922810 on request
K0247.01053X10stainless steelblue RAL5017M521141922810 on request
K0247.01055X10stainless steellight grey RAL 7035M521141922810 on request
K0247.01056X10stainless steeltraffic red RAL 3020M521141922810 on request
K0247.01057X10stainless steelcolza yellow RAL 1021M521141922810 on request
K0247.0105X12stainless steelblack grey RAL 7021M521141922812 on request
K0247.01051X12stainless steelorange RAL 2004M521141922812 on request
K0247.01052X12stainless steelsignal green RAL6032M521141922812 on request
K0247.01053X12stainless steelblue RAL5017M521141922812 on request
K0247.01055X12stainless steellight grey RAL 7035M521141922812 on request
K0247.01056X12stainless steeltraffic red RAL 3020M521141922812 on request
K0247.01057X12stainless steelcolza yellow RAL 1021M521141922812 on request
K0247.0105X15stainless steelblack grey RAL 7021M521141922815 on request
K0247.01051X15stainless steelorange RAL 2004M521141922815 on request
K0247.01052X15stainless steelsignal green RAL6032M521141922815 on request
K0247.01053X15stainless steelblue RAL5017M521141922815 on request
K0247.01055X15stainless steellight grey RAL 7035M521141922815 on request
K0247.01056X15stainless steeltraffic red RAL 3020M521141922815 on request
K0247.01057X15stainless steelcolza yellow RAL 1021M521141922815 on request
K0247.0105X20stainless steelblack grey RAL 7021M521141922820 on request
K0247.01051X20stainless steelorange RAL 2004M521141922820 on request
K0247.01052X20stainless steelsignal green RAL6032M521141922820 on request
K0247.01053X20stainless steelblue RAL5017M521141922820 on request
K0247.01055X20stainless steellight grey RAL 7035M521141922820 on request
K0247.01056X20stainless steeltraffic red RAL 3020M521141922820 on request
K0247.01057X20stainless steelcolza yellow RAL 1021M521141922820 on request
K0247.0105X25stainless steelblack grey RAL 7021M521141922825 on request
K0247.01051X25stainless steelorange RAL 2004M521141922825 on request
K0247.01052X25stainless steelsignal green RAL6032M521141922825 on request
K0247.01053X25stainless steelblue RAL5017M521141922825 on request
K0247.01055X25stainless steellight grey RAL 7035M521141922825 on request
K0247.01056X25stainless steeltraffic red RAL 3020M521141922825 on request
K0247.01057X25stainless steelcolza yellow RAL 1021M521141922825 on request
K0247.0106X15stainless steelblack grey RAL 7021M621141922815 on request
K0247.01061X15stainless steelorange RAL 2004M621141922815 on request
K0247.01062X15stainless steelsignal green RAL6032M621141922815 on request
K0247.01063X15stainless steelblue RAL5017M621141922815 on request
K0247.01065X15stainless steellight grey RAL 7035M621141922815 on request
K0247.01066X15stainless steeltraffic red RAL 3020M621141922815 on request
K0247.01067X15stainless steelcolza yellow RAL 1021M621141922815 on request
K0247.0106X20stainless steelblack grey RAL 7021M621141922820 on request
K0247.01061X20stainless steelorange RAL 2004M621141922820 on request
K0247.01062X20stainless steelsignal green RAL6032M621141922820 on request
K0247.01063X20stainless steelblue RAL5017M621141922820 on request
K0247.01065X20stainless steellight grey RAL 7035M621141922820 on request
K0247.01066X20stainless steeltraffic red RAL 3020M621141922820 on request
K0247.01067X20stainless steelcolza yellow RAL 1021M621141922820 on request
K0247.0106X25stainless steelblack grey RAL 7021M621141922825 on request
K0247.01061X25stainless steelorange RAL 2004M621141922825 on request
K0247.01062X25stainless steelsignal green RAL6032M621141922825 on request
K0247.01063X25stainless steelblue RAL5017M621141922825 on request
K0247.01065X25stainless steellight grey RAL 7035M621141922825 on request
K0247.01066X25stainless steeltraffic red RAL 3020M621141922825 on request
K0247.01067X25stainless steelcolza yellow RAL 1021M621141922825 on request
K0247.0106X30stainless steelblack grey RAL 7021M621141922830 on request
K0247.01061X30stainless steelorange RAL 2004M621141922830 on request
K0247.01062X30stainless steelsignal green RAL6032M621141922830 on request
K0247.01063X30stainless steelblue RAL5017M621141922830 on request
K0247.01065X30stainless steellight grey RAL 7035M621141922830 on request
K0247.01066X30stainless steeltraffic red RAL 3020M621141922830 on request
K0247.01067X30stainless steelcolza yellow RAL 1021M621141922830 on request
K0247.0208X20stainless steelblack grey RAL 7021M8261823269,520 on request
K0247.02081X20stainless steelorange RAL 2004M8261823269,520 on request
K0247.02082X20stainless steelsignal green RAL6032M8261823269,520 on request
K0247.02083X20stainless steelblue RAL5017M8261823269,520 on request
K0247.02085X20stainless steellight grey RAL 7035M8261823269,520 on request
K0247.02086X20stainless steeltraffic red RAL 3020M8261823269,520 on request
K0247.02087X20stainless steelcolza yellow RAL 1021M8261823269,520 on request
K0247.0208X25stainless steelblack grey RAL 7021M8261823269,525 on request
K0247.02081X25stainless steelorange RAL 2004M8261823269,525 on request
K0247.02082X25stainless steelsignal green RAL6032M8261823269,525 on request
K0247.02083X25stainless steelblue RAL5017M8261823269,525 on request
K0247.02085X25stainless steellight grey RAL 7035M8261823269,525 on request
K0247.02086X25stainless steeltraffic red RAL 3020M8261823269,525 on request
K0247.02087X25stainless steelcolza yellow RAL 1021M8261823269,525 on request
K0247.0208X30stainless steelblack grey RAL 7021M8261823269,530 on request
K0247.02081X30stainless steelorange RAL 2004M8261823269,530 on request
K0247.02082X30stainless steelsignal green RAL6032M8261823269,530 on request
K0247.02083X30stainless steelblue RAL5017M8261823269,530 on request
K0247.02085X30stainless steellight grey RAL 7035M8261823269,530 on request
K0247.02086X30stainless steeltraffic red RAL 3020M8261823269,530 on request
K0247.02087X30stainless steelcolza yellow RAL 1021M8261823269,530 on request
K0247.0208X40stainless steelblack grey RAL 7021M8261823269,540 on request
K0247.02081X40stainless steelorange RAL 2004M8261823269,540 on request
K0247.02082X40stainless steelsignal green RAL6032M8261823269,540 on request
K0247.02083X40stainless steelblue RAL5017M8261823269,540 on request
K0247.02085X40stainless steellight grey RAL 7035M8261823269,540 on request
K0247.02086X40stainless steeltraffic red RAL 3020M8261823269,540 on request
K0247.02087X40stainless steelcolza yellow RAL 1021M8261823269,540 on request
K0247.0310X20stainless steelblack grey RAL 7021M10342231361320 on request
K0247.03101X20stainless steelorange RAL 2004M10342231361320 on request
K0247.03102X20stainless steelsignal green RAL6032M10342231361320 on request
K0247.03103X20stainless steelblue RAL5017M10342231361320 on request
K0247.03105X20stainless steellight grey RAL 7035M10342231361320 on request
K0247.03106X20stainless steeltraffic red RAL 3020M10342231361320 on request
K0247.03107X20stainless steelcolza yellow RAL 1021M10342231361320 on request
K0247.0310X30stainless steelblack grey RAL 7021M10342231361330 on request
K0247.03101X30stainless steelorange RAL 2004M10342231361330 on request
K0247.03102X30stainless steelsignal green RAL6032M10342231361330 on request
K0247.03103X30stainless steelblue RAL5017M10342231361330 on request
K0247.03105X30stainless steellight grey RAL 7035M10342231361330 on request
K0247.03106X30stainless steeltraffic red RAL 3020M10342231361330 on request
K0247.03107X30stainless steelcolza yellow RAL 1021M10342231361330 on request
K0247.0310X40stainless steelblack grey RAL 7021M10342231361340 on request
K0247.03101X40stainless steelorange RAL 2004M10342231361340 on request
K0247.03102X40stainless steelsignal green RAL6032M10342231361340 on request
K0247.03103X40stainless steelblue RAL5017M10342231361340 on request
K0247.03105X40stainless steellight grey RAL 7035M10342231361340 on request
K0247.03106X40stainless steeltraffic red RAL 3020M10342231361340 on request
K0247.03107X40stainless steelcolza yellow RAL 1021M10342231361340 on request
Search
Shopping cart
Number of items: 0
Amount: 0.00  €
Display
Speed ordering
Go to order form
Availability
Here you can check item's availability.
Availability check
PRODUCT LINES
The KIPP product lines offer the perfect solution for every application area.more...
Ireland
Sitemap Print Newsletter Top
Copyright © 2024 HEINRICH KIPP WERK GmbH & Co. KG · All rights reserved. Phone +49 (0) 74 54 / 793-0 · Fax +49 (0) 74 54 / 793-33
