K2385Telescopic slides, steel for side mounting, over-extension,... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Slides steel.
Ball cages steel.
Balls, steel.Version:Slides electro zinc-plated.
Ball cages, electro zinc-plated.
Balls hardened.Note for ordering:Sold in pairs.Note:On telescopic slides with over-extension, the travel is greater than the installed length. Latches in closed position. When the release lever is actuated, the drawer can be taken out easily and separated from the guide.
The dynamic load capacity of the telescopic slides indicates the maximum load rating of a vertically mounted slide pair when the entire extension length is used. The load capacities specified refer to the maximum value for 50,000 cycles.
Not suitable for horizontal mounting.Assembly:Bayonet mounting.Advantages:Bayonet mounting
Latches in closed position
Quick frontal releaseSpecial features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Assembly | Product type | Loading
per pair
kg | Packaging type | CAD | Acc. | Price | Order |
|---|
| K2385.0300 | side mounting | standard | 55 | 1 piece = 1 pair |  | | on request | | | K2385.0350 | side mounting | standard | 57 | 1 piece = 1 pair | | | on request | | | K2385.0400 | side mounting | standard | 58 | 1 piece = 1 pair | | | on request | | | K2385.0450 | side mounting | standard | 59 | 1 piece = 1 pair | | | on request | | | K2385.0500 | side mounting | standard | 60 | 1 piece = 1 pair | | | on request | | | K2385.0550 | side mounting | standard | 60 | 1 piece = 1 pair | | | on request | | | K2385.0600 | side mounting | standard | 59 | 1 piece = 1 pair | | | on request | | | K2385.0650 | side mounting | standard | 57 | 1 piece = 1 pair | | | on request | | | K2385.0700 | side mounting | standard | 55 | 1 piece = 1 pair | | | on request | |

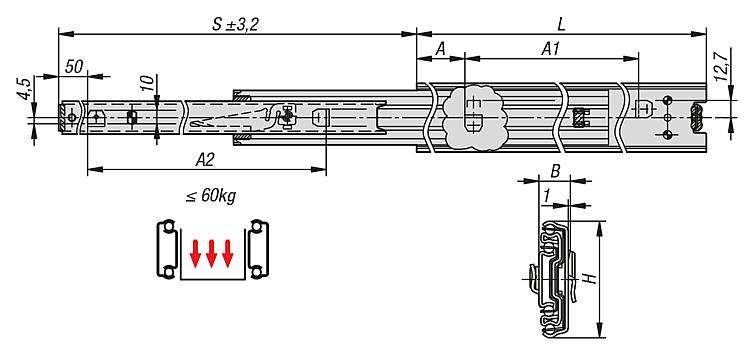

| Order No. | A
| A1 | A2 | B | H | Travel
S | L | CAD | Acc. | Price | Order |
|---|
| K2385.0300 | 50 | 200 | 200 | 12,7 | 50,8 | 325 | 300 | | | on request | | | K2385.0350 | 50 | 250 | 250 | 12,7 | 50,8 | 374 | 350 | | | on request | | | K2385.0400 | 50 | 300 | 300 | 12,7 | 50,8 | 424 | 400 | | | on request | | | K2385.0450 | 50 | 350 | 350 | 12,7 | 50,8 | 473 | 450 | | | on request | | | K2385.0500 | 50 | 400 | 400 | 12,7 | 50,8 | 522 | 500 | | | on request | | | K2385.0550 | 50 | 450 | 450 | 12,7 | 50,8 | 571 | 550 | | | on request | | | K2385.0600 | 50 | 500 | 500 | 12,7 | 50,8 | 620 | 600 | | | on request | | | K2385.0650 | 50 | 550 | 550 | 12,7 | 50,8 | 670 | 650 | | | on request | | | K2385.0700 | 50 | 600 | 600 | 12,7 | 50,8 | 731 | 700 | | | on request | |
