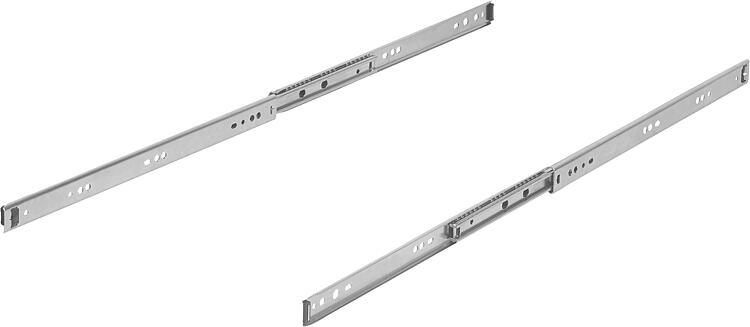

K2380Telescopic slides, steel for side mounting, full extension,... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Slides steel.
Ball cages steel.
Balls, steel.Version:Slides electro zinc-plated.
Ball cages, electro zinc-plated.
Balls hardened.Note for ordering:Sold in pairs.Note:By telescopic slides with full extension, the travel is roughly equal to the installed length, which ensures greater comfort and accessibility. Latches in closed position.
The dynamic load capacity of the telescopic slides indicates the maximum load rating of a vertically mounted slide pair when the entire extension length is used. The load capacity specified is calculated with a slide spacing of 450 mm and is based on the maximum value with 80,000 cycles.
Not suitable for horizontal mounting.
The head height of the fastening screws should not exceed 2 mm otherwise there is a risk of collision with other parts of the slide.Advantages:Latches in closed position
Low slide thickness

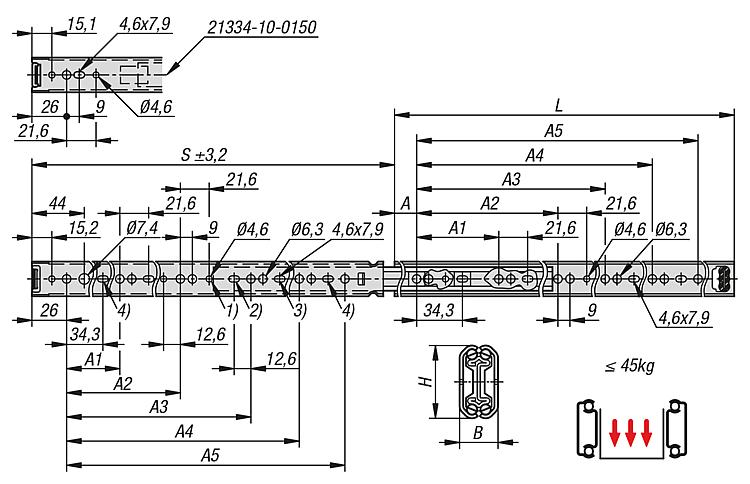

Light runningDrawing reference:1) Mounting hole by K2380.0300 not provided
2) Mounting hole by K2380.0400 provided
3) Mounting hole by K2380.10-0400 not provided
4) Mounting hole by K2380.0150 not provided DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Assembly | Product type | Loading
per pair
kg | Packaging type | CAD | Acc. | Price | Order |
|---|
| K2380.0150 | side mounting | standard | 12 | 1 piece = 1 pair |  | | on request | | | K2380.0200 | side mounting | standard | 16 | 1 piece = 1 pair | | | on request | | | K2380.0250 | side mounting | standard | 25 | 1 piece = 1 pair | | | on request | | | K2380.0300 | side mounting | standard | 32 | 1 piece = 1 pair | | | on request | | | K2380.0350 | side mounting | standard | 35 | 1 piece = 1 pair | | | on request | | | K2380.0400 | side mounting | standard | 45 | 1 piece = 1 pair | | | on request | | | K2380.0450 | side mounting | standard | 45 | 1 piece = 1 pair | | | on request | | | K2380.0500 | side mounting | standard | 35 | 1 piece = 1 pair | | | on request | | | K2380.0550 | side mounting | standard | 30 | 1 piece = 1 pair | | | on request | |
| Order No. | A
| A1 | A2 | A3 | A4 | A5 | B | H | Travel
S | L | CAD | Acc. | Price | Order |
|---|
| K2380.0150 | 26 | 78 | - | - | - | - | 12,7 | 26,3 | 147,5 | 150 | | | on request | | | K2380.0200 | 26 | 128 | - | - | - | - | 12,7 | 26,3 | 209 | 200 | | | on request | | | K2380.0250 | 26 | 128 | - | - | - | - | 12,7 | 26,3 | 259 | 250 | | | on request | | | K2380.0300 | 26 | 128 | 224 | - | - | - | 12,7 | 26,3 | 308 | 300 | | | on request | | | K2380.0350 | 26 | 128 | 224 | - | - | - | 12,7 | 26,3 | 357 | 350 | | | on request | | | K2380.0400 | 26 | 128 | 224 | 320 | - | - | 12,7 | 26,3 | 406 | 400 | | | on request | | | K2380.0450 | 26 | 128 | 224 | 352 | - | - | 12,7 | 26,3 | 456 | 450 | | | on request | | | K2380.0500 | 26 | 128 | 224 | 352 | 416 | - | 12,7 | 26,3 | 505 | 500 | | | on request | | | K2380.0550 | 26 | 128 | 224 | 352 | 448 | 489 | 12,7 | 26,3 | 554 | 550 | | | on request | |
