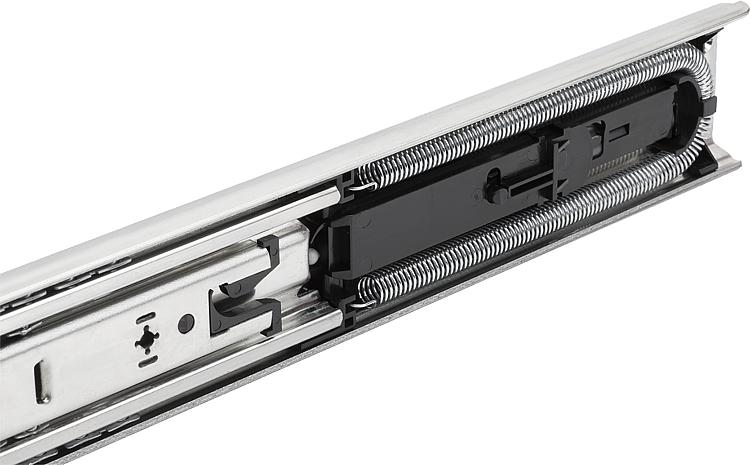

K2365Telescopic slides, steel for side mounting, full extension,... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Slides steel.
Ball cages steel.
Balls, steel.Version:Slides electro zinc-plated.
Ball cages, electro zinc-plated.
Balls hardened.Note for ordering:Sold in pairs.Note:By telescopic slides with full extension, the travel is roughly equal to the installed length, which ensures greater comfort and accessibility. When closing, the movement of the telescopic slides is dampened by the soft closing feature and they move automatically into the end position. The dynamic load capacity of the telescopic slides indicates the maximum load rating of a vertically mounted slide pair when the entire extension length is used. The load capacity specified is calculated with a slide spacing of 450 mm and is based on the maximum value with 80,000 cycles.
Not suitable for horizontal mounting.Temperature range:+10°C to +40°C.Advantages:Soft close
Light running
Precise guidance for high lateral stabilitySpecial features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Assembly | Product type | Load capacity
per pair
(80,000 cycles) kg | Packaging type | CAD | Acc. | Price | Order |
|---|
| K2365.0400 | side mounting | standard | 45 | 1 piece = 1 pair |  | | on request | | | K2365.0450 | side mounting | standard | 45 | 1 piece = 1 pair | | | on request | | | K2365.0500 | side mounting | standard | 50 | 1 piece = 1 pair | | | on request | | | K2365.0550 | side mounting | standard | 50 | 1 piece = 1 pair | | | on request | | | K2365.0600 | side mounting | standard | 50 | 1 piece = 1 pair | | | on request | | | K2365.0700 | side mounting | standard | 55 | 1 piece = 1 pair | | | on request | |
| Order No. | A
| A1 | A2 | A3 | A4 | A5 | A6 | A7 | B | H | Travel
S | L | CAD | Acc. | Price | Order |
|---|
| K2365.0400 | 26 | 160 | 192 | - | - | 128 | 160 | 288 | 17,5 | 54 | 400,2 | 400 | | | on request | | | K2365.0450 | 26 | 192 | 224 | - | - | 160 | 192 | 320 | 17,5 | 54 | 449,4 | 450 | | | on request | | | K2365.0500 | 26 | 160 | 192 | 256 | 288 | 192 | 224 | 384 | 17,5 | 54 | 498,6 | 500 | | | on request | | | K2365.0550 | 26 | 192 | 224 | 288 | 320 | 192 | 224 | 416 | 17,5 | 54 | 547,6 | 550 | | | on request | | | K2365.0600 | 26 | 224 | 256 | 352 | 384 | 224 | 256 | 480 | 17,5 | 54 | 597 | 600 | | | on request | | | K2365.0700 | 26 | 288 | 320 | 448 | 480 | 256 | 288 | 576 | 17,5 | 54 | 695,4 | 700 | | | on request | |
