Threaded bushings for grid systems
K0863

Threaded bushings for grid systems

go back

Item description/product images

DescriptionMaterial:Carbon steel.Version:Tempered to 1100-1300 N/mm².Note:Assembly instructions for changing threaded bushing.

Inserting the locating and threaded bushing
1. Remove grease from the locating and threaded bushing.
2. Apply adhesive (Loctite 638) in the hole.
3. Apply adhesive (Loctite 638) on the threaded bushing and screw in.
4. Apply adhesive (Loctite 638) to the locating bushing and insert it. If the locating bushing cannot be inserted by hand, please use an assembly tool as shown application example:.
5. Remove any adhesive pressed out by insertion of the locating and threaded bushing before it hardens.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0863 Threaded bushings for grid systems 222 kB

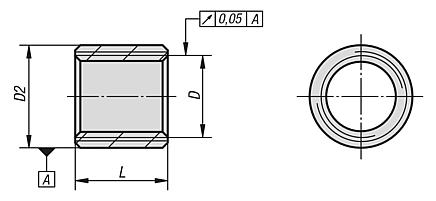

Drawings

Threaded bushings for grid systems

Item selection/filter

Order No.

DD2LCADAcc.PriceOrder
K0863.01508305003M8M12x1,7512 on request
K0863.01012304003M12M16x1,515 on request
K0863.01016405003M16M20x1,518 on request
