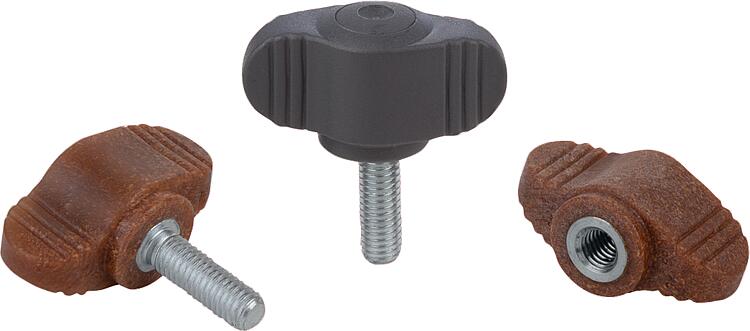

K0274Wing grips "Miniwing" biopolymer |
go back |
|
|
DescriptionMaterial:Biopolymer wood fibre reinforced, natural beech.
Biopolymer fibreglass reinforced, black grey.
Bush or screw stainless steel 1.4305.Version:Natural beech with wood fibre optic or coloured black grey.
Bush and threaded pin bright stainless steel.Note:Good mechanical strength (tested to a minimum of 2x safety factor).
Good chemical resistance.
Suitable for outdoor use (weather resistant).Advantages:This biopolymer is manufactured entirely from renewable raw materials (oil free).
Good CO₂ impact compared to petroleum-based plastics.
Conservation of finite fossil resources.
The wood fibres originate 100% from local, sustainably managed forests in Germany.
Biopolymer is suitable for recycling (comparable to thermoplastics).Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
| Order No. | Form | Main
colour | A | B | D
| D2 | H | H1 | H2 | T | CAD | Acc. | Price | Order |
|---|
| K0274.100004143 | K | natural beech | 28 | 13 | M4 | 12 | 15 | 13,3 | 2,3 | 6 |  | | 0.00 € | | | K0274.100005143 | K | natural beech | 28 | 13 | M5 | 12 | 15 | 13,3 | 2,3 | 8 | | | 0.00 € | | | K0274.100006143 | K | natural beech | 28 | 13 | M6 | 12 | 15 | 13,3 | 2,3 | 8 | | | 0.00 € | | | K0274.10000490 | K | black grey RAL 7021 | 28 | 13 | M4 | 12 | 15 | 13,3 | 2,3 | 6 | | | 0.00 € | | | K0274.10000590 | K | black grey RAL 7021 | 28 | 13 | M5 | 12 | 15 | 13,3 | 2,3 | 8 | | | 0.00 € | | | K0274.10000690 | K | black grey RAL 7021 | 28 | 13 | M6 | 12 | 15 | 13,3 | 2,3 | 8 | | | 0.00 € | |
|
| Order No. | Form | Main
colour | A | B | D
| D2 | H | H1 | H2 | L | CAD | Acc. | Price | Order |
|---|
| K0274.100004143X8 | L | natural beech | 28 | 13 | M4 | 12 | 15 | 13,3 | 2,3 | 8 | | | 0.00 € | | | K0274.100005143X15 | L | natural beech | 28 | 13 | M5 | 12 | 15 | 13,3 | 2,3 | 15 | | | 0.00 € | | | K0274.100006143X15 | L | natural beech | 28 | 13 | M6 | 12 | 15 | 13,3 | 2,3 | 15 | | | 0.00 € | | | K0274.100008143X20 | L | natural beech | 28 | 13 | M8 | 12 | 15 | 13,3 | 2,3 | 20 | | | 0.00 € | | | K0274.10000490X8 | L | black grey RAL 7021 | 28 | 13 | M4 | 12 | 15 | 13,3 | 2,3 | 8 | | | 0.00 € | | | K0274.10000590X15 | L | black grey RAL 7021 | 28 | 13 | M5 | 12 | 15 | 13,3 | 2,3 | 15 | | | 0.00 € | | | K0274.10000690X15 | L | black grey RAL 7021 | 28 | 13 | M6 | 12 | 15 | 13,3 | 2,3 | 15 | | | 0.00 € | | | K0274.10000890X20 | L | black grey RAL 7021 | 28 | 13 | M8 | 12 | 15 | 13,3 | 2,3 | 20 | | | 0.00 € | |
|
