Five lobe grips, plastic (thermoset), threaded insert steel

go back

Products
- Operating parts | standard elements
  - Grips, knobs
    - Five lobe grips, plastic (thermoset), threaded insert steel

Item description/product images

Show/filter all items

DescriptionMaterial:Thermoset PF 31, black.
Steel bush and stud, electro zinc-plated.Version:High-gloss polished.Note:The versions K0185.3205 and K0185.3206 have a brass bush.On request:Other screw sizes, screw lengths and colours.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0185 Five lobe grips

140 kB

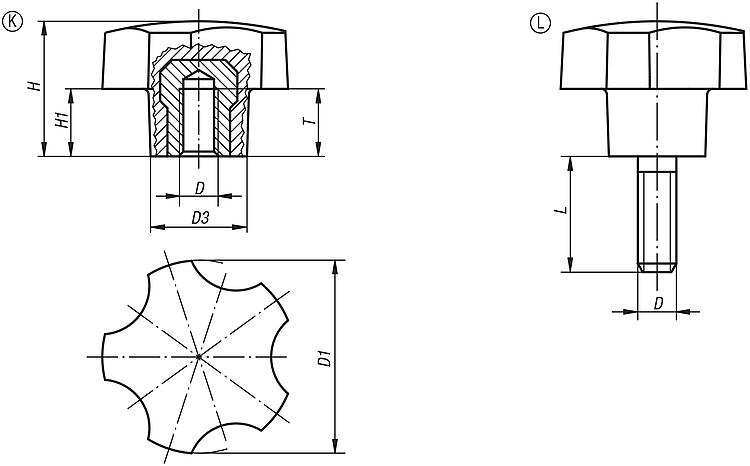

Drawings (total overview)

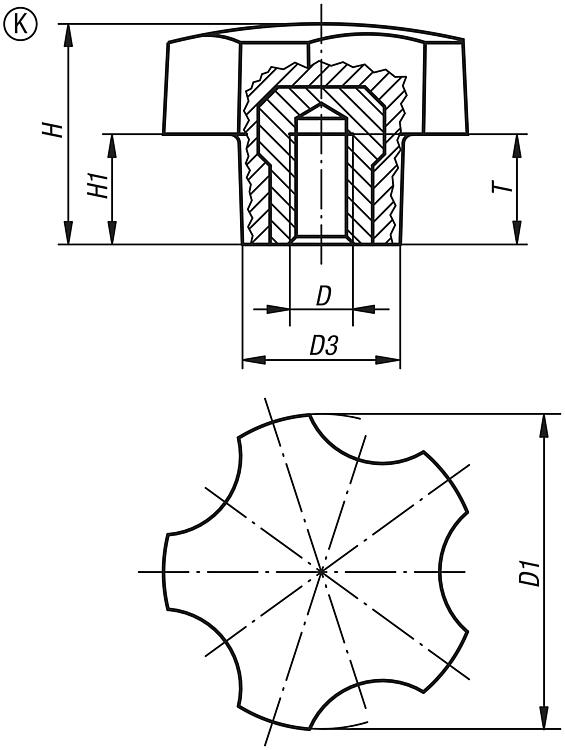

Five lobe grips, plastic (thermoset), threaded insert steel, with internal thread

More information

Drawings

Five lobe grips, plastic (thermoset), threaded insert steel, with internal thread

Item selection/filter

Order No.	Form	D	D1	D3	H	H1	T
K0185.3205	K	M5	32	16	22,4	11,2	10
K0185.3206	K	M6	32	16	22,4	11,2	9
K0185.4006	K	M6	40	20	28	14	12
K0185.4008	K	M8	40	20	28	14	14
K0185.4010	K	M10	40	20	28	14	14
K0185.5008	K	M8	50	25	35	17,5	14
K0185.5010	K	M10	50	25	35	17,5	14

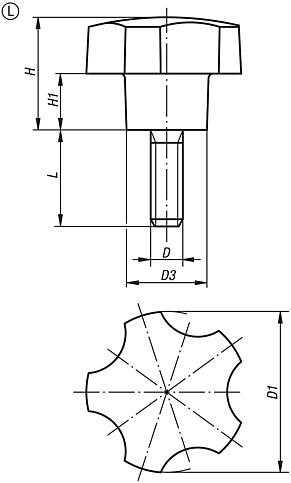

Five lobe grips, plastic (thermoset), threaded insert steel, with external thread

More information

Drawings

Five lobe grips, plastic (thermoset), threaded insert steel, with external thread

Item selection/filter

Order No.	Form	D	D1	D3	H	H1	L
K0185.3206X12	L	M6	32	16	22,4	11,2	12
K0185.3206X18	L	M6	32	16	22,4	11,2	18
K0185.3208X16	L	M8	32	16	22,4	11,2	16
K0185.3208X24	L	M8	32	16	22,4	11,2	24
K0185.4006X18	L	M6	40	20	28	14	18
K0185.4008X16	L	M8	40	20	28	14	16
K0185.4008X20	L	M8	40	20	28	14	20
K0185.4008X24	L	M8	40	20	28	14	24
K0185.4010X30	L	M10	40	20	28	14	30
K0185.5008X16	L	M8	50	25	35	17,5	16
K0185.5008X24	L	M8	50	25	35	17,5	24
K0185.5010X20	L	M10	50	25	35	17,5	20
K0185.5010X30	L	M10	50	25	35	17,5	30
