K0145

Palm grips aluminium, similar to DIN 6335

go back

Products
- Operating parts | standard elements
  - Grips, knobs
    - Palm grips aluminium, similar to DIN 6335

Item description/product images

Show/filter all items

DescriptionMaterial:

Aluminium.
Grub screw stainless steel 1.4305.
Pin stainless steel 1.4310.

Version:Vibratory ground or ground and polished.
Grub screw and pin bright.On request:Blank palm grips (not tumbled).Drawing reference:

Form A: blank
Form B: drilled through
Form C: blind hole
Form D: tapped and counterbored
Form E: tapped blind hole
Form L: external thread

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0145 Palm gripsaluminium, similar to DIN 6335

185 kB

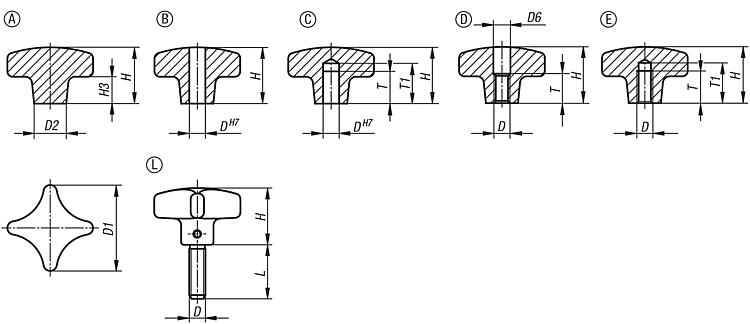

Drawings (total overview)

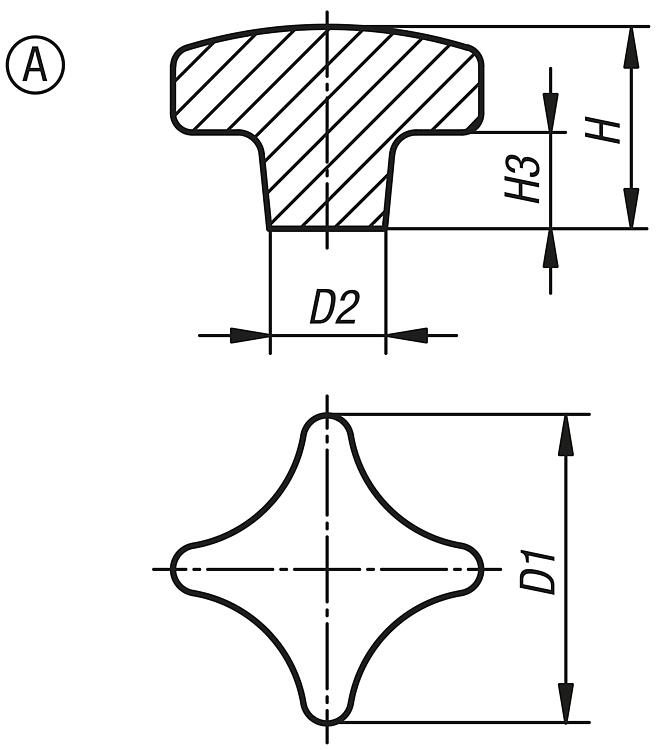

Palm grips similar to DIN 6335, aluminium, Form A, blank

More information

Drawings

Palm grips similar to DIN 6335, aluminium, Form A, blank

Item selection/filter

Order No.	Form	Surface finish body	D1	D2	H	H3
K0145.104008	A	tumbled	40	14	26	14
K0145.105010	A	tumbled	50	18	34	20
K0145.106312	A	tumbled	63	25	42	25
K0145.108016	A	tumbled	80	25	52	30

Palm grips similar to DIN 6335, aluminium, Form B, drilled through

More information

Drawings

Palm grips similar to DIN 6335, aluminium, Form B, drilled through

Item selection/filter

Order No.	Form	Finish	D1	D	D2	H
K0145.2080162	B	polished	80	16	25	50
K0145.2040082	B	polished	40	8	14	25
K0145.2050102	B	polished	50	10	18	32
K0145.2063122	B	polished	63	12	25	40
K0145.205010	B	tumbled	50	10	18	32
K0145.206312	B	tumbled	63	12	25	40
K0145.204008	B	tumbled	40	8	14	25
K0145.208016	B	tumbled	80	16	25	50

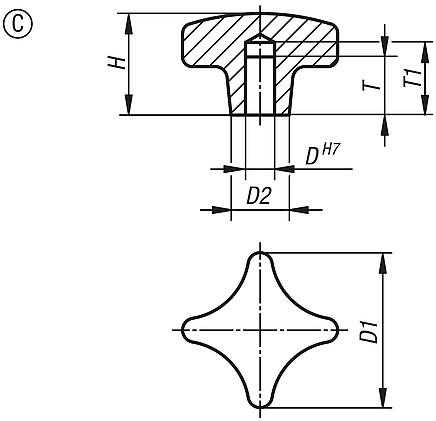

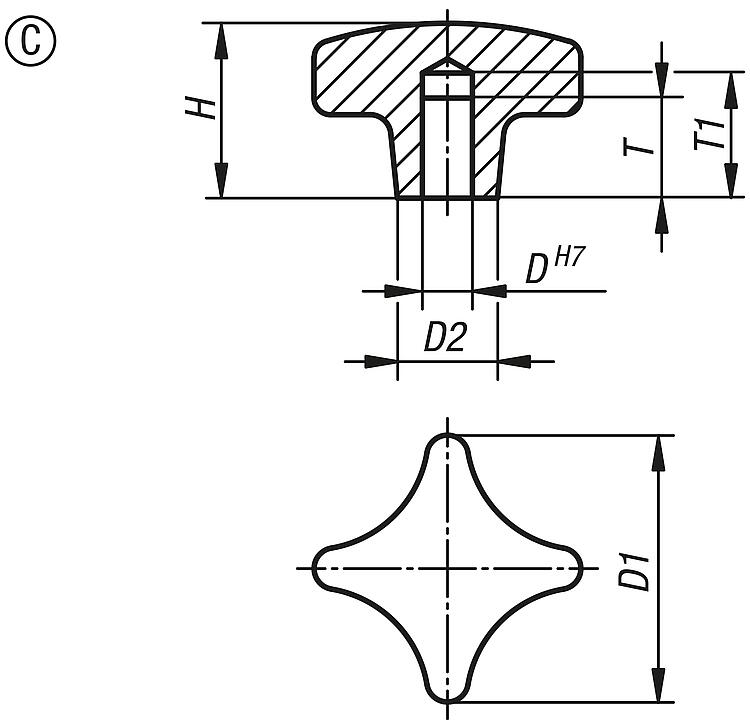

Palm grips similar to DIN 6335, aluminium, Form C, blind hole

More information

Drawings

Palm grips similar to DIN 6335, aluminium, Form C, blind hole

Item selection/filter

Order No.	Form	Finish	D	D1	D2	H	T	T1
K0145.3080162	C	polished	16	80	25	50	28	32
K0145.3040082	C	polished	8	40	14	25	15	18
K0145.3050102	C	polished	10	50	18	32	18	21
K0145.3063122	C	polished	12	63	25	40	22	25
K0145.305010	C	tumbled	10	50	18	32	18	21
K0145.306312	C	tumbled	12	63	25	40	22	25
K0145.304008	C	tumbled	8	40	14	25	15	18
K0145.308016	C	tumbled	16	80	25	50	28	32

Palm grips similar to DIN 6335, aluminium, Form D, thread countersunk

More information

Drawings

Palm grips similar to DIN 6335, aluminium, Form D, thread countersunk

Item selection/filter

Order No.	Form	Finish	D	D1	D2	D6	H	T
K0145.404008	D	tumbled	M8	40	14	8,4	25	15
K0145.405010	D	tumbled	M10	50	18	10,5	32	18
K0145.406312	D	tumbled	M12	63	25	13	40	22
K0145.408016	D	tumbled	M16	80	25	17	50	28
K0145.4040082	D	polished	M8	40	14	8,4	25	15
K0145.4050102	D	polished	M10	50	18	10,5	32	18
K0145.4063122	D	polished	M12	63	25	13	40	22
K0145.4080162	D	polished	M16	80	25	17	50	28

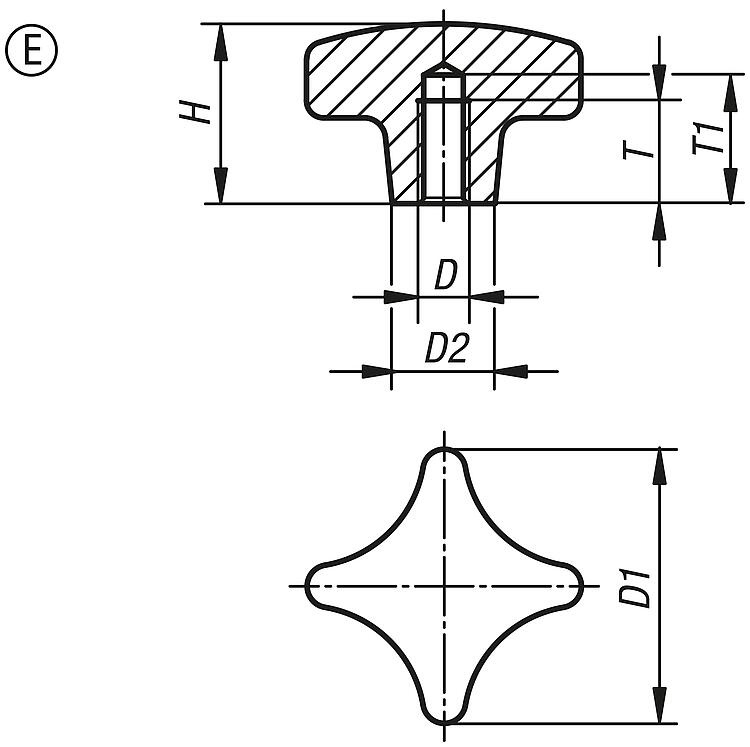

Palm grips similar to DIN 6335, aluminium, Form E, blind tapped hole

More information

Drawings

Palm grips similar to DIN 6335, aluminium, Form E, blind tapped hole

Item selection/filter

Order No.	Form	Finish	D	D1	D2	H	T	T1
K0145.504008	E	tumbled	M8	40	14	25	15	18
K0145.505010	E	tumbled	M10	50	18	32	18	21
K0145.506312	E	tumbled	M12	63	25	40	22	25
K0145.508016	E	tumbled	M16	80	25	50	28	32
K0145.5040082	E	polished	M8	40	14	25	15	18
K0145.5050102	E	polished	M10	50	18	32	18	21
K0145.5063122	E	polished	M12	63	25	40	22	25
K0145.5080162	E	polished	M16	80	25	50	28	32

Palm grips similar to DIN 6335, aluminium, Form L, with external thread

More information

Drawings

Palm grips similar to DIN 6335, aluminium, Form L, with external thread

Item selection/filter

Order No.	Form	Surface finish body	D	D1	D2	H	L
K0145.604008X20	L	tumbled	M8	40	14	25	20
K0145.604008X25	L	tumbled	M8	40	14	25	25
K0145.604008X30	L	tumbled	M8	40	14	25	30
K0145.604008X40	L	tumbled	M8	40	14	25	40
K0145.604008X50	L	tumbled	M8	40	14	25	50
K0145.605010X20	L	tumbled	M10	50	18	32	20
K0145.605010X25	L	tumbled	M10	50	18	32	25
K0145.605010X30	L	tumbled	M10	50	18	32	30
K0145.605010X40	L	tumbled	M10	50	18	32	40
K0145.605010X50	L	tumbled	M10	50	18	32	50
K0145.606312X20	L	tumbled	M12	63	25	40	20
K0145.606312X30	L	tumbled	M12	63	25	40	30
K0145.606312X40	L	tumbled	M12	63	25	40	40
K0145.606312X50	L	tumbled	M12	63	25	40	50
