K0645 inch

Cam levers, stainless steel with internal or external thread,...

go back

Products
- Product Lines
  - Rustproof stainless steel
    - Cam levers, stainless steel with internal or external thread, thrust washer and stud stainless steel - inch

Item description/product images

DescriptionMaterial:

Handle 1.4308 (AISI "316" equivalent) stainless steel.
Thrust washer 1.4034 (AISI 420 equivalent) stainless steel, hardened.
Hinge pin and stud 1.4305 (AISI 303 equivalent) stainless steel.

Version:Handle electropolished or blasted.
Thrust washer, hinge pin and screw bright.Note:The thrust washer face is lightly greased before delivery.
The grease is FDA conform and is suitable for use in the foodstuff and pharmaceutical industries.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0645 inch Cam levers, stainless steel with internal or external thread, thrust washer and stud stainless steel

168 kB

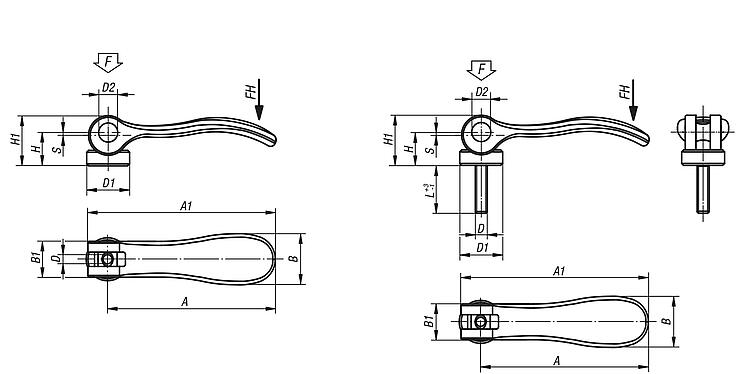

Drawings (total overview)

Cam levers, stainless steel with external thread, thrust washer and stud stainless steel - inch

More information

Drawings

Cam levers, stainless steel with external thread, thrust washer and stud stainless steel - inch

Item selection/filter

Order No.	Surface finish body	D	D1	D2	B	B1	H	H1	A	A1	L	Travel S	Clamping force F (kN)	Hand force FH N	CAD	Acc.	Price	Order

Cam levers, stainless steel, with internal thread, thrust washer stainless steel - inch

More information

Drawings

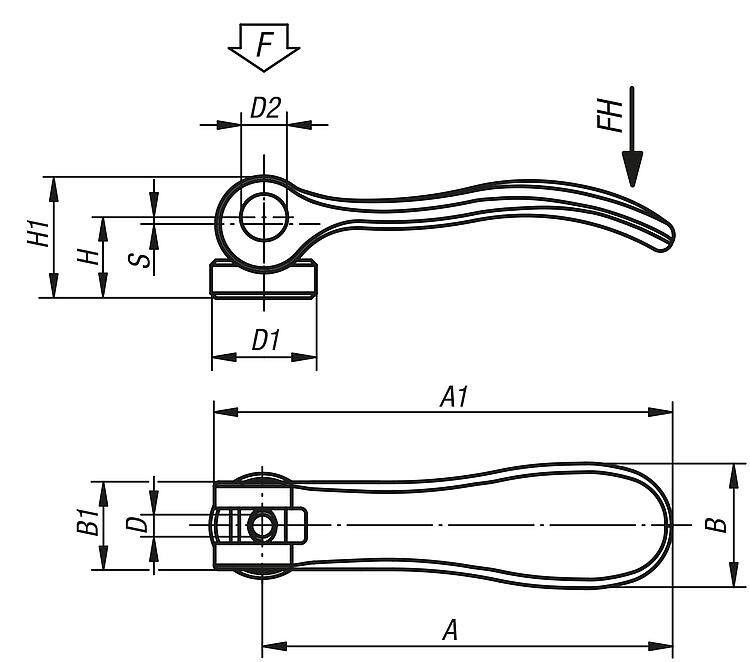

Cam levers, stainless steel, with internal thread, thrust washer stainless steel - inch

Item selection/filter

Order No.	Surface finish body	D	D1	D2	B	B1	H	H1	A	A1	Travel S	Clamping force F (kN)	Hand force FH N	Price
K0645.95410AD	electropolished	6-32	12	6	14,4	11,5	9	13,5	36,2	41,7	1	1,5	90	on request
K0645.95410AE	electropolished	8-32	12	6	14,4	11,5	9	13,5	36,2	41,7	1	1,5	90	on request
K0645.05410AE	electropolished	8-32	15,4	8	18	13	11,4	17,2	52,3	59,1	1	2,5	100	on request
K0645.05410A0	electropolished	10-24	15,4	8	18	13	11,4	17,2	52,3	59,1	1	2,5	100	on request
K0645.05410A1	electropolished	10-32	15,4	8	18	13	11,4	17,2	52,3	59,1	1	2,5	100	on request
K0645.15410A1	electropolished	10-32	18	9	21,5	15	14,7	22	70,4	79,2	1,2	4	120	on request
K0645.15410A2	electropolished	1/4-20	18	9	21,5	15	14,7	22	70,4	79,2	1,2	4	120	on request
K0645.25410A3	electropolished	5/16-18	27	11	33,3	24	18,3	28,8	96	108	1,5	8	350	on request
K0645.95413AD	blasted	6-32	12	6	14,4	11,5	9	13,5	36,2	41,7	1	1,5	90	on request
K0645.95413AE	blasted	8-32	12	6	14,4	11,5	9	13,5	36,2	41,7	1	1,5	90	on request
K0645.05413AE	blasted	8-32	15,4	8	18	13	11,4	17,2	52,3	59,1	1	2,5	100	on request
K0645.05413A0	blasted	10-24	15,4	8	18	13	11,4	17,2	52,3	59,1	1	2,5	100	on request
K0645.05413A1	blasted	10-32	15,4	8	18	13	11,4	17,2	52,3	59,1	1	2,5	100	on request
K0645.15413A1	blasted	10-32	18	9	21,5	15	14,7	22	70,4	79,2	1,2	4	120	on request
K0645.15413A2	blasted	1/4-20	18	9	21,5	15	14,7	22	70,4	79,2	1,2	4	120	on request
K0645.25413A3	blasted	5/16-18	27	11	33,3	24	18,3	28,8	96	108	1,5	8	350	on request
