Product groups
Square tube connectorsfour-way with tapped hole
K0624

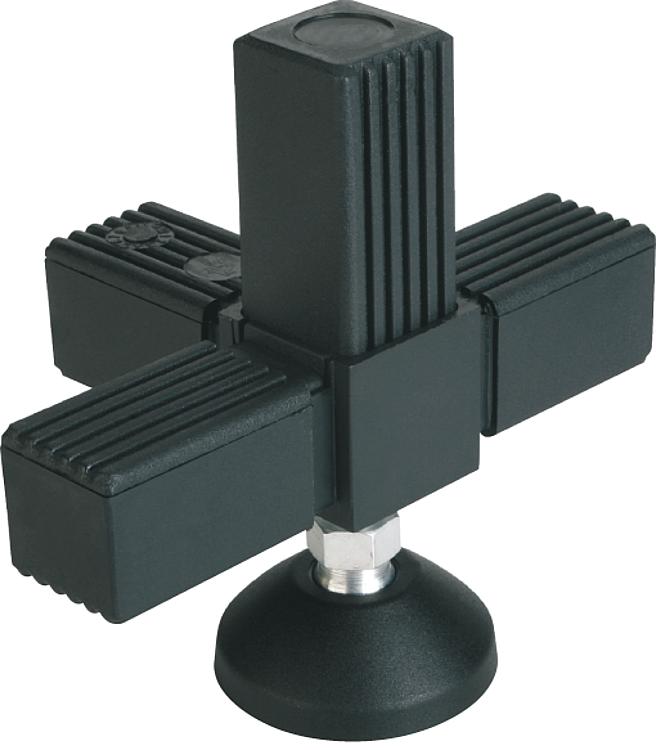

Square tube connectors four-way with tapped hole

go back

Item description/product images

DescriptionMaterial, version:Polyamide PA, black.
Core electro zinc-plated steel.
Note:No screws required. The tube connectors are simply pushed into the appropriate square tubing. They can be dismantled and reused repeatedly. For installing swivel feet, casters etc.Accessory:- Square tubes K0627
- Finned square tubes K0628
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0624 Square tube connectorsfour-way with tapped hole 197 kB
 Technical information plug-in connectors 406 kB

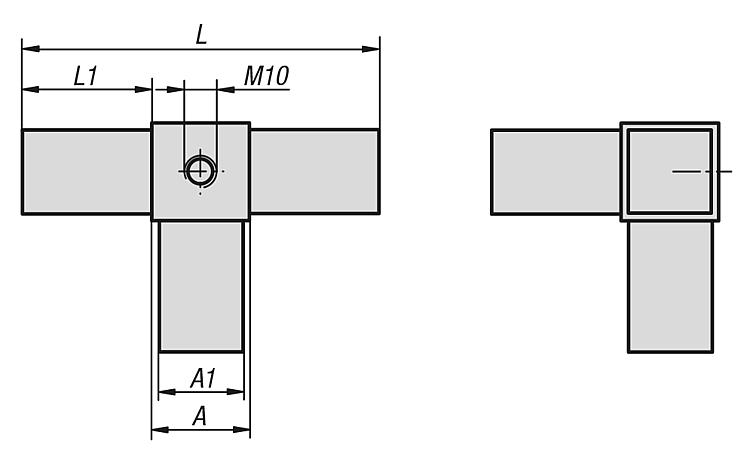

Drawings

Square tube connectorsfour-way with tapped hole

Item selection/filter

Order No.A

A1LL1Suitable for
square tubes
CADAcc.PriceOrder
K0624.125151210252212248,525 x 25 x 1,5  on request
K0624.13020121030261244730 x 30 x 2  on request
