Wing grips "Miniwing", stainless steel, Form D, thread bored out

go back

Products
- Operating parts | standard elements
  - Grips, knobs
    - Wing grips "Miniwing" stainless steel
      - Wing grips "Miniwing", stainless steel, Form D, thread bored out

Item description/product images

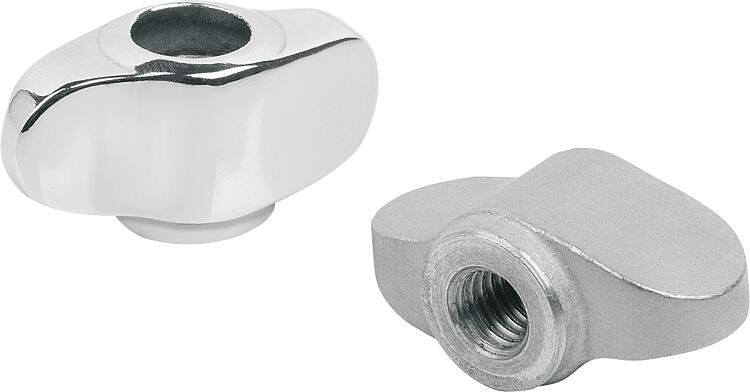

DescriptionProduct description:The Miniwing wing grips is characterised by their ergonomic and compact design.
The materials used enable diverse applications including those with the highest demands on corrosion resistance.Material:

Stainless steel 1.4308 or 1.4404.

Version:Polished or blasted.Note:The M5 thread is compatible with Hygienic USIT® sealing and shim washers K1491.Accessory:

Hygienic USIT^® sealing and shim washer K1491 for the screw-on surface.

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K2041_D Wing grips "Miniwing", stainless steel, Form D, thread bored out

171 kB

Drawings

Item selection/filter

Order No.	Form	Steel code	Surface finish body	A	B	D	D2	D6	H	H1	H2	T	Price
K2041.4280412	D	1.4308	polished	28	13	M4	11,8	8,1	14,1	2,25	13,25	9	on request
K2041.4280512	D	1.4308	polished	28	13	M5	11,8	8,1	14,1	2,25	13,25	9	on request
K2041.4280612	D	1.4308	polished	28	13	M6	11,8	8,1	14,1	2,25	13,25	9	on request
K2041.4280812	D	1.4308	polished	28	13	M8	11,8	8,1	14,1	2,25	13,25	9	on request
K2041.4280411	D	1.4308	blasted	28	13	M4	11,8	8,1	14,1	2,25	13,25	9	on request
K2041.4280511	D	1.4308	blasted	28	13	M5	11,8	8,1	14,1	2,25	13,25	9	on request
K2041.4280611	D	1.4308	blasted	28	13	M6	11,8	8,1	14,1	2,25	13,25	9	on request
K2041.4280811	D	1.4308	blasted	28	13	M8	11,8	8,1	14,1	2,25	13,25	9	on request
K2041.4280422	D	1.4404	polished	28	13	M4	11,8	8,1	14,1	2,25	13,25	9	on request
K2041.4280522	D	1.4404	polished	28	13	M5	11,8	8,1	14,1	2,25	13,25	9	on request
K2041.4280622	D	1.4404	polished	28	13	M6	11,8	8,1	14,1	2,25	13,25	9	on request
K2041.4280822	D	1.4404	polished	28	13	M8	11,8	8,1	14,1	2,25	13,25	9	on request
K2041.4280421	D	1.4404	blasted	28	13	M4	11,8	8,1	14,1	2,25	13,25	9	on request
K2041.4280521	D	1.4404	blasted	28	13	M5	11,8	8,1	14,1	2,25	13,25	9	on request
K2041.4280621	D	1.4404	blasted	28	13	M6	11,8	8,1	14,1	2,25	13,25	9	on request
K2041.4280821	D	1.4404	blasted	28	13	M8	11,8	8,1	14,1	2,25	13,25	9	on request
