Angle plates with or without T-slots cast iron

K1451

Angle plates with or without T-slots cast iron

Products
- Clamping technology
  - Modular Clamping Technology
    - Basic elements
      - Angle plates with or without T-slots cast iron

Item description/product images

Show/filter all items

DescriptionMaterial:GJL 250 annealed.On request:Other slot widths.Drawing reference:

machined faces: +0.2 mm/ +0.5 mm
unmachined faces: ±2 mm

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1451 Angle plates with or without T-slots cast iron

Technical information for positioning basic elements

Drawings (total overview)

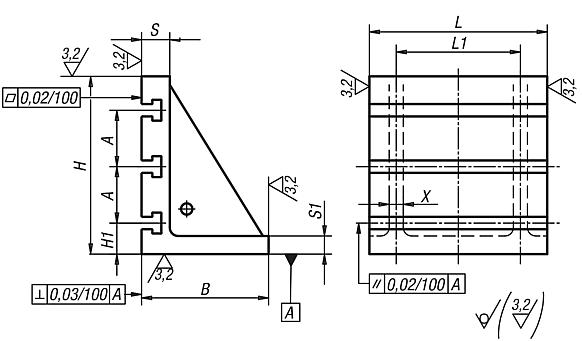

Angle plates with or without T-slots cast iron

Angle plates without T-slots, grey cast iron

More information

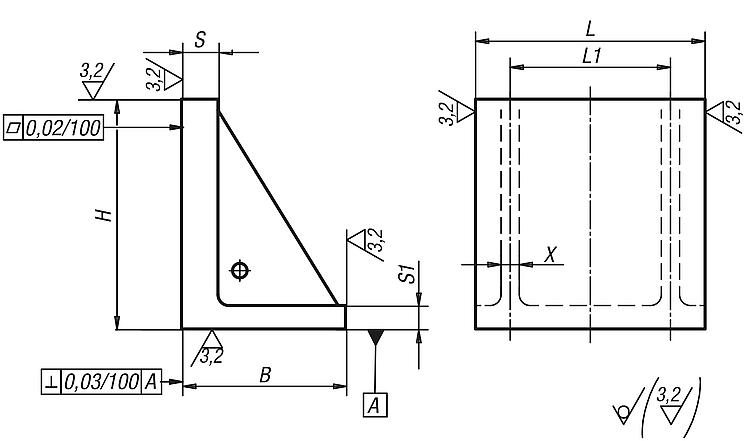

Drawings

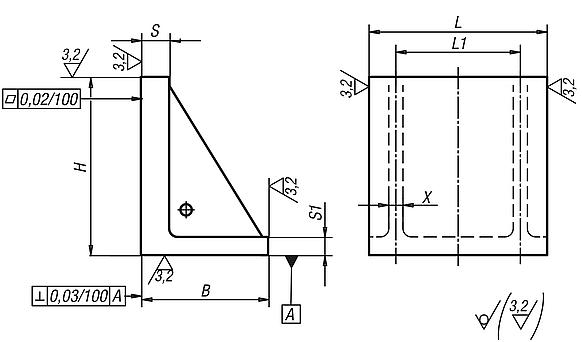

Angle plates without T-slots, grey cast iron

Item selection/filter

Order No.	Version 1	L	L1	B	H	S	S1	X	CAD	Acc.	Price	Order
K1451.100125	without slot	100	40	100	125	20	10	10			on request
K1451.125160	without slot	125	100	100	160	20	10	10			on request
K1451.200250	without slot	200	120	125	250	30	15	15			on request
K1451.250300	without slot	250	200	150	300	40	20	20			on request
K1451.320370	without slot	320	280	200	370	50	25	25			on request
K1451.400450	without slot	400	280	265	450	60	30	30			on request
K1451.500550	without slot	500	360	315	550	70	35	35			on request

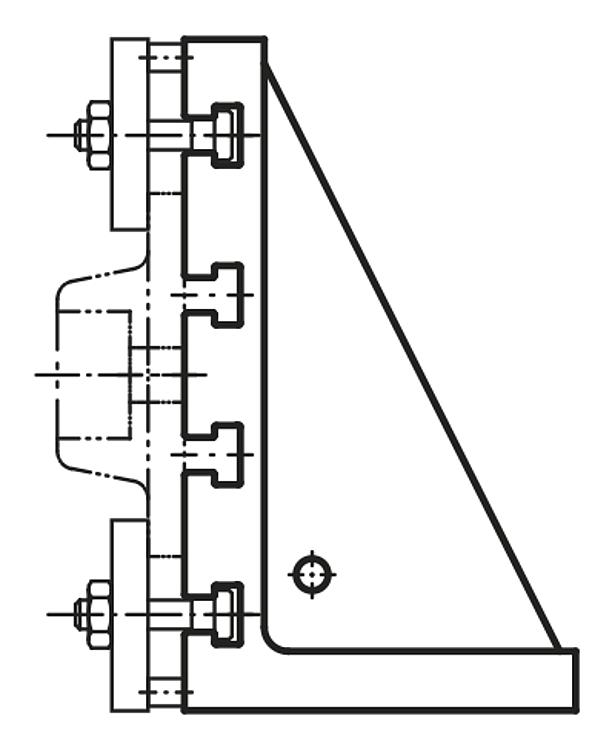

Angle plates with T-slots, grey cast iron

More information

Drawings

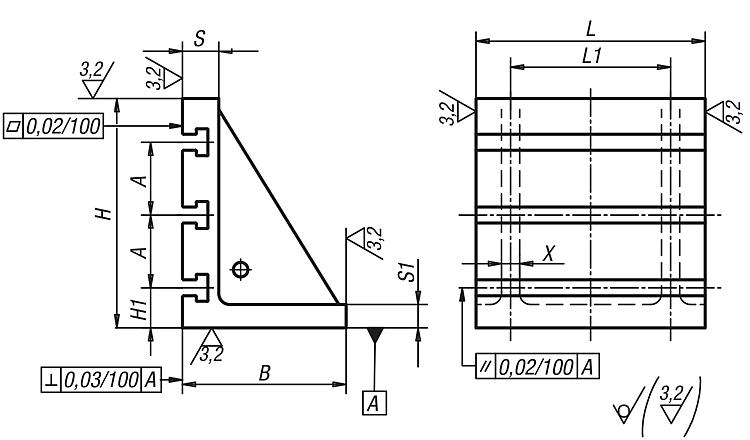

Angle plates with T-slots, grey cast iron

Item selection/filter

Order No.	Version 1	L	L1	B	H	H1	S	S1	A	X	T-slot	CAD	Acc.	Price	Order
K1451.3203701	with t-slot	320	280	200	370	65	50	25	80	25	14			on request
K1451.4004501	with t-slot	400	280	265	450	75	60	30	100	30	18			on request
K1451.5005501	with t-slot	500	360	315	550	75	70	35	100	35	18			on request
