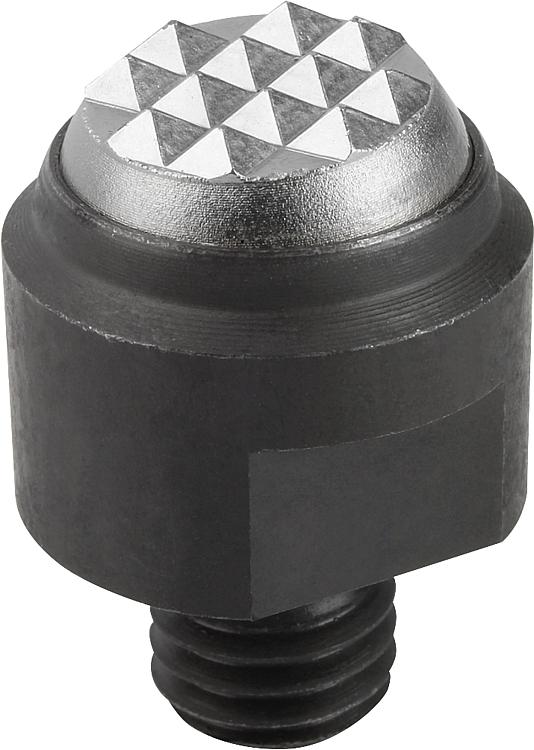

Self-aligning pads, Form M, with external thread, flattened ball, diamond grip
K0282_M

Self-aligning pads, Form M, with external thread, flattened...

go back

Item description/product images

DescriptionMaterial:Body carbon steel.
Ball carbide.
Version:Body tempered and phosphated.
Ball nickel plated.
Note:Self-aligning pads serve as stops, supports and thrust pads in fixture constructions.

Ball secured against rotation.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0282_M Self-aligning pads, Form M, with external thread, flattened ball, diamond grip 163 kB

Drawings

Self-aligning pads, Form M, with external thread, flattened ball, diamond grip

Item selection/filter

Order No.FormD1D2D4L1L2SWBall-ØLoad rating
max. kN
(static load only)
CADAcc.PriceOrder
K0282.908M13M87,713,38111010 on request
K0282.910M20M10121810171625 on request
K0282.912M20M12121812171625 on request
