Hingesaluminium, lift-off, left

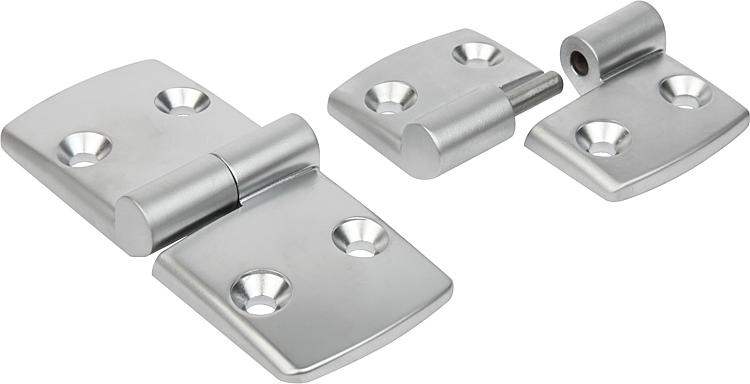

Hinges aluminium, lift-off, left

go back

Item description/product images

DescriptionMaterial:Die-cast aluminium.
Hinge pin stainless steel.
Version:Hinge matt nickel-plated.
Pin bright.
Note:Hinges for panel elements and aluminium profiles.
The hinges can be fitted with a plastic spacer ring on the hinge pin.
On request:Hinges with guide tabs for aluminium profiles (slots 5, 6, 8, 10, 12 and 14).
Unequal leaf combinations.
Special features:
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0579 Hingesaluminium, lift-off, left 154 kB
 Technical information for hinges 309 kB


Hingesaluminium, lift-off, left

Item selection/filter

Order No.

AA1A2A3A4BF1 max.
F2 max.
K0579.12515155215152626480,410,25 on request
K0579.13018185917,517,529,529,5480,450,28 on request
K0579.13520207220203636480,50,25 on request
K0579.14023237722,522,538,538,5480,550,2 on request
K0579.145252587252543,543,5480,550,2 on request
K0579.15028289727,527,548,548,5480,550,175 on request
K0579.160333311532,532,557,557,5480,5750,15 on request
