K1347Strap hinges steel or stainless steel |
go back |
|
|
DescriptionMaterial:Steel.
Stainless steel 1.4301.Version:Steel electro zinc-plated, chromed or matt brass plated.
Stainless steel matt polished.Note:Strap hinge for in-frame doors.
The opening angle is max. 270°.

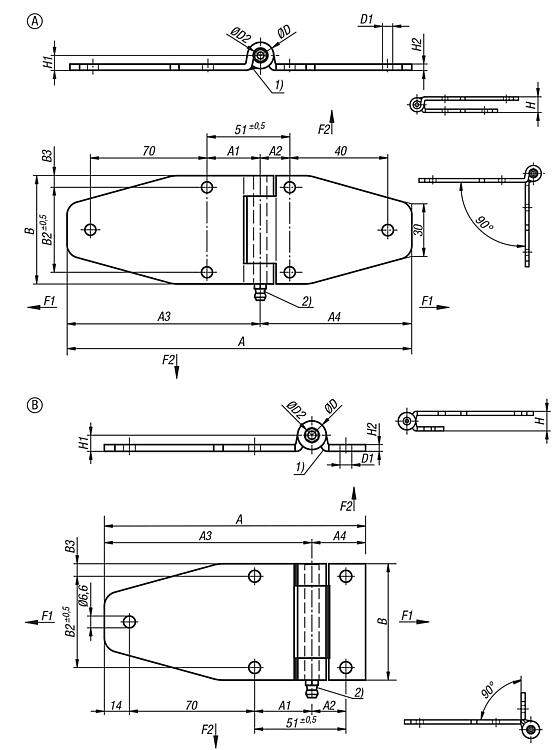

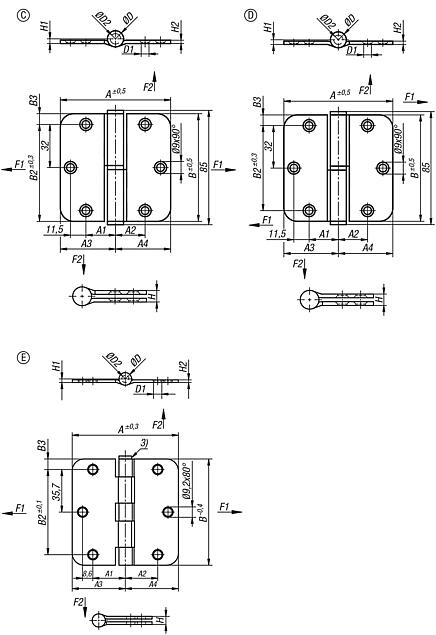

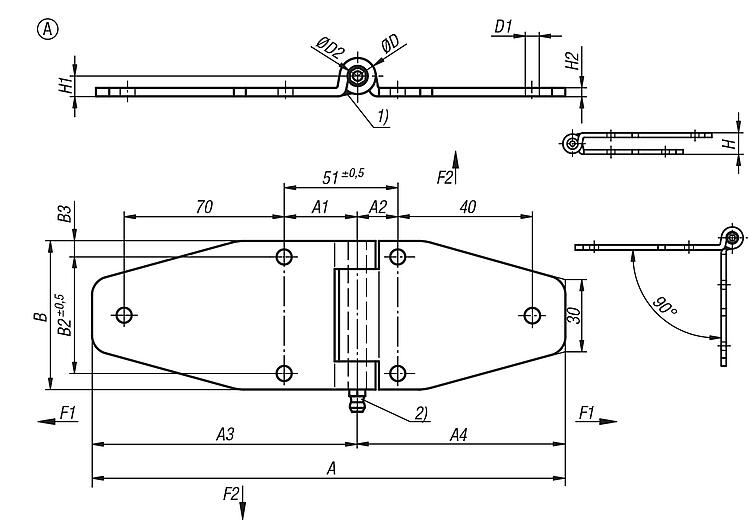

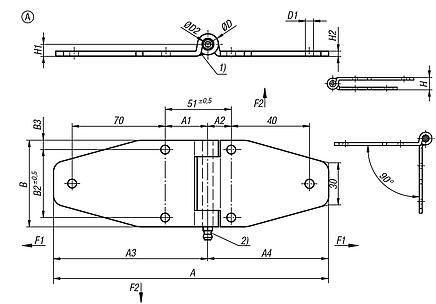

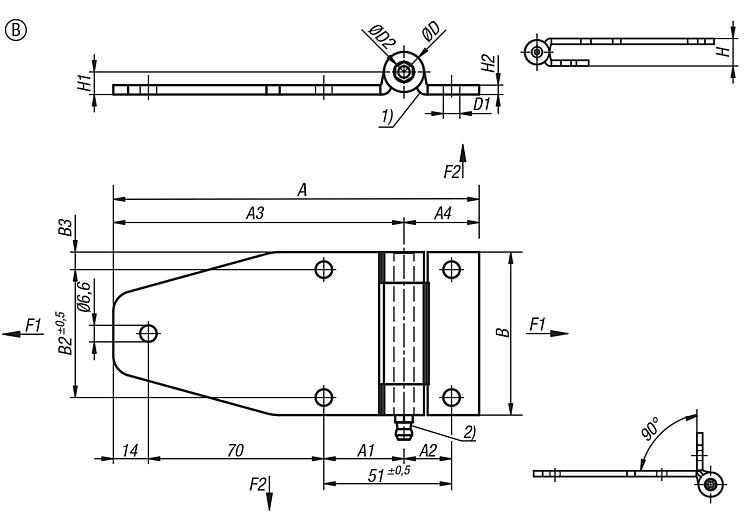

The loading values given for the hinges are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for information purposes only and do not constitute a legally binding assurance of properties. These load values were determined under laboratory conditions. Each user must determine individually whether the hinge is suitable for the respective application. Different materials onto which the hinges are installed, the type of mounting, weather conditions and wear can influence the determined values.Drawing reference:1) Both rolled ends of long leaf are welded
2) Grease nipple
3) Fixed pin DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
|
|

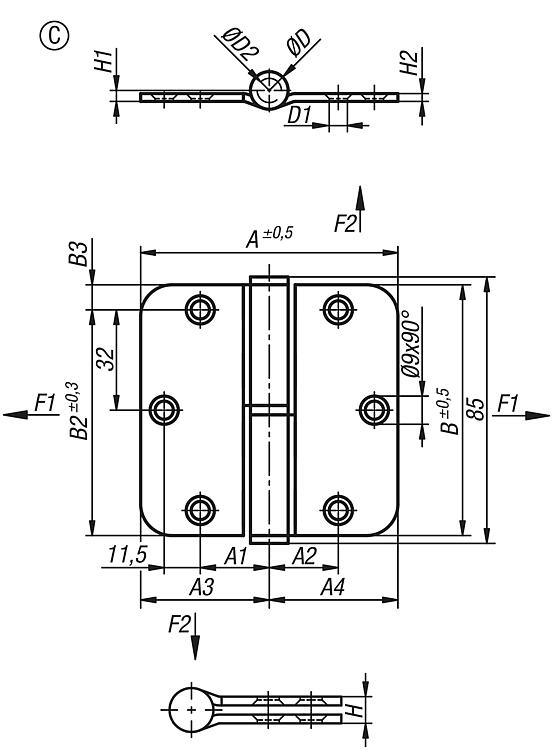

Strap hinges, steel or stainless steel, Form C, right-hand version |
More information |
| Order No. | Form | Form definition | Main
material | Surface finish
body | Version 2 | A | A1 | A2 | A3 | A4 | B
| B2 | B3 | CAD | Acc. | Price | Order |
|---|
| K1347.0541041222200 | C | - | stainless steel A2 | matt polished | lift-off | 82 | 22 | 22 | 41 | 41 | 80 | 64 | 8 |  | | on request | |
| Order No. | D
| D1 | D2 | H | H1 | H2 | CAD | Acc. | Price | Order |
|---|
| K1347.0541041222200 | 12 | 5,8 | 7 | 7 | 3,5 | 2,5 | | | on request | |
|

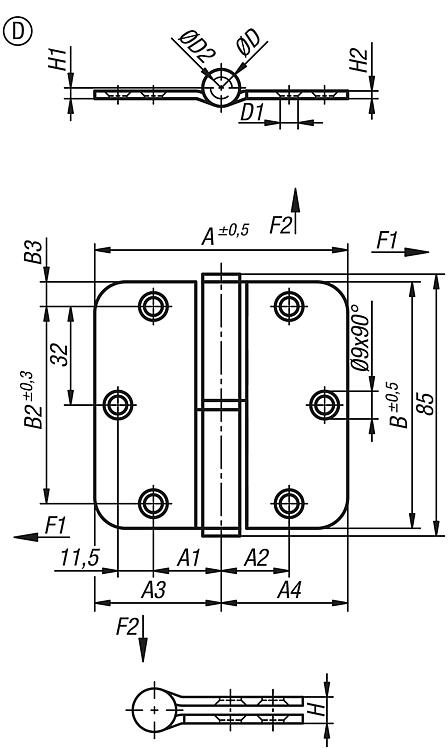

Strap hinges, steel or stainless steel, Form D, left-hand version |
More information |
| Order No. | Form | Form definition | Main
material | Surface finish
body | Version 2 | A | A1 | A2 | A3 | A4 | B
| B2 | B3 | CAD | Acc. | Price | Order |
|---|
| K1347.0541041222201 | D | - | stainless steel A2 | matt polished | lift-off | 82 | 22 | 22 | 41 | 41 | 80 | 64 | 8 | | | on request | |
| Order No. | D
| D1 | D2 | H | H1 | H2 | CAD | Acc. | Price | Order |
|---|
| K1347.0541041222201 | 12 | 5,8 | 7 | 7 | 3,5 | 2,5 | | | on request | |
|
| Order No. | Form | Form definition | Main
material | Surface finish
body | A | A1 | A2 | A3 | A4 | B
| B2 | B3 | CAD | Acc. | Price | Order |
|---|
| K1347.074404427272 | E | - | steel | chromed | 89 | 27,2 | 27,2 | 44,5 | 44,5 | 89 | 71,4 | 8,8 | | | on request | | | K1347.074404427273 | E | - | steel | - | 89 | 27,2 | 27,2 | 44,5 | 44,5 | 89 | 71,4 | 8,8 | | | on request | |
| Order No. | D
| D1 | D2 | H | H1 | H2 | CAD | Acc. | Price | Order |
|---|
| K1347.074404427272 | 10,6 | 7 | 6 | 6 | 3 | 2,2 | | | on request | | | K1347.074404427273 | 10,6 | 7 | 6 | 6 | 3 | 2,2 | | | on request | |
|
