DescriptionMaterial:Handwheel aluminium.
Fixed grip aluminium, axle part black oxidised steel.
Revolving grip aluminium, axle part galvanized and blue passivated steel.
Version:Wheel rim turned and polished.
Radial and axial run-out of rim < IT 12.
On request:Hubs with square socket or plastic-coated handwheels.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0160 HandwheelsDIN 950, aluminium 314 kB

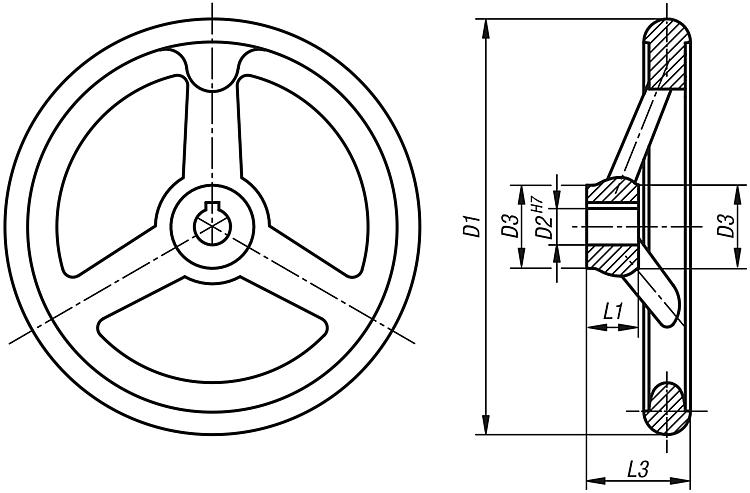

Drawings (total overview)

HandwheelsDIN 950, aluminium
HandwheelsDIN 950, aluminium

Handwheels DIN 950, aluminium, without grip

More information

Drawings

Handwheels DIN 950, aluminium, without grip
Handwheels DIN 950, aluminium, without grip

Item selection/filter

Order No.VersionD1D2D3L1L3B3
T
Number of
spokes
CADAcc.PriceOrder
K0160.0080X10reamed hole8010H7251629--3  on request
K0160.0080X12reamed hole8012H7251629--3  on request
K0160.0100X10reamed hole10010H7291733--3  on request
K0160.0100X12reamed hole10012H7291733--3  on request
K0160.0125X12reamed hole12512H7311836--3  on request
K0160.0125X14reamed hole12514H7311836--3  on request
K0160.0140X14reamed hole14014H7361939--3  on request
K0160.0140X16reamed hole14016H7361939--3  on request
K0160.0160X14reamed hole16014H7362040--3  on request
K0160.0160X16reamed hole16016H7362040--3  on request
K0160.0180X16reamed hole18016H7372243--3  on request
K0160.0180X18reamed hole18018H7372243--3  on request
K0160.0200X18reamed hole20018H7432445--3  on request
K0160.0200X22reamed hole20022H7432445--3  on request
K0160.0250X22reamed hole25022H7492850--5  on request
K0160.0250X26reamed hole25026H7492850--5  on request
K0160.0315X26reamed hole31526H7543356--5  on request
K0160.0315X30reamed hole31530H7543356--5  on request
K0160.0400X30reamed hole40030H7653863--5 on request
K0160.0400X34reamed hole40034H7653863--5 on request
K0160.0500X34reamed hole50034H7794572--5 on request
K0160.0500X40reamed hole50040H7794572--5 on request
K0160.1080X10-8010H7251629311,43  on request
K0160.1080X12-8012H7251629413,83  on request
K0160.1100X10-10010H7291733311,43  on request
K0160.1100X12-10012H7291733413,83  on request
K0160.1125X12-12512H7311836413,83  on request
K0160.1125X14-12514H7311836516,33  on request
K0160.1140X14-14014H7361939516,33  on request
K0160.1140X16-14016H7361939518,33  on request
K0160.1160X14-16014H7362040516,33  on request
K0160.1160X16-16016H7362040518,33  on request
K0160.1180X16-18016H7372243518,33  on request
K0160.1180X18-18018H7372243620,83  on request
K0160.1200X18-20018H7432445620,83  on request
K0160.1200X22-20022H7432445624,83  on request
K0160.1250X22-25022H7492850624,85  on request
K0160.1250X26-25026H7492850829,35  on request
K0160.1315X26-31526H7543356829,35  on request
K0160.1315X30-31530H7543356833,35  on request
K0160.1400X30-40030H7653863833,35 on request
K0160.1400X34-40034H76538631037,35 on request
K0160.1500X34-50034H77945721037,35 on request
K0160.1500X40-50040H77945721243,35 on request

Handwheels DIN 950, aluminium, with fixed grip

More information

Drawings

Handwheels DIN 950, aluminium, with fixed grip
Handwheels DIN 950, aluminium, with fixed grip

Item selection/filter

Order No.VersionD1D2D3L1L3B3
T
Number of
spokes
fixed machine handle
DIN 39 Form E
CADAcc.PriceOrder
K0160.2080X10reamed hole8010H7251629--3ø16 x M6 x 50  on request
K0160.2080X12reamed hole8012H7251629--3ø16 x M6 x 50  on request
K0160.2100X10reamed hole10010H7291733--3ø16 x M6 x 50  on request
K0160.2100X12reamed hole10012H7291733--3ø16 x M6 x 50  on request
K0160.2125X12reamed hole12512H7311836--3ø20 x M8 x 64  on request
K0160.2125X14reamed hole12514H7311836--3ø20 x M8 x 64  on request
K0160.2140X14reamed hole14014H7361939--3ø20 x M8 x 64  on request
K0160.2140X16reamed hole14016H7361939--3ø20 x M8 x 64  on request
K0160.2160X14reamed hole16014H7362040--3ø25 x M10 x 80  on request
K0160.2160X16reamed hole16016H7362040--3ø25 x M10 x 80  on request
K0160.2180X16reamed hole18016H7372243--3ø25 x M10 x 80  on request
K0160.2180X18reamed hole18018H7372243--3ø25 x M10 x 80  on request
K0160.2200X18reamed hole20018H7432445--3ø25 x M10 x 80  on request
K0160.2200X22reamed hole20022H7432445--3ø25 x M10 x 80  on request
K0160.2250X22reamed hole25022H7492850--5ø32 x M12 x 100  on request
K0160.2250X26reamed hole25026H7492850--5ø32 x M12 x 100  on request
K0160.2315X26reamed hole31526H7543356--5ø32 x M12 x 100  on request
K0160.2315X30reamed hole31530H7543356--5ø32 x M12 x 100  on request
K0160.2400X30reamed hole40030H7653863--5ø36 x M16 x 112 on request
K0160.2400X34reamed hole40034H7653863--5ø36 x M16 x 112 on request
K0160.2500X34reamed hole50034H7794572--5ø36 x M16 x 112 on request
K0160.2500X40reamed hole50040H7794572--5ø36 x M16 x 112 on request
K0160.3080X10-8010H7251629311,43ø16 x M6 x 50  on request
K0160.3080X12-8012H7251629413,83ø16 x M6 x 50  on request
K0160.3100X10-10010H7291733311,43ø16 x M6 x 50  on request
K0160.3100X12-10012H7291733413,83ø16 x M6 x 50  on request
K0160.3125X12-12512H7311836413,83ø20 x M8 x 64  on request
K0160.3125X14-12514H7311836516,33ø20 x M8 x 64  on request
K0160.3140X14-14014H7361939516,33ø20 x M8 x 64  on request
K0160.3140X16-14016H7361939518,33ø20 x M8 x 64  on request
K0160.3160X14-16014H7362040516,33ø25 x M10 x 80  on request
K0160.3160X16-16016H7362040518,33ø25 x M10 x 80  on request
K0160.3180X16-18016H7372243518,33ø25 x M10 x 80  on request
K0160.3180X18-18018H7372243620,83ø25 x M10 x 80  on request
K0160.3200X18-20018H7432445620,83ø25 x M10 x 80  on request
K0160.3200X22-20022H7432445624,83ø25 x M10 x 80  on request
K0160.3250X22-25022H7492850624,85ø32 x M12 x 100  on request
K0160.3250X26-25026H7492850829,35ø32 x M12 x 100  on request
K0160.3315X26-31526H7543356829,35ø32 x M12 x 100  on request
K0160.3315X30-31530H7543356833,35ø32 x M12 x 100  on request
K0160.3400X30-40030H7653863833,35ø36 x M16 x 112 on request
K0160.3400X34-40034H76538631037,35ø36 x M16 x 112 on request
K0160.3500X34-50034H77945721037,35ø36 x M16 x 112 on request
K0160.3500X40-50040H77945721243,35ø36 x M16 x 112 on request

Handwheels DIN 950, aluminium, with revolving grip

More information

Drawings

Handwheels DIN 950, aluminium, with revolving grip
Handwheels DIN 950, aluminium, with revolving grip

Item selection/filter

Order No.VersionD1D2D3L1L3B3
T
Number of
spokes
revolving machine handle
DIN 98 Form E
CADAcc.PriceOrder
K0160.4080X10reamed hole8010H7251629--3ø16 x M6 x 54.5  on request
K0160.4080X12reamed hole8012H7251629--3ø16 x M6 x 54.5  on request
K0160.4100X10reamed hole10010H7291733--3ø16 x M6 x 54.5  on request
K0160.4100X12reamed hole10012H7291733--3ø16 x M6 x 54.5  on request
K0160.4125X12reamed hole12512H7311836--3ø20 x M8 x 67  on request
K0160.4125X14reamed hole12514H7311836--3ø20 x M8 x 67  on request
K0160.4140X14reamed hole14014H7361939--3ø20 x M8 x 67  on request
K0160.4140X16reamed hole14016H7361939--3ø20 x M8 x 67  on request
K0160.4160X14reamed hole16014H7362040--3ø25 x M10 x 83  on request
K0160.4160X16reamed hole16016H7362040--3ø25 x M10 x 83  on request
K0160.4180X16reamed hole18016H7372243--3ø25 x M10 x 83  on request
K0160.4180X18reamed hole18018H7372243--3ø25 x M10 x 83  on request
K0160.4200X18reamed hole20018H7432445--3ø25 x M10 x 83  on request
K0160.4200X22reamed hole20022H7432445--3ø25 x M10 x 83  on request
K0160.4250X22reamed hole25022H7492850--5ø32 x M12 x 105,5  on request
K0160.4250X26reamed hole25026H7492850--5ø32 x M12 x 105,5  on request
K0160.4315X26reamed hole31526H7543356--5ø32 x M12 x 105,5  on request
K0160.4315X30reamed hole31530H7543356--5ø32 x M12 x 105,5  on request
K0160.4400X30reamed hole40030H7653863--5ø36 x M16 x 117 on request
K0160.4400X34reamed hole40034H7653863--5ø36 x M16 x 117 on request
K0160.4500X34reamed hole50034H7794572--5ø36 x M16 x 117 on request
K0160.4500X40reamed hole50040H7794572--5ø36 x M16 x 117 on request
K0160.5080X10-8010H7251629311,43ø16 x M6 x 54.5  on request
K0160.5080X12-8012H7251629413,83ø16 x M6 x 54.5  on request
K0160.5100X10-10010H7291733311,43ø16 x M6 x 54.5  on request
K0160.5100X12-10012H7291733413,83ø16 x M6 x 54.5  on request
K0160.5125X12-12512H7311836413,83ø20 x M8 x 67  on request
K0160.5125X14-12514H7311836516,33ø20 x M8 x 67  on request
K0160.5140X14-14014H7361939516,33ø20 x M8 x 67  on request
K0160.5140X16-14016H7361939518,33ø20 x M8 x 67  on request
K0160.5160X14-16014H7362040516,33ø25 x M10 x 83  on request
K0160.5160X16-16016H7362040518,33ø25 x M10 x 83  on request
K0160.5180X16-18016H7372243518,33ø25 x M10 x 83  on request
K0160.5180X18-18018H7372243620,83ø25 x M10 x 83  on request
K0160.5200X18-20018H7432445620,83ø25 x M10 x 83  on request
K0160.5200X22-20022H7432445624,83ø25 x M10 x 83  on request
K0160.5250X22-25022H7492850624,85ø32 x M12 x 105,5  on request
K0160.5250X26-25026H7492850829,35ø32 x M12 x 105,5  on request
K0160.5315X26-31526H7543356829,35ø32 x M12 x 105,5  on request
K0160.5315X30-31530H7543356833,35ø32 x M12 x 105,5  on request
K0160.5400X30-40030H7653863833,35ø36 x M16 x 117 on request
K0160.5400X34-40034H76538631037,35ø36 x M16 x 117 on request
K0160.5500X34-50034H77945721037,35ø36 x M16 x 117 on request
K0160.5500X40-50040H77945721243,35ø36 x M16 x 117 on request
