Handwheels DIN 950, stainless steel
K1208

Handwheels DIN 950, stainless steel

go back

Item description/product images

DescriptionMaterial:Stainless steel 1.4401.Version:Wheel rim turned
and polished
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1208 Handwheels DIN 950, stainless steel 284 kB

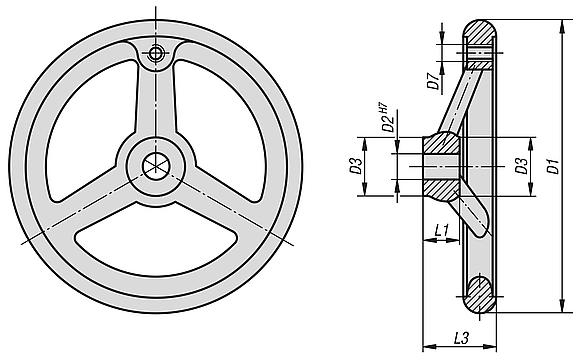

Drawings

Handwheels DIN 950, stainless steel
Handwheels DIN 950, stainless steel

Item selection/filter

Order No.VersionD1

D2D3D7L1L3B3
T
No. of
spokes
CADAcc.PriceOrder
K1208.0100X10reamed hole10010H726M61733--3 on request
K1208.0125X12reamed hole12512H728M81836--3 on request
K1208.0140X14reamed hole14014H730M81939--3 on request
K1208.0160X16reamed hole16016H732M102040--3 on request
K1208.0200X18reamed hole20018H738M102445--3 on request
K1208.1100X10reamed hole with slot10010H726M61733311,43 on request
K1208.1125X12reamed hole with slot12512H728M81836413,83 on request
K1208.1140X14reamed hole with slot14014H730M81939516,33 on request
K1208.1160X16reamed hole with slot16016H732M102040518,33 on request
K1208.1200X18reamed hole with slot20018H738M102445620,83 on request
