Product groups

Item description/product images

Show/filter all items

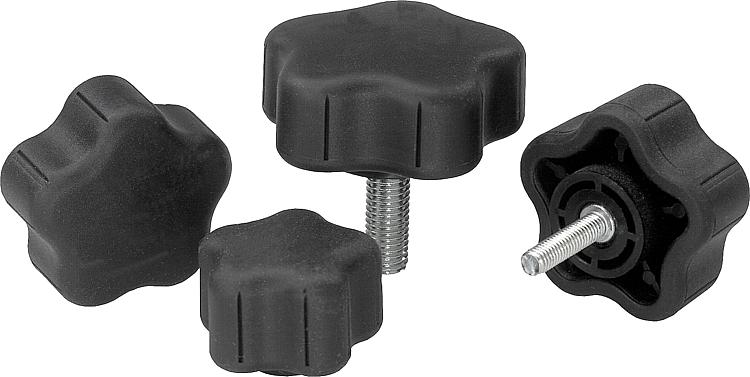

DescriptionProduct description:The material and form lend this grip a natural and secure gripping effect.Material, version:Grip black hard thermoplastic.
Coating black soft thermoplastic.
Tapped bush brass.
Screw galvanized steel grade 5.8.
Note:SYMPA TOUCH five lobe grips are available in 3 sizes with internal and external threads.On request:Other screw sizes, screw lengths, versions and colours.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0279 Five lobe grips 158 kB

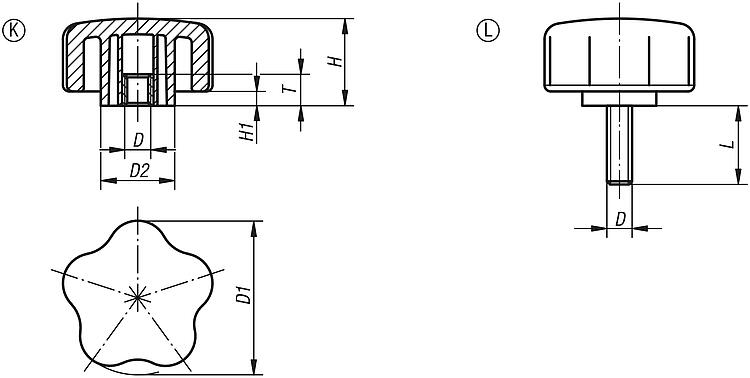

Drawings (total overview)

Five lobe grips

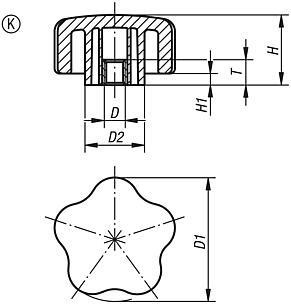

Five lobe grips with internal thread

More information

Drawings

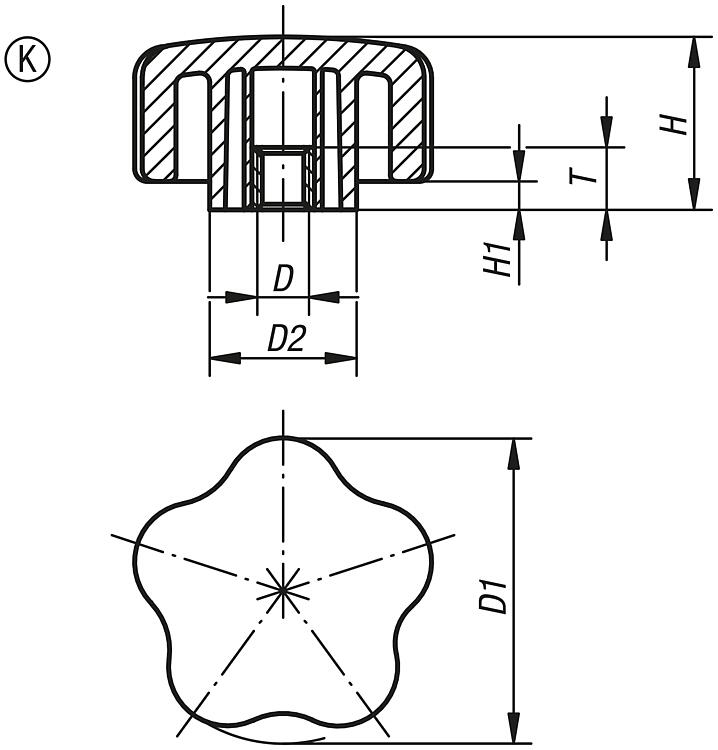

Five lobe grips with internal thread

Item selection/filter

Order No.

FormDD1D2HH1TCADAcc.PriceOrder
K0279.4005KM5401927,74,612,5 on request
K0279.4006KM6401927,74,612,5 on request
K0279.4008KM8401927,74,612,5 on request
K0279.4010KM10401927,74,612,5 on request
K0279.5006KM65023,527,74,612,5 on request
K0279.5008KM85023,527,74,612,5 on request
K0279.5010KM105023,527,74,612,5 on request
K0279.6006KM66031,827,74,612,5 on request
K0279.6008KM86031,827,74,612,5 on request
K0279.6010KM106031,827,74,612,5 on request

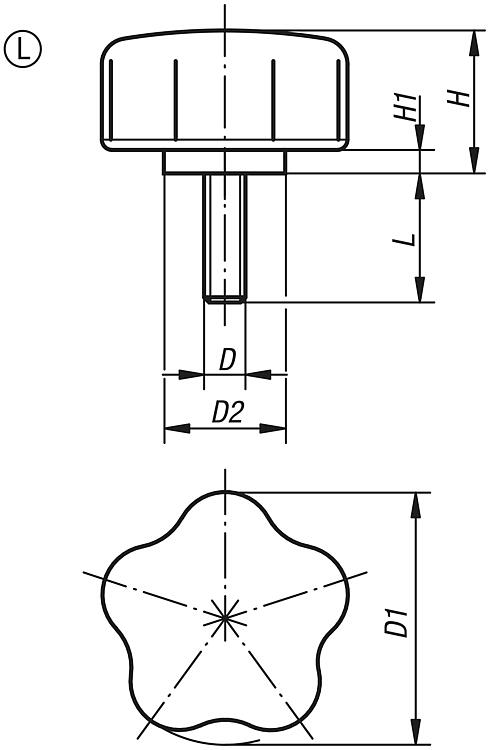

Five lobe grips with external thread

More information

Drawings

Five lobe grips with external thread

Item selection/filter

Order No.FormDD1D2HH1LCADAcc.PriceOrder
K0279.4006X15LM6401927,74,615 on request
K0279.4006X20LM6401927,74,620 on request
K0279.4006X25LM6401927,74,625 on request
K0279.4006X35LM6401927,74,635 on request
K0279.4008X16LM8401927,74,616 on request
K0279.4008X25LM8401927,74,625 on request
K0279.4008X35LM8401927,74,635 on request
K0279.4010X20LM10401927,74,620 on request
K0279.4010X30LM10401927,74,630 on request
K0279.4010X40LM10401927,74,640 on request
K0279.4010X50LM10401927,74,650 on request
K0279.5006X15LM65023,527,74,615 on request
K0279.5006X20LM65023,527,74,620 on request
K0279.5006X25LM65023,527,74,625 on request
K0279.5006X35LM65023,527,74,635 on request
K0279.5008X16LM85023,527,74,616 on request
K0279.5008X25LM85023,527,74,625 on request
K0279.5008X35LM85023,527,74,635 on request
K0279.5010X30LM105023,527,74,630 on request
K0279.5010X40LM105023,527,74,640 on request
K0279.5010X50LM105023,527,74,650 on request
K0279.6006X15LM66031,827,74,615 on request
K0279.6006X20LM66031,827,74,620 on request
K0279.6006X25LM63031,827,74,625 on request
K0279.6006X35LM66031,827,74,635 on request
K0279.6008X16LM86031,827,74,616 on request
K0279.6008X25LM86031,827,74,625 on request
K0279.6008X35LM86031,827,74,635 on request
K0279.6010X20LM106031,827,74,620 on request
K0279.6010X30LM106031,827,74,630 on request
K0279.6010X40LM106031,827,74,640 on request
K0279.6010X50LM106031,827,74,650 on request
