        Swing clamps, hydraulic, double / single-acting with spring return, Form A, flange top

Item description/product images

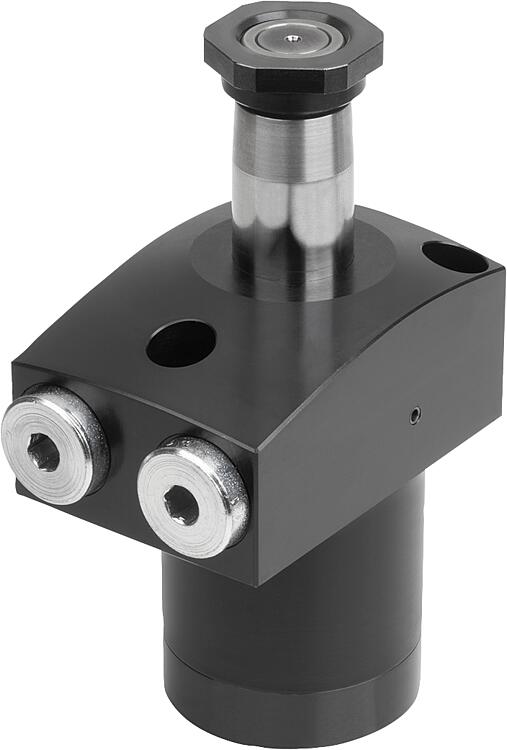

DescriptionProduct description:Swing clamps are designed for clamping fixtures where the clamping points must be clear during workpiece removal or placement. These swing clamps operate as single-acting or double-acting traction cylinders. There is a choice of three housing types for the swing clamps as well as various actuation methods. The clamping movement is initiated by a combined swivel and stroke motion. The actual clamping travel then occurs with a linear movement. A wide range of variants with a left or right swivel angle of 90° are available. The swing clamps are very durable because they have a metal wiper which protects against swarf. In addition, an overload protection protects the swing mechanism from damage if the swing process is blocked.Material:Housing and piston steel.
Seal NBRVersion:Housing black oxidised.
Piston hardened.Note:If the permissible volume flow on the swing clamp could be exceeded, an intermediate throttle check valve must be installed.
The permissible operating pressure of the swing clamps depends on the clamping arm length.
The clamping arms must be restrained when being mounted so that the ball guide of the swing clamps is not damaged.
Depending on the vent connection, the sinter filter of the single-acting swing clamps must be replaced by a screw plug.

The clamping arm of the swing clamp is not supplied.

Follow safety instructions.Type of operation:- Thread connection.
- O-ring flange connection.
- Drilled channels.Technical data:Max. operating pressure: 500 bar.Assembly:See mounting contour.Advantages:- Integrated metal wiper.
- Integrated overload protection.
- Collision-free accessibility to the workpiece.
- Many types.
- Pressure supplied over diverse connection possibilities.On request:Larger piston diameters and longer strokes, other swivel angles, various clamping arm mounts, with position control.Accessory:Clamping arm for swing clamp K1865.Supplied withSupplied with 1 screw or nut for mounting the clamping arm.Drawing reference:

Form A: Flange top
Form B: Flange under
Form C: Screw-on thread

1) Mounting contour
2) See accessories
3) By the single-acting cylinders, the port is equipped with a built-in sinter filter.
4) Left swivel
5) Right swivel
6) clamp
7) release or vent by single acting cylinders

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1864_A Swing clamps, hydraulic, double / single-acting with spring return, Form A, flange top

382 kB

Technical information for hydraulic clamping elements

150 kB

Drawings

Item selection/filter

Order No.	Form	Form definition	Connection type	Swivel direction	Piston Ø	travel	B	B1	B2	B3	D	D1	D2	D3	D4	D8	G	G1	H	H1	H2	Price
K1864.25101404190211	A	double-acting	Thread and O-ring connection	left	25	10	50	37	28	32	44,8	23,5	20	11	6,6	45	M18x1,5	M6	126,5	78	57	on request
K1864.25101404190111	A	double-acting	Thread and O-ring connection	ght	25	10	50	37	28	32	44,8	23,5	20	11	6,6	45	M18x1,5	M6	126,5	78	57	on request
K1864.25251404190211	A	double-acting	Thread and O-ring connection	left	25	25	50	37	28	32	44,8	23,5	20	11	6,6	45	M18x1,5	M6	158,5	94	73	on request
K1864.25251404190111	A	double-acting	Thread and O-ring connection	ght	25	25	50	37	28	32	44,8	23,5	20	11	6,6	45	M18x1,5	M6	158,5	94	73	on request
K1864.40131404190211	A	double-acting	Thread and O-ring connection	left	40	13	63	48	41	46	59,8	33,5	32	15	9	60	M28x1,5	M8	147,5	94	66	on request
K1864.40131404190111	A	double-acting	Thread and O-ring connection	ght	40	13	63	48	41	46	59,8	33,5	32	15	9	60	M28x1,5	M8	147,5	94	66	on request
K1864.40251404190111	A	double-acting	Thread and O-ring connection	ght	40	25	63	48	41	46	59,8	33,5	32	15	9	60	M28x1,5	M8	173,5	107	79	on request
K1864.40251404190211	A	double-acting	Thread and O-ring connection	left	40	25	63	48	41	46	59,8	33,5	32	15	9	60	M28x1,5	M8	173,5	107	79	on request
K1864.25102404190111	A	single-acting	Thread and O-ring connection	ght	25	10	50	37	28	32	44,8	23,5	20	11	6,6	45	M18x1,5	M6	126,5	78	57	on request
K1864.25102404190211	A	single-acting	Thread and O-ring connection	left	25	10	50	37	28	32	44,8	23,5	20	11	6,6	45	M18x1,5	M6	126,5	78	57	on request
K1864.40132404190111	A	single-acting	Thread and O-ring connection	ght	40	13	63	48	41	46	59,8	33,5	32	15	9	60	M28x1,5	M8	147,5	94	66	on request
K1864.40132404190211	A	single-acting	Thread and O-ring connection	left	40	13	63	48	41	46	59,8	33,5	32	15	9	60	M28x1,5	M8	147,5	94	66	on request

Order No.	Form	H3	H4	H5	H6	H7	H8	L	L1	L2	L3	L4	L5	SW	Flow rate max. (cm³/s)	Oil requirement / stroke (cm³)	Oil requirement / return stroke (cm³)	Price
K1864.25101404190211	A	34	14	9	18	8	10	70	26,5	20	30	17	26,5	27	3,2	3,2	8,8	on request
K1864.25101404190111	A	34	14	9	18	8	10	70	26,5	20	30	17	26,5	27	3,2	3,2	8,8	on request
K1864.25251404190211	A	34	14	9	18	10	25	70	26,5	20	30	17	26,5	27	3,2	6	17	on request
K1864.25251404190111	A	34	14	9	18	10	25	70	26,5	20	30	17	26,5	27	3,2	6	17	on request
K1864.40131404190211	A	40	14	10	19	9	13	85	34,5	27	38	24	31	40	10	10	27,7	on request
K1864.40131404190111	A	40	14	10	19	9	13	85	34,5	27	38	24	31	40	10	10	27,7	on request
K1864.40251404190111	A	40	14	10	19	10	25	85	34,5	27	38	24	31	40	10	16	44	on request
K1864.40251404190211	A	40	14	10	19	10	25	85	34,5	27	38	24	31	40	10	16	44	on request
K1864.25102404190111	A	34	14	9	18	8	10	70	26,5	20	30	17	26,5	27	3,2	3,2	-	on request
K1864.25102404190211	A	34	14	9	18	8	10	70	26,5	20	30	17	26,5	27	3,2	3,2	-	on request
K1864.40132404190111	A	40	14	10	19	9	13	85	34,5	27	38	24	31	40	10	10	-	on request
K1864.40132404190211	A	40	14	10	19	9	13	85	34,5	27	38	24	31	40	10	10	-	on request
