K1220Locating bushes, nickel-plated steel, for pneumatic locating... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Carbon steel.Version:nickel-plated.Note:Locating bushes are placed in a fixture or interchangeable subplate and form the counterpart to the locating cylinder.
The locating bushes are centred in a reamed hole and then fastened with 4 screws.
The balls of the locating cylinder engage in the groove in the locating bush, thereby forming a fast, secure and highly accurate changeover unit, and reducing setup and changeover times.Accessory:K1219 Pneumatic locating cylinder.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

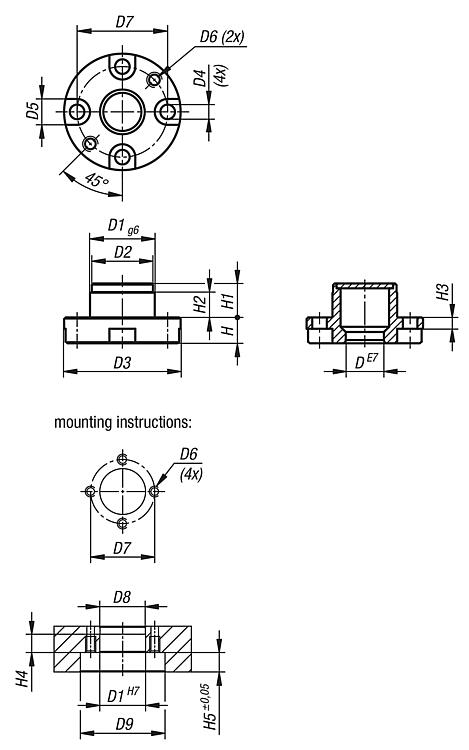

| Order No. | D
| D1 | D2 | D3 | D4 | D5 | D6 | D7 | D8 | D9 | H | H1 | H2 | H3 | H4 | H5 | CAD | Acc. | Price | Order |
|---|
| K1220.12 | 12,1 | 20 | 19,6 | 36 | 4,5 | 8 | M4 | 28 | 19,8 | 37 | 8 | 10,5 | 7,5 | 3,5 | 8 | 8,5 |  | | on request | | | K1220.16 | 16,1 | 25 | 24,6 | 44 | 5,5 | 9,5 | M5 | 34 | 24,8 | 45 | 9,5 | 11 | 7 | 4 | 7,5 | 10 | | | on request | |
