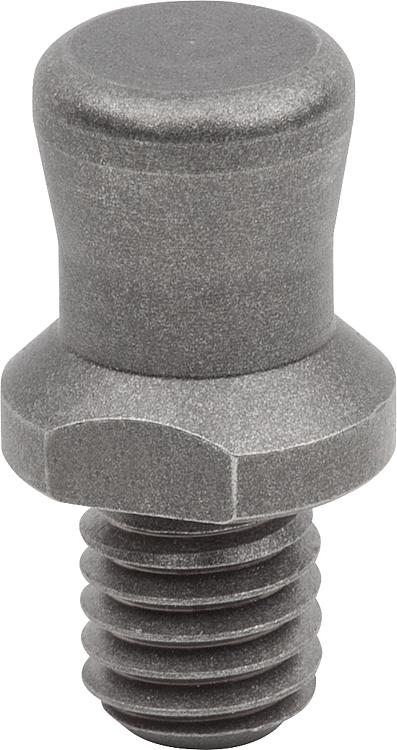

K1564Clamping pin stainless steel |
go back |
|
Item description/product images |
|
|

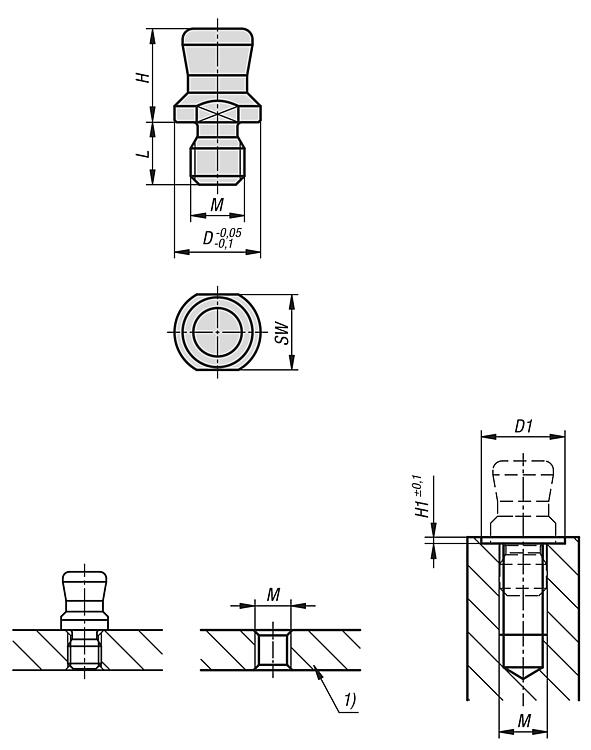

DescriptionMaterial:Stainless steelVersion:Hardened.Note:Colour may differ from image due to curing process.Type of operation:Screw the clamping pin into the thread and tighten. See assembly drawing.Accessory:Locating fixture round K1740.
Locating fixture flange K1741.Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | D
| D1 | H | H1 | L | M | SW | CAD | Acc. | Price | Order |
|---|
| K1564.16 | 6 | 7 | 7,6 | 0,5 | 5,8 | M04X0,7 | 5 |  | | on request | | | K1564.18 | 8 | 9 | 8,7 | 0,5 | 5,8 | M05X0,8 | 7 | | | on request | |
