Tongues for quarter-turn locks without stop, steel

go back

Products
- Operating parts | standard elements
  - Quarter-turn locks, edge protection profiles
    - Tongues for quarter-turn locks without stop, steel

Item description/product images

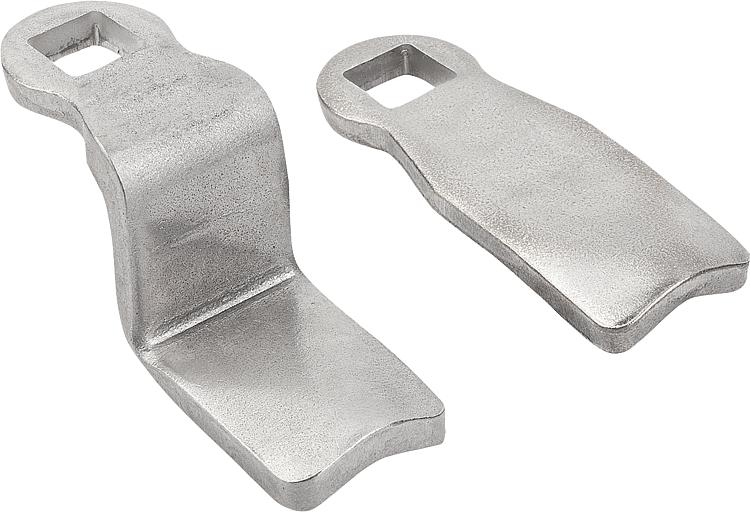

DescriptionMaterial:Steel.Version:Electro zinc-plated.Note:A* in mm for housing length H=18, H=26.1 or 35.5 mm.Accessory:Quarter-turn lock zinc, for fire services, DIN 14925 K2219.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

K2244_Datasheet_32837_Tongues_for_quarter-turn_locks_without_stop_steel--en

215 kB

Drawings

Item selection/filter

Order No.	Version 1	Version 2	B	B1	A for housing length H=18	A at H=26.1	A at H=35.5	L
K2244.145X040	without stop	offset upwards	19,5	8,1	4	12,1	21,5	45
K2244.145X060	without stop	offset upwards	19,5	8,1	6	14,1	23,5	45
K2244.145X080	without stop	offset upwards	19,5	8,1	8	16,1	25,5	45
K2244.145X100	without stop	offset upwards	19,5	8,1	10	18,1	27,5	45
K2244.145X120	without stop	offset upwards	19,5	8,1	12	20,1	29,5	45
K2244.145X140	without stop	offset upwards	19,5	8,1	14	22,1	31,5	45
K2244.145X160	without stop	offset upwards	19,5	8,1	16	24,1	33,5	45
K2244.145X180	without stop	straight	19,5	8,1	18	26,1	35,5	45
K2244.145X200	without stop	offset downwards	19,5	8,1	20	28,1	37,5	45
K2244.145X220	without stop	offset downwards	19,5	8,1	22	30,1	39,5	45
K2244.145X240	without stop	offset downwards	19,5	8,1	24	32,1	41,5	45
K2244.145X260	without stop	offset downwards	19,5	8,1	26	34,1	43,5	45
K2244.145X280	without stop	offset downwards	19,5	8,1	28	36,1	45,5	45
K2244.145X300	without stop	offset downwards	19,5	8,1	30	38,1	47,5	45
K2244.145X320	without stop	offset downwards	19,5	8,1	32	40,1	49,5	45
K2244.145X340	without stop	offset downwards	19,5	8,1	34	42,1	51,5	45
K2244.145X360	without stop	offset downwards	19,5	8,1	36	44,1	53,5	45
K2244.145X380	without stop	offset downwards	19,5	8,1	38	46,1	55,5	45
K2244.145X400	without stop	offset downwards	19,5	8,1	40	48,1	57,5	45
K2244.145X420	without stop	offset downwards	19,5	8,1	42	50,1	59,5	45
K2244.145X440	without stop	offset downwards	19,5	8,1	44	52,1	61,5	45
K2244.145X460	without stop	offset downwards	19,5	8,1	46	54,1	63,5	45
K2244.145X480	without stop	offset downwards	19,5	8,1	48	56,1	65,5	45
K2244.145X500	without stop	offset downwards	19,5	8,1	50	58,1	67,5	45
K2244.135X160	without stop	offset upwards	19,5	8,1	16	24,1	33,5	35
K2244.135X180	without stop	straight	19,5	8,1	18	26,1	35,5	35
K2244.135X200	without stop	offset downwards	19,5	8,1	20	28,1	37,5	35
K2244.135X220	without stop	offset downwards	19,5	8,1	22	30,1	39,5	35
K2244.135X240	without stop	offset downwards	19,5	8,1	24	32,1	41,5	35
