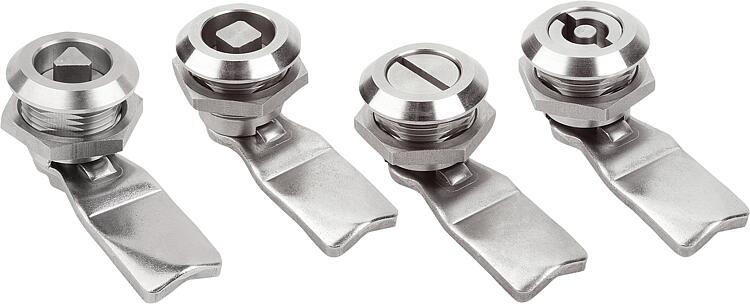

Quarter-turn locks, stainless steel 1.4305, housing diameter 28 mm
Item description/product images
DescriptionMaterial:
Stainless steel 1.4305.
Version:Bright.Note:Rating IP65. This is achieved using an additional O-ring underneath the actuator and a PUR seal foamed onto the housing. The quarter-turn lock can be installed pre-assembled.
Please order the required tongue separately. Every tongue can be combined with this housing.

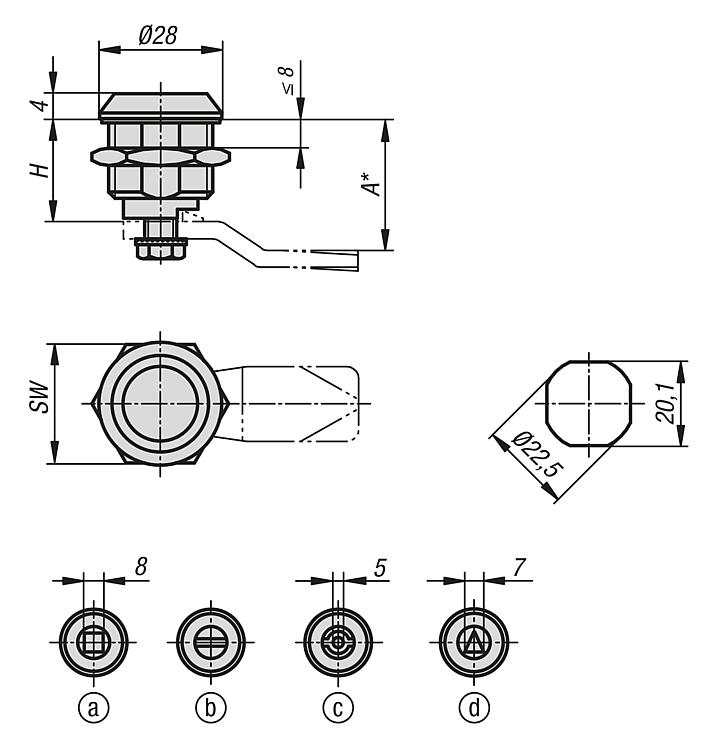

*Dimension A results from the combination of the quarter turn lock and the tongue and is specified with the matching tongues.Accessory:Key K0535. Tongue for stainless steel quarter-turn lock K1114.Drawing reference:
Actuation: a) square 8 mm b) slit c) double lug 5 mm d) triangle 7 mm
Special features:
