Clevis, steel or stainless steel with external thread

go back

Products
- Operating parts | standard elements
  - Joints
    - Clevis, steel or stainless steel with external thread

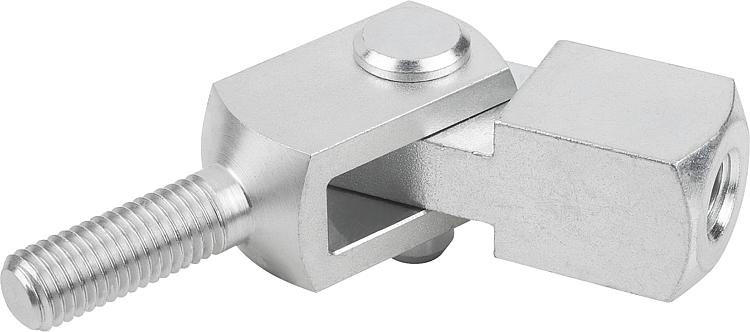

Item description/product images

DescriptionMaterial:

Steel or 1.4305 stainless steel.

Version:Steel electro zinc-plated.
Stainless steel bright.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1459 Clevis, steel or stainless steel with external thread

240 kB

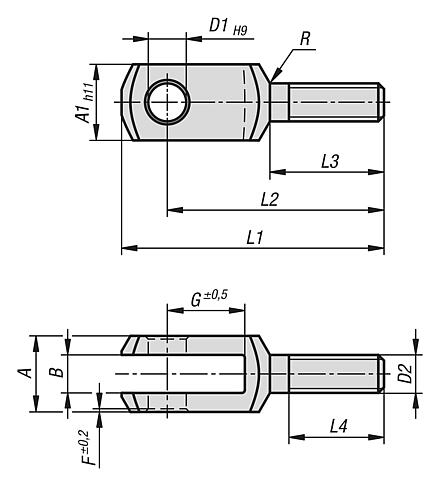

Drawings

Item selection/filter

Order No.	Main material	Version 2	A	A1	B	D1	D2	F	G	L1	L2	L3	L4	R
K1459.0612	steel	RH thread	12	12	6	6	M6	0,5	12	44	37	20	15	0,8
K1459.0816	steel	RH thread	16	16	8	8	M8	0,5	16	57	47	25	20	0,8
K1459.1020	steel	RH thread	20	20	10	10	M10	0,5	20	69	57	30	25	0,8
K1459.1224	steel	RH thread	24	24	12	12	M12	0,5	24	82	68	35	30	0,8
K1459.1428	steel	RH thread	27	27	14	14	M14	1	28	94	78	40	35	1,2
K1459.1632	steel	RH thread	32	32	16	16	M16	1	32	108	89	45	40	1,2
K1459.2040	steel	RH thread	40	40	20	20	M20	1	40	134	109	55	50	1,5
K1459.06121	steel	LH thread	12	12	6	6	M6	0,5	12	44	37	20	15	0,8
K1459.08161	steel	LH thread	16	16	8	8	M8	0,5	16	57	47	25	20	0,8
K1459.10201	steel	LH thread	20	20	10	10	M10	0,5	20	69	57	30	25	0,8
K1459.12241	steel	LH thread	24	24	12	12	M12	0,5	24	82	68	35	30	0,8
K1459.14281	steel	LH thread	27	27	14	14	M14	1	28	94	78	40	35	1,2
K1459.16321	steel	LH thread	32	32	16	16	M16	1	32	108	89	45	40	1,2
K1459.20401	steel	LH thread	40	40	20	20	M20	1	40	134	109	55	50	1,5
K1459.10612	stainless steel A2	RH thread	12	12	6	6	M6	0,5	12	44	37	20	15	0,8
K1459.10816	stainless steel A2	RH thread	16	16	8	8	M8	0,5	16	57	47	25	20	0,8
K1459.11020	stainless steel A2	RH thread	20	20	10	10	M10	0,5	20	69	57	30	25	0,8
K1459.11224	stainless steel A2	RH thread	24	24	12	12	M12	0,5	24	82	68	35	30	0,8
K1459.11428	stainless steel A2	RH thread	27	27	14	14	M14	1	28	94	78	40	35	1,2
K1459.11632	stainless steel A2	RH thread	32	32	16	16	M16	1	32	108	89	45	40	1,2
K1459.12040	stainless steel A2	RH thread	40	40	20	20	M20	1	40	134	109	55	50	1,5
K1459.106121	stainless steel A2	LH thread	12	12	6	6	M6	0,5	12	44	37	20	15	0,8
K1459.108161	stainless steel A2	LH thread	16	16	8	8	M8	0,5	16	57	47	25	20	0,8
K1459.110201	stainless steel A2	LH thread	20	20	10	10	M10	0,5	20	69	57	30	25	0,8
K1459.114281	stainless steel A2	LH thread	27	27	14	14	M14	1	28	94	78	40	35	1,2
K1459.116321	stainless steel A2	LH thread	32	32	16	16	M16	1	32	108	89	45	40	1,2
K1459.120401	stainless steel A2	LH thread	40	40	20	20	M20	1	40	134	109	55	50	1,5
