K0713Ball studs for ball joints DIN 71803 |
go back |
|
|
DescriptionMaterial:Steel.Version:Trivalent passivated.Note:The ball studs are spare parts for DIN 71802 ball joints.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

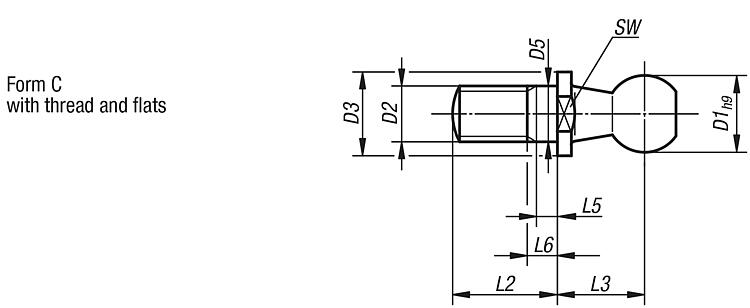

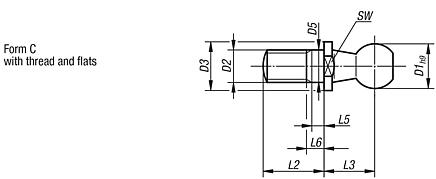

Drawings (total overview) |
|
| Order No. | Form | D1 | D2 | D3 | D5 | L2 | L3 | L5
min. | L6
max. | SW | CAD | Acc. | Price | Order |
|---|
| K0713.0805 | C | 8 | M5 | 8 | 5 | 10,2 | 9 | 1,2 | 4 | 7 |  | | 0.00 € | | | K0713.1006 | C | 10 | M6 | 10 | 6 | 12,5 | 11 | 1,2 | 4 | 8 | | | 0.00 € | | | K0713.1308 | C | 13 | M8 | 13 | 8 | 16,5 | 13 | 1,5 | 5,3 | 11 | | | 0.00 € | | | K0713.1610 | C | 16 | M10 | 16 | 10 | 20 | 16 | 2,5 | 7,3 | 13 | | | 0.00 € | | | K0713.1612 | C | 16 | M12 | 16 | 12 | 20 | 16 | 2,5 | 7,3 | 13 | | | 0.00 € | | | K0713.1914 | C | 19 | M14x1,5 | 19 | 14 | 28 | 20 | 5 | 10,8 | 16 | | | 0.00 € | |
|
