Levelling feet steel or stainless steel Form A

go back

Products
- Operating parts | standard elements
  - Swivel feet, levelling feet
    - Levelling feet steel or stainless steel
      - Levelling feet steel or stainless steel Form A

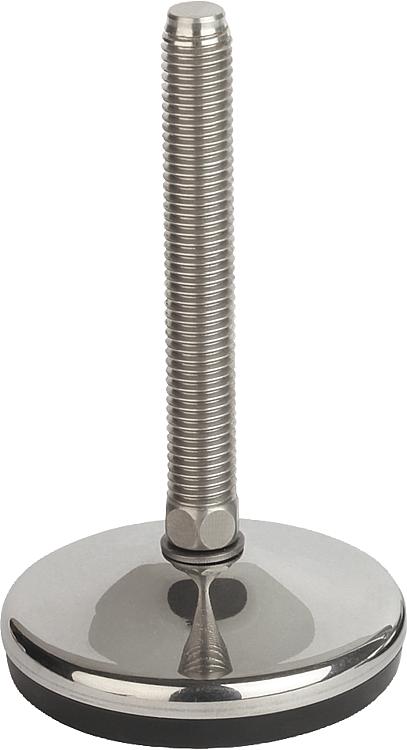

Item description/product images

DescriptionMaterial:Foot plate and threaded spindle steel or stainless steel.
Rubber support (NBR) 80 Shore.Version:Foot plate and threaded spindle electro zinc-plated steel.
Foot plate polished stainless steel.
Threaded spindle bright stainless steel.
Rubber support, vulcanised, black.

Note:Levelling feet steel or stainless steel with pivoting threaded spindle and rubber base. The solid rubber base is permanently vulcanised to the sheet metal plate. The rubber base has an excellent surface grip. It is sound damping and impedes transmission of vibrations and impacts to the floor.

The load values specified in the table are based on a test series, in which a static load was applied perpendicular to the plates through the centre of the spindle. Radially acting forces such as those produced by vibrations or other shaking effects, affect the load rating and are not taken into account for the specified values.

For stainless steel feet from spindle size M16, the wrench sizes apply across two flats.

Supplied with matching nut.On request:

Threaded spindle stainless steel 1.4401.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0739_A Levelling feet steel or stainless steel Form A

150 kB

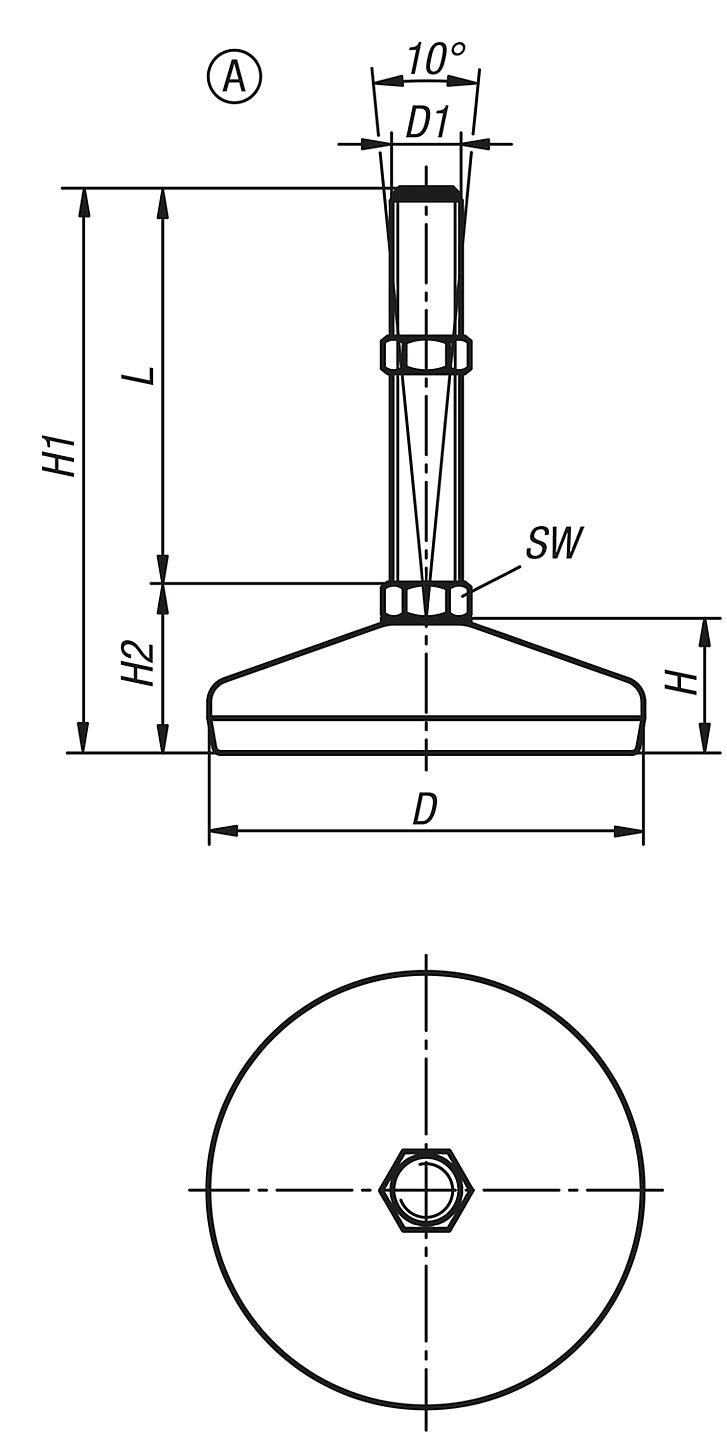

Drawings

Item selection/filter

Order No.	Form	Main material	D	D1	H	H1	H2	SW	L	Load rating max. kN (static load only)	Price
K0739.1105010X100	A	steel	50	M10	19	129	29	14	100	4	on request
K0739.1105010X50	A	steel	50	M10	19	79	29	14	50	4	on request
K0739.1105012X100	A	steel	50	M12	19	129	29	14	100	4	on request
K0739.1105012X150	A	steel	50	M12	19	179	29	14	150	4	on request
K0739.1105012X50	A	steel	50	M12	19	79	29	14	50	4	on request
K0739.1105014X100	A	steel	50	M14	19	129	29	14	100	4	on request
K0739.1105014X150	A	steel	50	M14	19	179	29	14	150	4	on request
K0739.1105014X50	A	steel	50	M14	19	79	29	14	50	4	on request
K0739.1105016X100	A	steel	50	M16	19	129	29	16	100	4	on request
K0739.1105016X150	A	steel	50	M16	19	179	29	16	150	4	on request
K0739.1105016X200	A	steel	50	M16	19	229	29	16	200	4	on request
K0739.1105016X75	A	steel	50	M16	19	104	29	16	75	4	on request
K0739.1106010X100	A	steel	60	M10	22	132	32	14	100	7	on request
K0739.1106010X50	A	steel	60	M10	22	82	32	14	50	7	on request
K0739.1106012X100	A	steel	60	M12	22	132	32	14	100	7	on request
K0739.1106012X150	A	steel	60	M12	22	182	32	14	150	7	on request
K0739.1106012X50	A	steel	60	M12	22	82	32	14	50	7	on request
K0739.1106014X100	A	steel	60	M14	22	132	32	14	100	7	on request
K0739.1106014X150	A	steel	60	M14	22	182	32	14	150	7	on request
K0739.1106014X50	A	steel	60	M14	22	82	32	14	50	7	on request
K0739.1106016X100	A	steel	60	M16	22	132	32	16	100	7	on request
K0739.1106016X150	A	steel	60	M16	22	182	32	16	150	7	on request
K0739.1106016X200	A	steel	60	M16	22	232	32	16	200	7	on request
K0739.1106016X75	A	steel	60	M16	22	108	32	16	75	7	on request
K0739.1106020X100	A	steel	60	M20	22	133	33	20	100	7	on request
K0739.1106020X150	A	steel	60	M20	22	183	33	20	150	7	on request
K0739.1106020X200	A	steel	60	M20	22	233	33	20	200	7	on request
K0739.1106020X250	A	steel	60	M20	22	283	33	20	250	7	on request
K0739.1106020X75	A	steel	60	M20	22	108	33	20	75	7	on request
K0739.1108010X100	A	steel	80	M10	25	135	35	14	100	10	on request
K0739.1108010X50	A	steel	80	M10	25	85	35	14	50	10	on request
K0739.1108012X100	A	steel	80	M12	25	135	35	14	100	10	on request
K0739.1108012X150	A	steel	80	M12	25	185	35	14	150	10	on request
K0739.1108012X50	A	steel	80	M12	25	85	35	14	50	10	on request
K0739.1108014X100	A	steel	80	M14	25	135	35	14	100	10	on request
K0739.1108014X150	A	steel	80	M14	25	185	35	14	150	10	on request
K0739.1108014X50	A	steel	80	M14	25	85	35	14	50	10	on request
K0739.1108016X100	A	steel	80	M16	25	135	35	16	100	10	on request
K0739.1108016X150	A	steel	80	M16	25	185	35	16	150	10	on request
K0739.1108016X200	A	steel	80	M16	25	235	35	16	200	10	on request
K0739.1108016X75	A	steel	80	M16	25	110	35	16	75	10	on request
K0739.1108020X100	A	steel	80	M20	25	136	36	20	100	10	on request
K0739.1108020X150	A	steel	80	M20	25	186	36	20	150	10	on request
K0739.1108020X200	A	steel	80	M20	25	236	36	20	200	10	on request
K0739.1108020X250	A	steel	80	M20	25	286	36	20	250	10	on request
K0739.1108020X75	A	steel	80	M20	25	111	36	20	75	10	on request
K0739.1108024X100	A	steel	80	M24	25	135	36	24	100	10	on request
K0739.1108024X150	A	steel	80	M24	25	186	36	24	150	10	on request
K0739.1108024X200	A	steel	80	M24	25	236	36	24	200	10	on request
K0739.1108024X75	A	steel	80	M24	25	111	36	24	75	10	on request
K0739.1110016X100	A	steel	100	M16	28	137,5	37,5	16	100	15	on request
K0739.1110016X150	A	steel	100	M16	28	187,5	37,5	16	150	15	on request
K0739.1110016X200	A	steel	100	M16	28	237,5	37,5	16	200	15	on request
K0739.1110016X75	A	steel	100	M16	28	112,5	37,5	16	75	15	on request
K0739.1110020X100	A	steel	100	M20	28	138,5	38,5	20	100	15	on request
K0739.1110020X150	A	steel	100	M20	28	188,5	38,5	20	150	15	on request
K0739.1110020X200	A	steel	100	M20	28	238,5	38,5	20	200	15	on request
K0739.1110020X250	A	steel	100	M20	28	288,5	38,5	20	250	15	on request
K0739.1110020X75	A	steel	100	M20	28	113,5	38,5	20	75	15	on request
K0739.1110024X100	A	steel	100	M24	28	138,5	38,5	24	100	15	on request
K0739.1110024X150	A	steel	100	M24	28	188,5	38,5	24	150	15	on request
K0739.1110024X200	A	steel	100	M24	28	238,5	38,5	24	200	15	on request
K0739.1110024X250	A	steel	100	M24	28	288,5	38,5	24	250	15	on request
K0739.1112016X100	A	steel	120	M16	32	141,5	41,5	16	100	30	on request
K0739.1112016X150	A	steel	120	M16	32	191,5	41,5	16	150	30	on request
K0739.1112016X200	A	steel	120	M16	32	241,5	41,5	16	200	30	on request
K0739.1112016X75	A	steel	120	M16	32	116,5	41,5	16	75	30	on request
K0739.1112020X100	A	steel	120	M20	32	142,5	42,5	20	100	30	on request
K0739.1112020X150	A	steel	120	M20	32	192,5	42,5	20	150	30	on request
K0739.1112020X200	A	steel	120	M20	32	242,5	42,5	20	200	30	on request
K0739.1112020X250	A	steel	120	M20	32	292,5	42,5	20	250	30	on request
K0739.1112020X75	A	steel	120	M20	32	117,5	42,5	20	75	30	on request
K0739.1112024X100	A	steel	120	M24	32	142,5	42,5	24	100	30	on request
K0739.1112024X150	A	steel	120	M24	32	192,5	42,5	24	150	30	on request
K0739.1112024X200	A	steel	120	M24	32	242,5	42,5	24	200	30	on request
K0739.1112024X250	A	steel	120	M24	32	292,5	42,5	24	250	30	on request
K0739.1112030X100	A	steel	120	M30	32	143,5	43,5	30	100	30	on request
K0739.1112030X150	A	steel	120	M30	32	193,5	43,5	30	150	30	on request
K0739.1112030X200	A	steel	120	M30	32	243,5	43,5	30	200	30	on request
K0739.1205010X100	A	stainless steel	50	M10	19	129	29	14	100	4	on request
K0739.1205010X125	A	stainless steel	50	M10	19	154	29	14	125	4	on request
K0739.1205010X50	A	stainless steel	50	M10	19	79	29	14	50	4	on request
K0739.1205010X75	A	stainless steel	50	M10	19	104	29	14	75	4	on request
K0739.1205012X100	A	stainless steel	50	M12	19	129	29	14	100	4	on request
K0739.1205012X125	A	stainless steel	50	M12	19	154	29	14	125	4	on request
K0739.1205012X150	A	stainless steel	50	M12	19	179	29	14	150	4	on request
K0739.1205012X50	A	stainless steel	50	M12	19	79	29	14	50	4	on request
K0739.1205012X75	A	stainless steel	50	M12	19	104	29	14	75	4	on request
K0739.1205014X100	A	stainless steel	50	M14	19	129	29	14	100	4	on request
K0739.1205014X125	A	stainless steel	50	M14	19	154	29	14	125	4	on request
K0739.1205014X150	A	stainless steel	50	M14	19	179	29	14	150	4	on request
K0739.1205014X175	A	stainless steel	50	M14	19	204	29	14	175	4	on request
K0739.1205014X75	A	stainless steel	50	M14	19	104	29	14	75	4	on request
K0739.1205016X100	A	stainless steel	50	M16	19	132	32	13	100	4	on request
K0739.1205016X125	A	stainless steel	50	M16	19	157	32	13	125	4	on request
K0739.1205016X150	A	stainless steel	50	M16	19	182	32	13	150	4	on request
K0739.1205016X175	A	stainless steel	50	M16	19	207	32	13	175	4	on request
K0739.1205016X200	A	stainless steel	50	M16	19	232	32	13	200	4	on request
K0739.1205016X75	A	stainless steel	50	M16	19	107	32	13	75	4	on request
K0739.1206010X100	A	stainless steel	60	M10	22	132	32	14	100	7	on request
K0739.1206010X125	A	stainless steel	60	M10	22	157	32	14	125	7	on request
K0739.1206010X50	A	stainless steel	60	M10	22	82	32	14	50	7	on request
K0739.1206010X75	A	stainless steel	60	M10	22	107	32	14	75	7	on request
K0739.1206012X100	A	stainless steel	60	M12	22	132	32	14	100	7	on request
K0739.1206012X125	A	stainless steel	60	M12	22	157	32	14	125	7	on request
K0739.1206012X150	A	stainless steel	60	M12	22	182	32	14	150	7	on request
K0739.1206012X50	A	stainless steel	60	M12	22	82	32	14	50	7	on request
K0739.1206012X75	A	stainless steel	60	M12	22	107	32	14	75	7	on request
K0739.1206014X100	A	stainless steel	60	M14	22	132	32	14	100	7	on request
K0739.1206014X125	A	stainless steel	60	M14	22	157	32	14	125	7	on request
K0739.1206014X150	A	stainless steel	60	M14	22	182	32	14	150	7	on request
K0739.1206014X175	A	stainless steel	60	M14	22	207	32	14	175	7	on request
K0739.1206014X75	A	stainless steel	60	M14	22	107	32	14	75	7	on request
K0739.1206016X100	A	stainless steel	60	M16	22	135	35	13	100	7	on request
K0739.1206016X125	A	stainless steel	60	M16	22	160	35	13	125	7	on request
K0739.1206016X150	A	stainless steel	60	M16	22	185	35	13	150	7	on request
K0739.1206016X175	A	stainless steel	60	M16	22	210	35	13	175	7	on request
K0739.1206016X200	A	stainless steel	60	M16	22	235	35	13	200	7	on request
K0739.1206016X75	A	stainless steel	60	M16	22	110	35	13	75	7	on request
K0739.1206020X100	A	stainless steel	60	M20	22	135	35	17	100	7	on request
K0739.1206020X125	A	stainless steel	60	M20	22	160	35	17	125	7	on request
K0739.1206020X150	A	stainless steel	60	M20	22	185	35	17	150	7	on request
K0739.1206020X175	A	stainless steel	60	M20	22	210	35	17	175	7	on request
K0739.1206020X200	A	stainless steel	60	M20	22	235	35	17	200	7	on request
K0739.1206020X225	A	stainless steel	60	M20	22	260	35	17	225	7	on request
K0739.1206020X250	A	stainless steel	60	M20	22	285	35	17	250	7	on request
K0739.1206020X75	A	stainless steel	60	M20	22	110	35	17	75	7	on request
K0739.1208010X100	A	stainless steel	80	M10	25	135	35	14	100	10	on request
K0739.1208010X125	A	stainless steel	80	M10	25	160	35	14	125	10	on request
K0739.1208010X50	A	stainless steel	80	M10	25	85	35	14	50	10	on request
K0739.1208010X75	A	stainless steel	80	M10	25	110	35	14	75	10	on request
K0739.1208012X100	A	stainless steel	80	M12	25	135	35	14	100	10	on request
K0739.1208012X125	A	stainless steel	80	M12	25	160	35	14	125	10	on request
K0739.1208012X150	A	stainless steel	80	M12	25	185	35	14	150	10	on request
K0739.1208012X50	A	stainless steel	80	M12	25	85	35	14	50	10	on request
K0739.1208012X75	A	stainless steel	80	M12	25	110	35	14	75	10	on request
K0739.1208014X100	A	stainless steel	80	M14	25	135	35	14	100	10	on request
K0739.1208014X125	A	stainless steel	80	M14	25	160	35	14	125	10	on request
K0739.1208014X150	A	stainless steel	80	M14	25	185	35	14	150	10	on request
K0739.1208014X175	A	stainless steel	80	M14	25	210	35	14	175	10	on request
K0739.1208014X75	A	stainless steel	80	M14	25	110	35	14	75	10	on request
K0739.1208016X100	A	stainless steel	80	M16	25	135	35	13	100	10	on request
K0739.1208016X125	A	stainless steel	80	M16	25	160	35	13	125	10	on request
K0739.1208016X150	A	stainless steel	80	M16	25	185	35	13	150	10	on request
K0739.1208016X175	A	stainless steel	80	M16	25	210	35	13	175	10	on request
K0739.1208016X200	A	stainless steel	80	M16	25	238	38	17	200	10	on request
K0739.1208016X75	A	stainless steel	80	M16	25	110	35	13	75	10	on request
K0739.1208020X100	A	stainless steel	80	M20	25	138	38	17	100	10	on request
K0739.1208020X125	A	stainless steel	80	M20	25	163	38	17	125	10	on request
K0739.1208020X150	A	stainless steel	80	M20	25	188	38	17	150	10	on request
K0739.1208020X175	A	stainless steel	80	M20	25	213	38	17	175	10	on request
K0739.1208020X200	A	stainless steel	80	M20	25	238	38	17	200	10	on request
K0739.1208020X225	A	stainless steel	80	M20	25	263	38	17	225	10	on request
K0739.1208020X250	A	stainless steel	80	M20	25	288	38	17	250	10	on request
K0739.1208020X75	A	stainless steel	80	M20	25	113	38	17	75	10	on request
K0739.1208024X100	A	stainless steel	80	M24	25	140	40	20	100	10	on request
K0739.1208024X125	A	stainless steel	80	M24	25	165	40	20	125	10	on request
K0739.1208024X150	A	stainless steel	80	M24	25	190	40	20	150	10	on request
K0739.1208024X175	A	stainless steel	80	M24	25	215	40	20	175	10	on request
K0739.1208024X200	A	stainless steel	80	M24	25	240	40	20	200	10	on request
K0739.1208024X225	A	stainless steel	80	M24	25	265	40	20	225	10	on request
K0739.1208024X250	A	stainless steel	80	M24	25	290	40	20	250	10	on request
K0739.1208024X75	A	stainless steel	80	M24	25	115	40	20	75	10	on request
K0739.1210016X100	A	stainless steel	100	M16	28	142	42	13	100	15	on request
K0739.1210016X125	A	stainless steel	100	M16	28	167	42	13	125	15	on request
K0739.1210016X150	A	stainless steel	100	M16	28	192	42	13	150	15	on request
K0739.1210016X175	A	stainless steel	100	M16	28	217	42	13	175	15	on request
K0739.1210016X200	A	stainless steel	100	M16	28	242	42	13	200	15	on request
K0739.1210016X75	A	stainless steel	100	M16	28	117	42	13	75	15	on request
K0739.1210020X100	A	stainless steel	100	M20	30	143	43	17	100	15	on request
K0739.1210020X125	A	stainless steel	100	M20	30	168	43	17	125	15	on request
K0739.1210020X150	A	stainless steel	100	M20	30	193	43	17	150	15	on request
K0739.1210020X175	A	stainless steel	100	M20	30	218	43	17	175	15	on request
K0739.1210020X200	A	stainless steel	100	M20	30	243	43	17	200	15	on request
K0739.1210020X225	A	stainless steel	100	M20	28	267	42	17	225	15	on request
K0739.1210020X250	A	stainless steel	100	M20	28	292	42	17	250	15	on request
K0739.1210020X75	A	stainless steel	100	M20	30	118	43	17	75	15	on request
K0739.1210024X100	A	stainless steel	100	M24	30	144	44	20	100	15	on request
K0739.1210024X125	A	stainless steel	100	M24	30	169	44	20	125	15	on request
K0739.1210024X150	A	stainless steel	100	M24	30	194	44	20	150	15	on request
K0739.1210024X175	A	stainless steel	100	M24	30	219	44	20	175	15	on request
K0739.1210024X200	A	stainless steel	100	M24	30	244	44	20	200	15	on request
K0739.1210024X225	A	stainless steel	100	M24	28	269	44	20	225	15	on request
K0739.1210024X250	A	stainless steel	100	M24	28	294	44	20	250	15	on request
K0739.1212016X100	A	stainless steel	120	M16	32	147	47	13	100	30	on request
K0739.1212016X125	A	stainless steel	120	M16	32	172	47	13	125	30	on request
K0739.1212016X150	A	stainless steel	120	M16	32	197	47	13	150	30	on request
K0739.1212016X175	A	stainless steel	120	M16	32	222	47	13	175	30	on request
K0739.1212016X200	A	stainless steel	120	M16	32	247	47	13	200	30	on request
K0739.1212016X75	A	stainless steel	120	M16	32	122	47	13	75	30	on request
K0739.1212020X100	A	stainless steel	120	M20	32	143	43	17	100	30	on request
K0739.1212020X125	A	stainless steel	120	M20	32	172	47	17	125	30	on request
K0739.1212020X150	A	stainless steel	120	M20	32	192	42	17	150	30	on request
K0739.1212020X175	A	stainless steel	120	M20	32	222	47	17	175	30	on request
K0739.1212020X200	A	stainless steel	120	M20	32	242	42	17	200	30	on request
K0739.1212020X225	A	stainless steel	120	M20	32	272	47	17	225	30	on request
K0739.1212020X250	A	stainless steel	120	M20	32	297	47	17	250	30	on request
K0739.1212020X75	A	stainless steel	120	M20	32	122	47	17	75	30	on request
K0739.1212024X100	A	stainless steel	120	M24	32	144	44	20	100	30	on request
K0739.1212024X125	A	stainless steel	120	M24	32	174	49	20	125	30	on request
K0739.1212024X150	A	stainless steel	120	M24	32	194	44	20	150	30	on request
K0739.1212024X175	A	stainless steel	120	M24	32	224	49	20	175	30	on request
K0739.1212024X200	A	stainless steel	120	M24	32	244	44	20	200	30	on request
K0739.1212024X225	A	stainless steel	120	M24	32	274	49	20	225	30	on request
K0739.1212024X250	A	stainless steel	120	M24	32	299	49	20	250	30	on request
K0739.1212030X100	A	stainless steel	120	M30	32	147	47	26	100	30	on request
K0739.1212030X150	A	stainless steel	120	M30	32	196	46	26	150	30	on request
K0739.1212030X200	A	stainless steel	120	M30	32	246	46	26	200	30	on request
